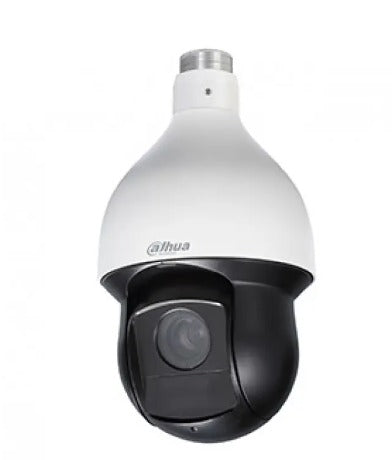

DAHUA IP 2MP CAMERA DH-SD49225XA-HNR-S2 WIZNSENSE PTZ 4.8 - 120mm MOTORIZED LENNS- KUN TRADERS

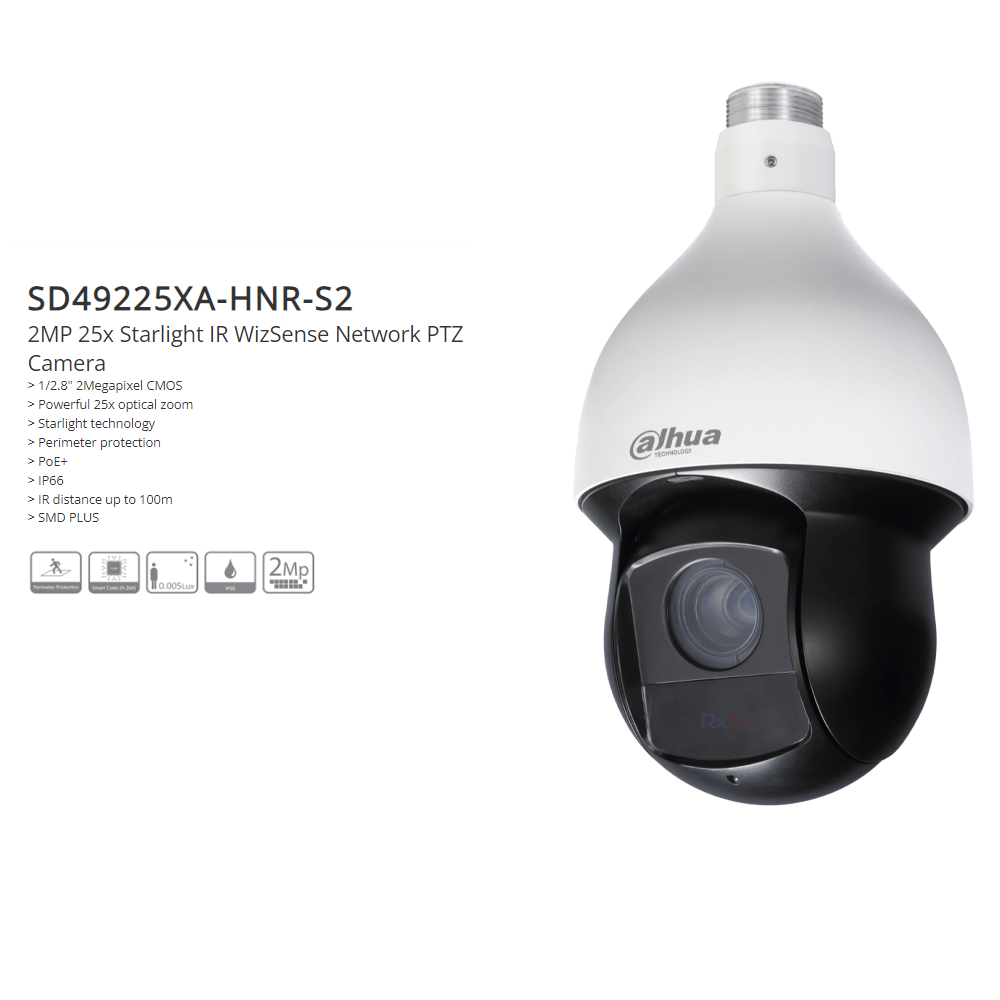

SD49225XA-HNR-S2

2MP 25x Starlight IR WizSense Network PTZ Camera

DETAIL DESCRIPTION:

Camera Features

1. Image Sensor: 1/2.8" CMOS
2. Pixel: 2 MP
3. Max Resolution: 1920x1080
4. Electronic Shutter Speed: 1/1s-1/30000s
5. Scanning System: Progressive
6. Min Illumination: Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on)
7. Illumination Distance: 100m (328.08ft)
8. Zoom: 25x optical zoom
9. Focus Control: Auto, Semi-Auto, Manual
10. Close Focus Distance: 0.1m-1.5m (0.33ft-4.92ft)

PTZ Features

1. Pan/Tilt Range: Pan: 0°-360°, Tilt: -15°-90°
2. Manual Control Speed: Pan: 0.1°-200°/s, Tilt: 0.1°-120°/s
3. Preset Speed: Pan: 240°/s, Tilt: 200°/s
4. Preset: 300
5. Tour: 8 (up to 32 presets per tour)
6. Pattern: 5
7. Scan: 5

Video Features

1. Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
2. Streaming Capability: 3 streams
3. Resolution: 1080p, 1.3M, 720p, D1, CIF
4. Frame Rate: Main stream: 1-50/60fps, Sub stream: 1-25/30fps
5. Bit Rate Control: CBR, VBR

Audio Features

1. Audio Compression: G.711a, G.711Mu, G.726, AAC, MPEG2-Layer2, G722.1
2. Audio Input: 1
3. Audio Output: 1

Network Features

1. Ethernet: RJ-45 (10/100 Base-T)
2. Protocol: HTTP, HTTPS, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, Qos, FTP, UPnP, ICMP, SNMP, SNMP v1/v2c/v3 (MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, RTMP, TCP

Management Features

1. User/Host: 20 (total bandwidth: 64MB)
2. Storage: Imou Cloud, FTP, Micro SD card (max. 512GB), NAS
3. Browser: IE7 and later versions, Chrome, Firefox, Safari
4. Management Software: Smart PSS, DSS, IVSS, Configtool, NVR, Smart Player, Imou Mobile Phone

Certifications

1. CE: EN55032/EN55024/EN50130-4
2. FCC: Part15 subpartB, ANSI C63.4-2014
3. UL: UL60950-1+CAN/CSA C22.2, No. 60950-1

Environmental Features

1. Operating Temperature: -40°C to +70°C (-40°F to +158°F)
2. Operating Humidity: ≤ 95%
3. Protection: IP66, TVS 6000V lightning proof, surge protection, voltage transient protection

Physical Features

1. Casing: Aluminum alloy ADC12
2. Dimensions: 269.9mm x Φ160mm (11.61" x Φ6.30")
3. Net Weight: 3kg (6.61lb)
4. Gross Weight: 4.2kg (9.26lb)
