DAHUA 2MP CAMERA 16 ORDINARY IR NWTWORK PTZ CAMERA SD-49216DB-HNY - KUN TRADERS
DAHUA 2MP CAMERA 16 ORDINARY IR NWTWORK PTZ CAMERA SD-49216DB-HNY - KUN TRADERS
Couldn't load pickup availability
SHORT DESCRIPTION:
SD49216DB-HNY

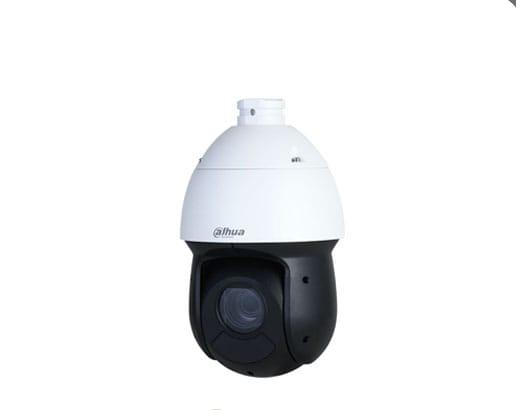

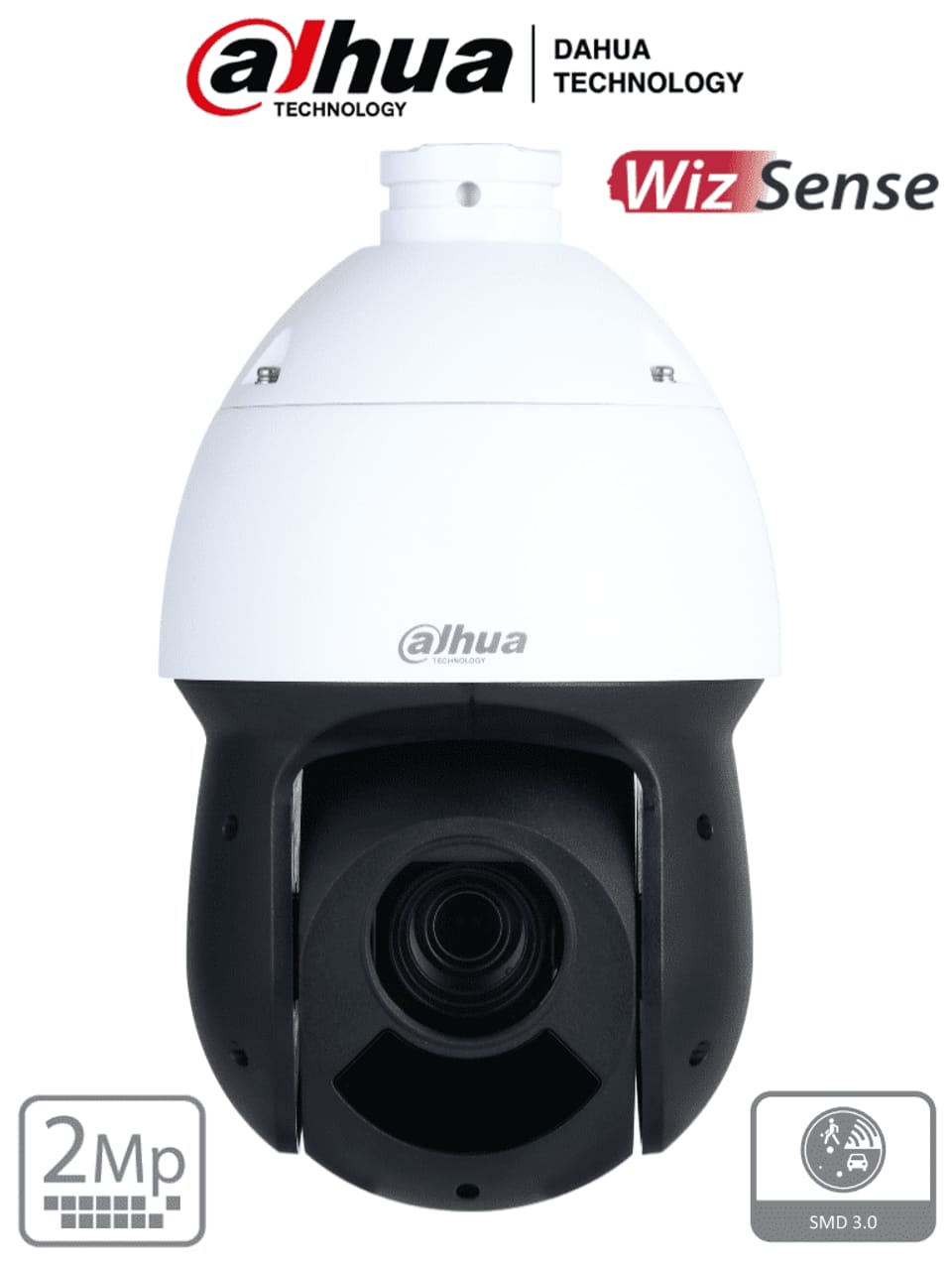

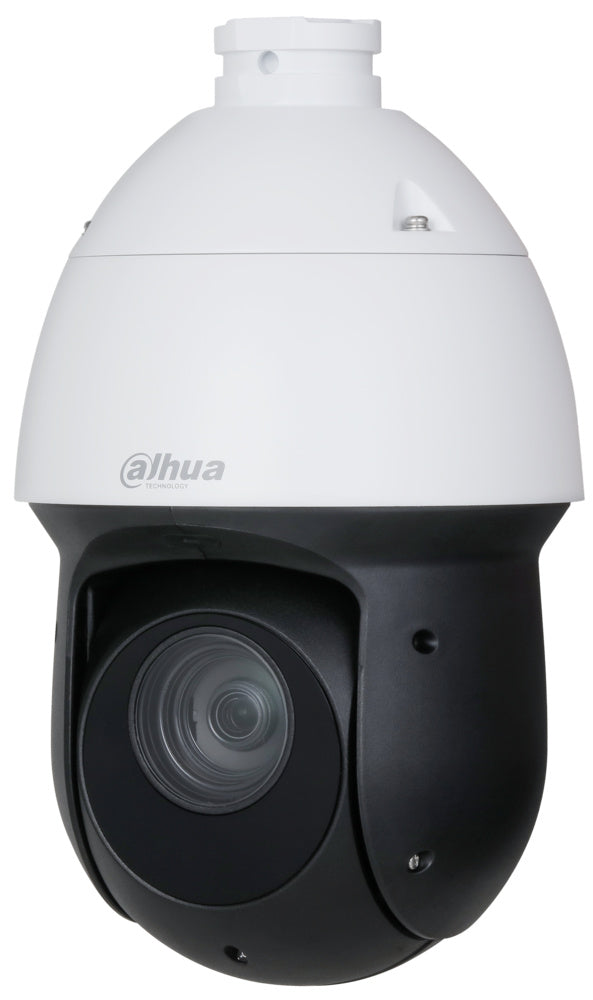

2MP 16x Starlight IR Network PTZ Camera
> 1/2.8" 2Megapixel STARVIS™ CMOS.
> 16× optical zoom.
> Starlight technology.
> Max. 25/30 fps@1080p.
> IR distance up to 100 m.
> H.265 encoding.
> Perimeter protection.
> Face Detection. Up to 8 faces captured at the same time.
DETAIL DESCRIPTION:
Camera
1. Image Sensor: 1/2.8" CMOS
2. Pixel: 2 MP
3. Max Resolution: 1920x1080
4. Electronic Shutter Speed: 1/1s-1/30,000s
5. Scanning System: Progressive
6. Min Illumination: Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on)
7. Illumination Distance: 100m (328.08ft) (IR)
8. Zoom: 16x optical zoom
9. Focus Control: Auto, semi-auto, manual
10. Close Focus Distance: 0.1m-2m (0.33ft-6.56ft)
PTZ
1. Pan/Tilt Range: Pan: 0°-360°, Tilt: -15°-90°
2. Manual Control Speed: Pan: 0.1°/s-80°/s, Tilt: 0.1°/s-80°/s
3. Preset Speed: Pan: 80°/s, Tilt: 80°/s
4. Preset: 300
5. Tour: 8 (up to 32 presets per tour)
6. Pattern: 5
7. Scan: 5
Video
1. Video Compression: H.264H, H.264B, Smart H.265+, H.265, MJPEG (Sub Stream)
2. Streaming Capability: 3 streams
3. Resolution: 1080p, 960p, 720p, D1, VGA, CIF
4. Frame Rate: Main stream: 1-25/30fps, Sub stream: 1-25/30fps
5. Bit Rate Control: CBR, VBR
Audio
1. Audio Compression: G.711a, G.711Mu, G.722.1, G.726, MPEG2-Layer2
2. Audio Input: 1 channel (LINE IN, bare wire)
3. Audio Output: 1 channel (LINE OUT, bare wire)
Network
1. Network Port: RJ-45 (10/100 Base-T)
2. Network Protocol: TCP, FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, IP Filter, SMB, HTTP, SSL, DHCP, SMTP, SNMP v1/v2c/v3 (MIB-2), QoS, RTSP, ARP
Interoperability
1. CGI, Dahua SDK, API, SDK, ONVIF (Profile S&G&T)
Storage
1. FTP, Micro SD card (512GB), NAS
Management Software
1. DSS Pro Mobile Client, iPhone, iPad, iOS, Android
Certifications
1. CE: EN55032/EN55024/EN50130-4, FCC: Part15 subpartB, ANSI C63.4-2014
Power
1. Power Supply: 12 VDC, 3 A (± 10%), PoE (802.3at)
2. Power Consumption: Basic: 12W, Max: 20W (IR light)
Environment
1. Operating Temperature: -40°C to +60°C (-40°F to +140°F)
2. Operating Humidity: ≤95%
3. Protection: IP66, TVS 6000V lightning proof, surge protection, voltage transient protection
Structure
1. Product Dimensions: 270.4mm × Φ160.0mm (10.65" × Φ6.30")
2. Net Weight: 2.4kg (5.29lb)
3. Gross Weight: 3.9kg (8.60lb)
