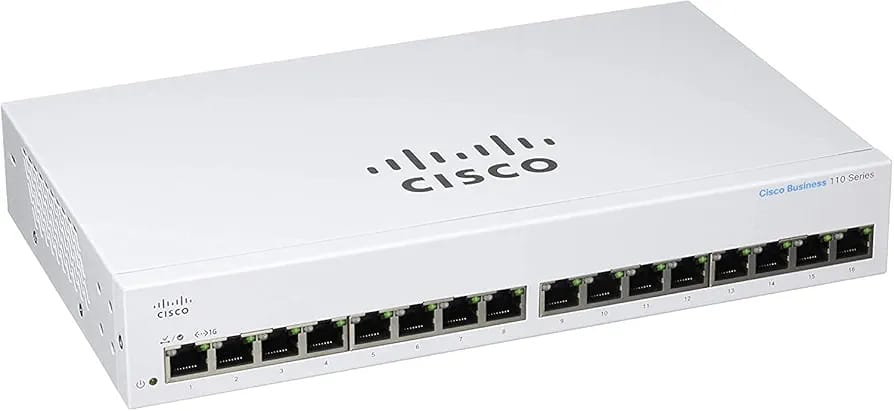

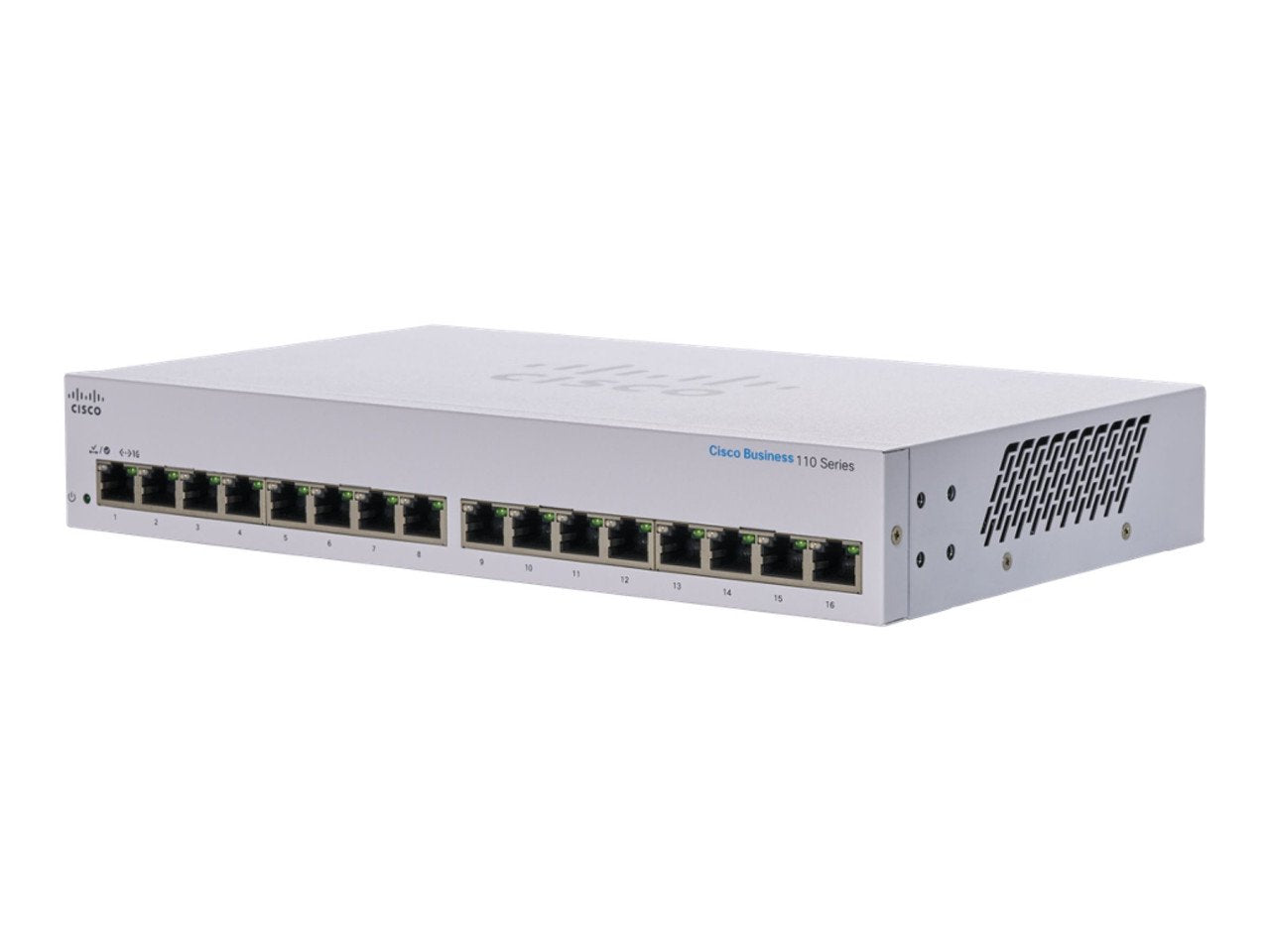

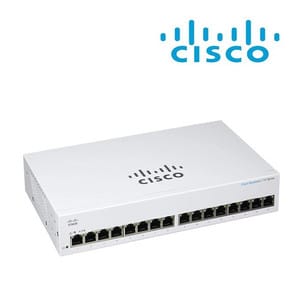

CISCO 110 SERIES 16 PORTS NON POE SWITCH MODEL CBS110-16T-EU - KUN TRADER

CISCO 110 SERIES 16 PORTS NON POE SWITCH MODEL CBS110-16T-EU - KUN TRADER

Rs.0.00 PKR
Rs.0.00 PKR
Sale Sold out
Shipping calculated at checkout.

SPECIFICATION:

  • Part Number: CBS110-16T-EU
  • Device type
  • Gigabit switch, 16 ports, 10/100/1000 Mbps, RJ-45, rack mount type, suitable for connection. Very high speed network system
  • Format & Standards
  • Format : Rack mount
  • Network Management Type : Unmanaged
  • Performance
  • Capacity in millions of packets per second (mpps) (64-byte packets) : 23.8 mpps
  • Switching capacity in gigabits per second (Gbps) : 32 Gbps
  • Ports & Interface
  • Primary Ports : 16 x RJ45
  • Primary Port Speed ​​: 10/100/1000Mbps
  • Data Transmission
  • Head-of-line (HOL) blocking HOL blocking prevention
  • MAC Address Table : 8K
  • Jumbo Frames : 9216 bytes
  • Quality of Service (QoS) : 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
  • Loop detection : Helps discover loops in the network to avoid broadcast storms
  • Cable diagnostics : Quickly identify and troubleshoot network cable faults and/or shorts
  • Media-dependent interface : Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
  • Standards : IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
  • Operation Systems
  • Flash : 16 MB for CBS110-16T, CBS110-16PP
  • CPU : 400 MHz ARM for CBS110-16T
  • CPU memory : 128 MB for CBS110-16T, CBS110-16PP
  • Power
  • 110-240VAC, 50-60 Hz, internal, universal
  • Details
  • Buffer Memory : 2 Mbit
  • LED : Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE,. *if present
  • Power : 110V=11.33W , 220V=11.53W
  • Dimensions & Weight
  • Dimensions : 279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
  • Weight : 0.97 kg (2.14 lb)
  • Environmental
  • Temperature : Operating temperature: 32° to 104°F (0° to 40°C)Storage temperature: -4° to 158°F (-20° to 70°C)
  • Humidity : Operating humidity: 10% to 90%, relative, noncondensingStorage humidity: 5% to 90%, relative, noncondensing
  • Packaging
  • Package Contents : Cisco Business 110 Series switchPower cord or adapterQuick start guideMounting kit
