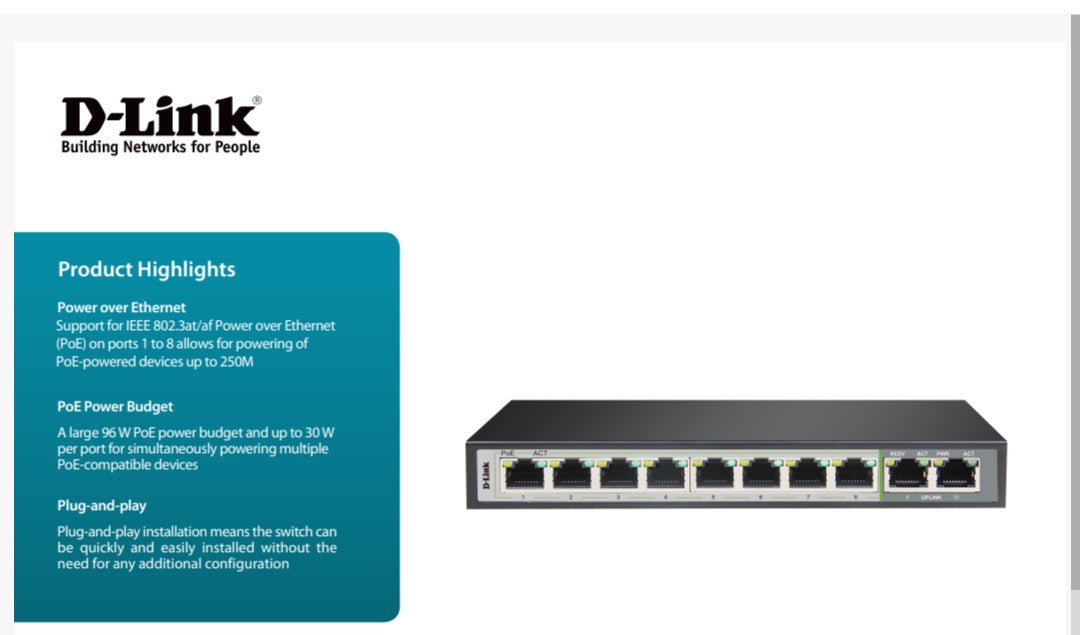

• 8 x Gigabit PoE+ Ports
• 2 x Gigabit Uplink Ports
• PoE+ support - up to 30W per port

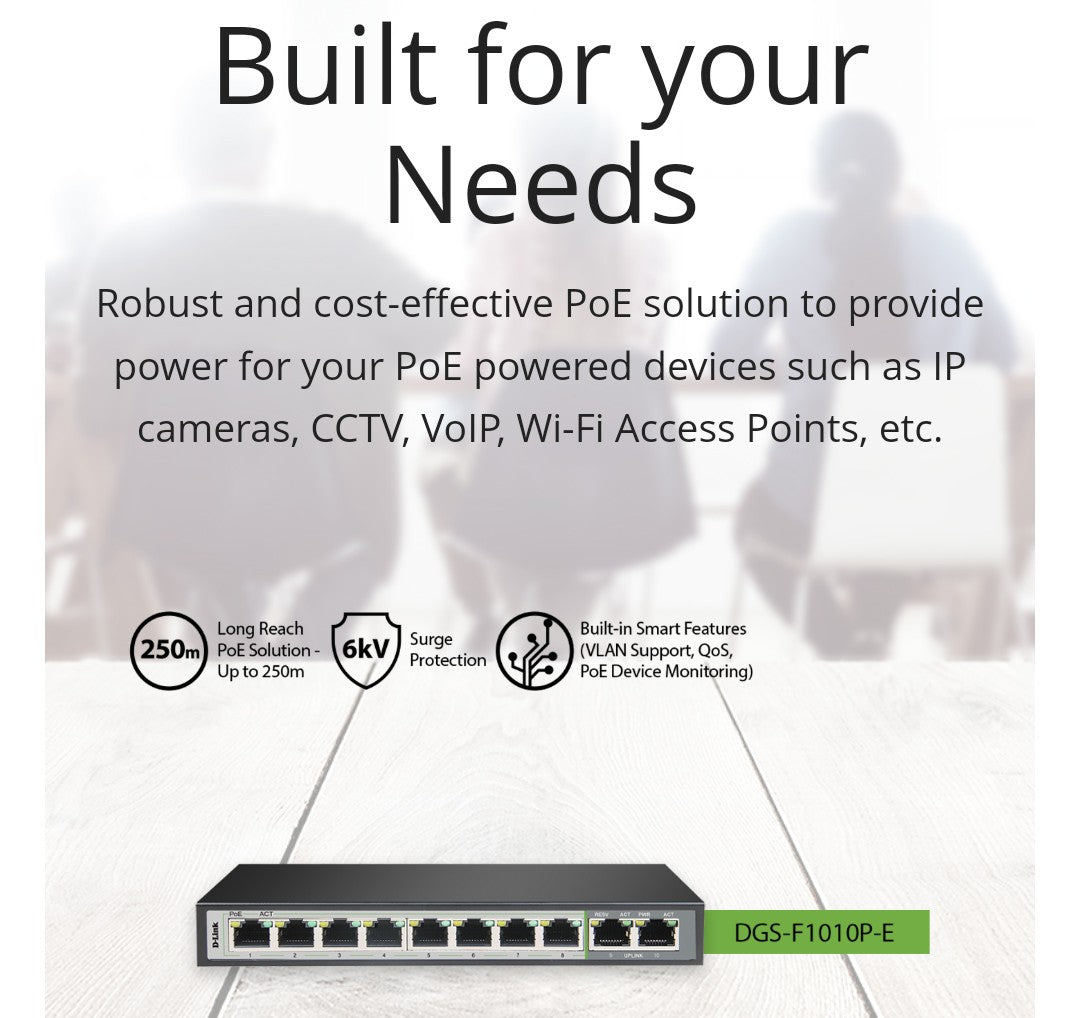

• Long Reach PoE support - up to 250m

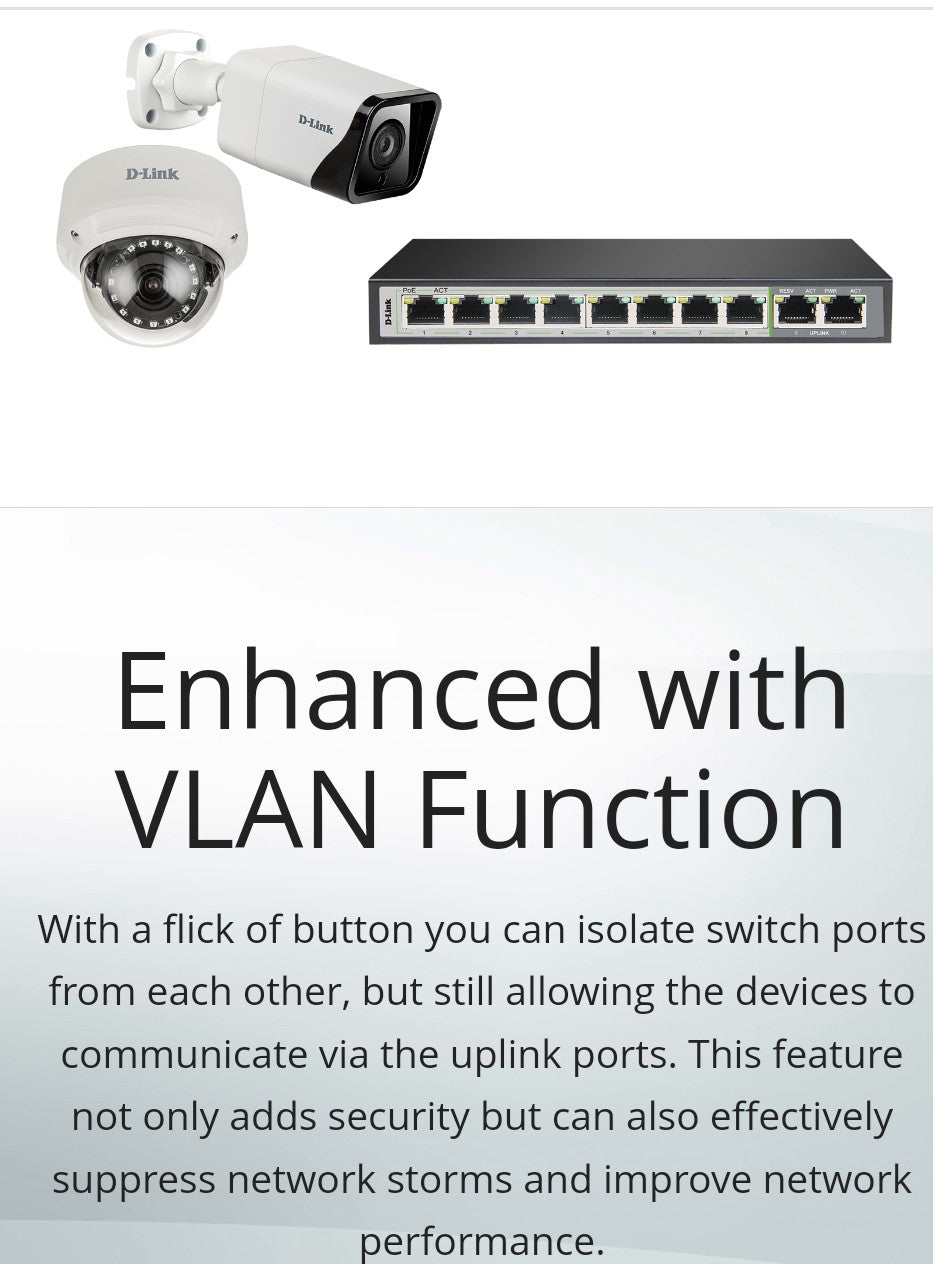

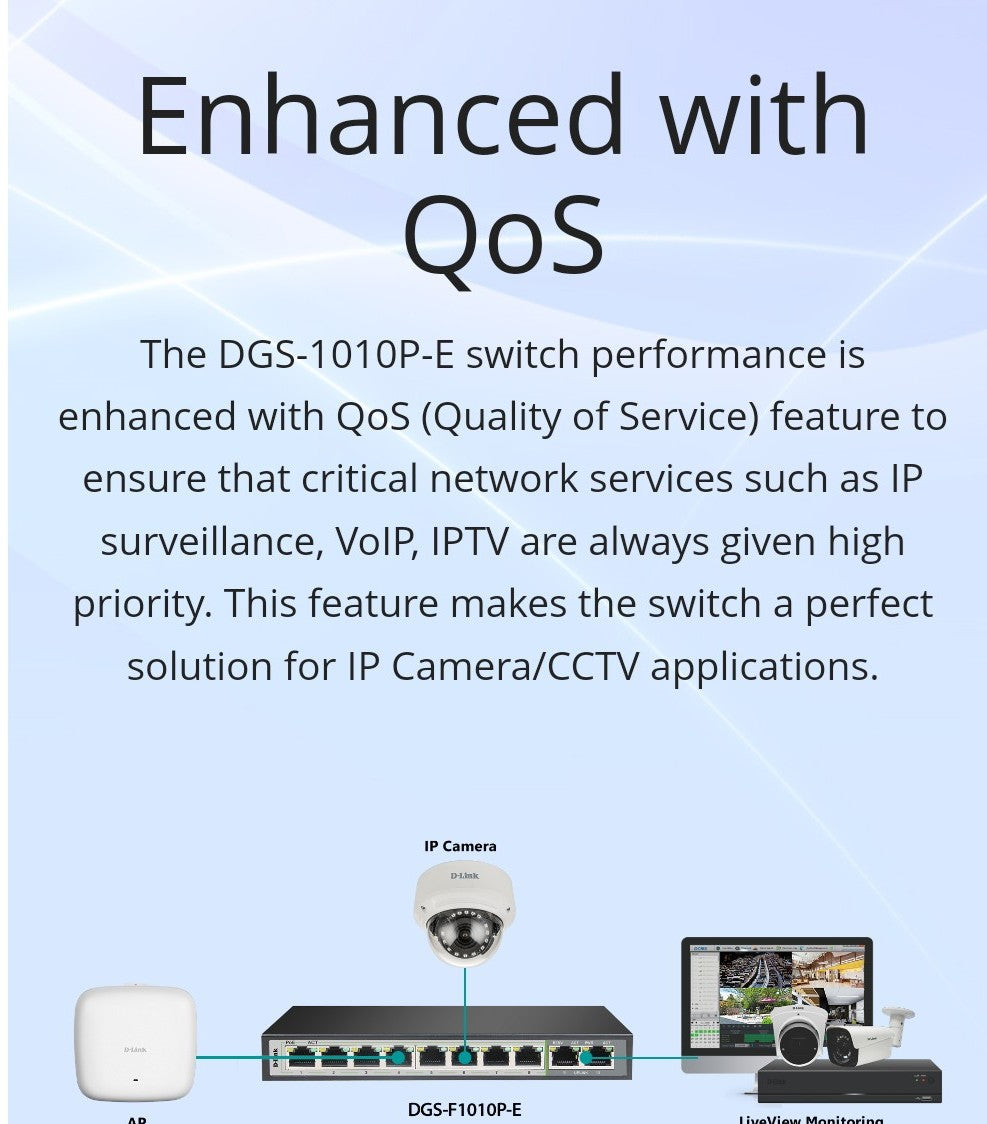

• Smart Features: Extend, VLAN, QoS and PoE Reset
• Lightning protection built-in (6kV)
• PoE Budget 96 Watts
• Plug & Play Installation

General Features

1. 10 x 10/100Mbps Fast Ethernet ports
2. 8 x PoE (Power over Ethernet) ports with 120W power budget
3. Unmanaged, plug-and-play design
4. Metal casing for durability
5. Weight: 1.9kg (4.2lbs)
6. Dimensions: 238 x 126 x 44mm (9.4 x 5 x 1.7 inches)

Performance Features

1. Fast Ethernet speed (10/100Mbps)
2. 2Gbps switching capacity
3. 2MB buffer memory
4. Store-and-forward switching architecture
5. Auto-negotiation for automatic speed and duplex adjustment

PoE Features

1. IEEE 802.3af compliant
2. 8 x PoE ports with up to 30W per port
3. Total PoE power budget: 120W
4. Supports PoE devices such as IP cameras, VoIP phones, and wireless access points

Management Features

1. Unmanaged switch
2. No configuration required
3. LED indicators for power, link, and activity

Security Features

1. Broadcast storm control
2. MAC address learning and aging
3. 802.1X authentication (not supported)

Environmental Features

1. Operating temperature: 0°C to 40°C (32°F to 104°F)
2. Storage temperature: -20°C to 70°C (-4°F to 158°F)
3. Humidity: 10% to 90% RH
4. Power consumption: 15W (max)

Certifications

1. IEEE 802.3, 802.3u
2. UL, CE, FCC certified

Package Contents

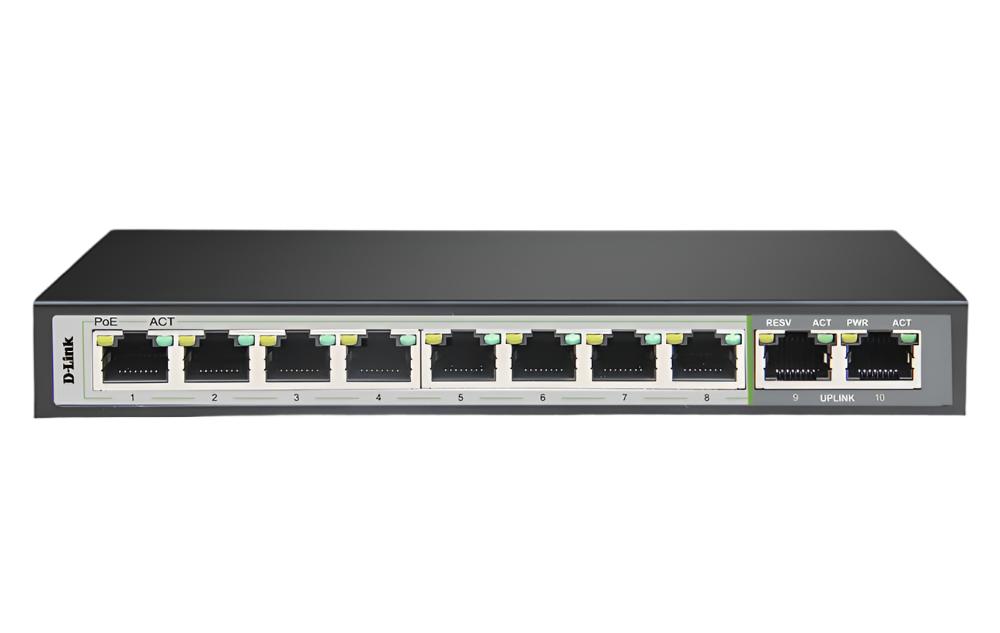

1. D-Link DGS-F1010P-E 10-Port PoE Fast Ethernet Switch
2. Power cord
3. Quick Installation Guide
4. CD-ROM with Manual

Key Benefits

1. Cost-effective PoE switch for small to medium-sized businesses
2. Easy installation and management
3. Reliable and efficient network connectivity
4. Compact desktop design

Applications

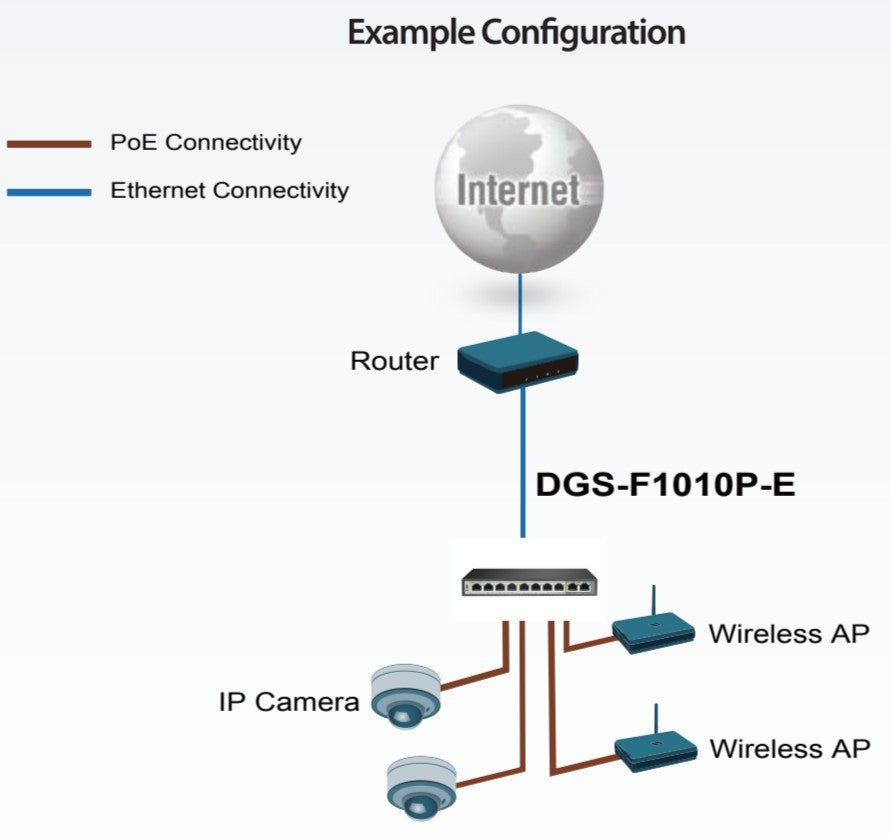

1. IP surveillance systems
2. VoIP phone systems
3. Wireless access points (WAPs) and bridges
4. Small office/home office (SOHO) networks

Technical Specifications

| Feature | Specification |
| --- | --- |
| Ports | 10 x 10/100Mbps |
| PoE Ports | 8 x PoE (120W) |
| Speed | 10/100Mbps (Fast Ethernet) |
| Switching Capacity | 2Gbps |
| Buffer Memory | 2MB |
| Power Consumption | 15W (max) |
| Dimensions | 238 x 126 x 44mm |
| Weight | 1.9kg (4.2lbs) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
