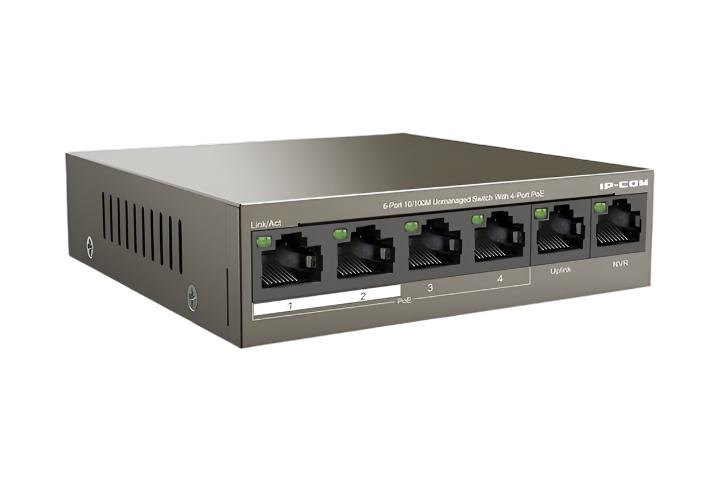

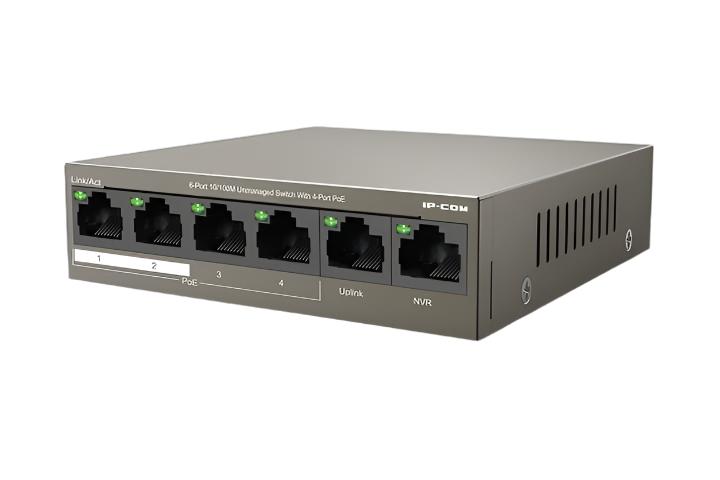

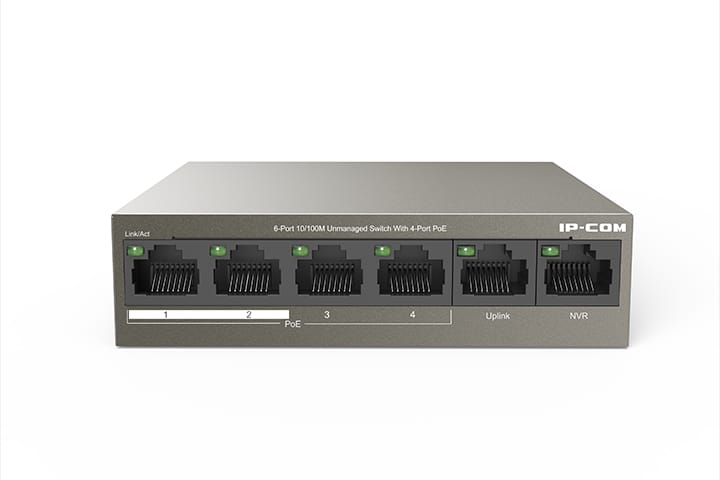

IP-COM F1106P-4-63W 6-PORT PoE UNMANAGED SWITCH - FAST ETHERNET, 63W POWER, 4 POE PORTS - KUN TRADER

IP-COM F1106P-4-63W 6-PORT PoE UNMANAGED SWITCH - FAST ETHERNET, 63W POWER, 4 POE PORTS - KUN TRADER

Rs.0.00 PKR
Rs.0.00 PKR
Sale Sold out
Shipping calculated at checkout.

FEATURES:

F1106P-4-63W

6-Port 10/100M Unmanaged Switch With 4-Port PoE

  • Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE802.3af/at standards
  • 4*10/100 Mbps Base-TX RJ45 ports for data transmission and power supply
  • 2*10/100 Mbps Base-TX RJ45 ports for data transmission
  • 1 K MAC address table and MAC address auto-learning
  • IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
  • 1.2 Gbps backplane bandwidth
  • Maximum power consumption of a single port:30W
  • Maximum power consumption of the switch: 58W
  • Supports extend mode and QoS function
  • Supports desktop and wall-mounting, plug and play

SPECIFICATIONS:



Hardware features
Standard&Protocol IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
Indicator 6 * Link/Ack LED indicators
1 * Power LED indicator
Interface 4 * 10/100 Mbps Base-TX RJ45 ports (Data/Power)
2 * 10/100 Mbps Base-TX RJ45 ports (Data)
Port Lightning Protection 6KV for uplink port
Store and forward Yes
Exchange Capacity 1.2 Gbps
Packet forwarding rate 1.34Mpps
MAC Address Table 1K
PoE supply management Port 1-4 support IEEE802.3at/af PoE standard
PoE through pin 1 2 4 5 +;3 6 7 8 -
Voltage input range AC: 100-240V～50/60Hz DC: 51V 1.25A
Dimensions ( W x D x H ) 100*100*26mm
Power Consumption In full configuration: 63W
PoE Max Power Supply: 58W
Port Features Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
Extend:Extend:ports 1 to 4 are isolated from each other,and the rate drops to 10Mbps，the maximum transmission distance can be 250 meters，but can communicate with ports 5，6 (uplink port) respectively.
Environment Operating Temperature: 0℃~40℃(32℉~104℉)
Storage Temperature: -40℃~70℃(-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
