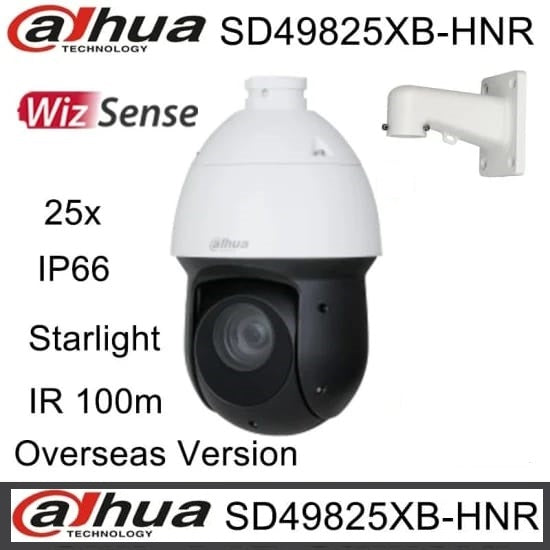

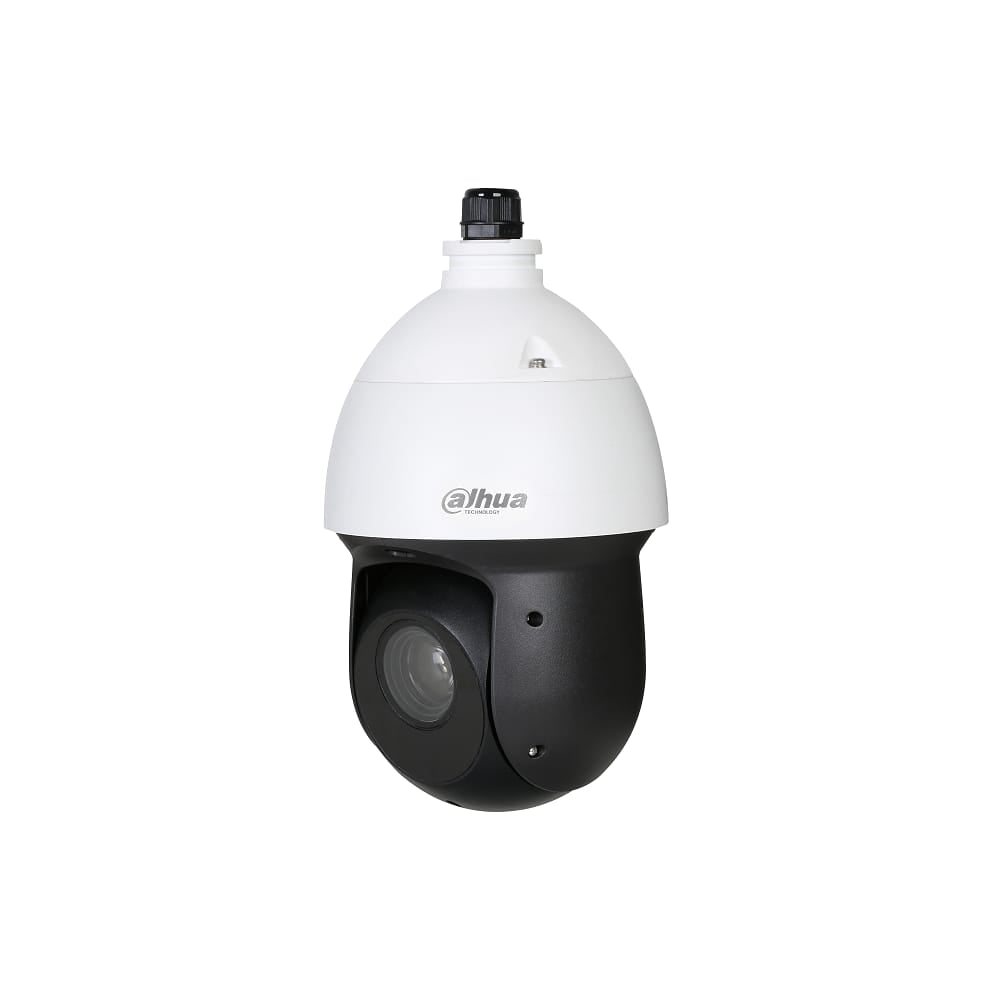

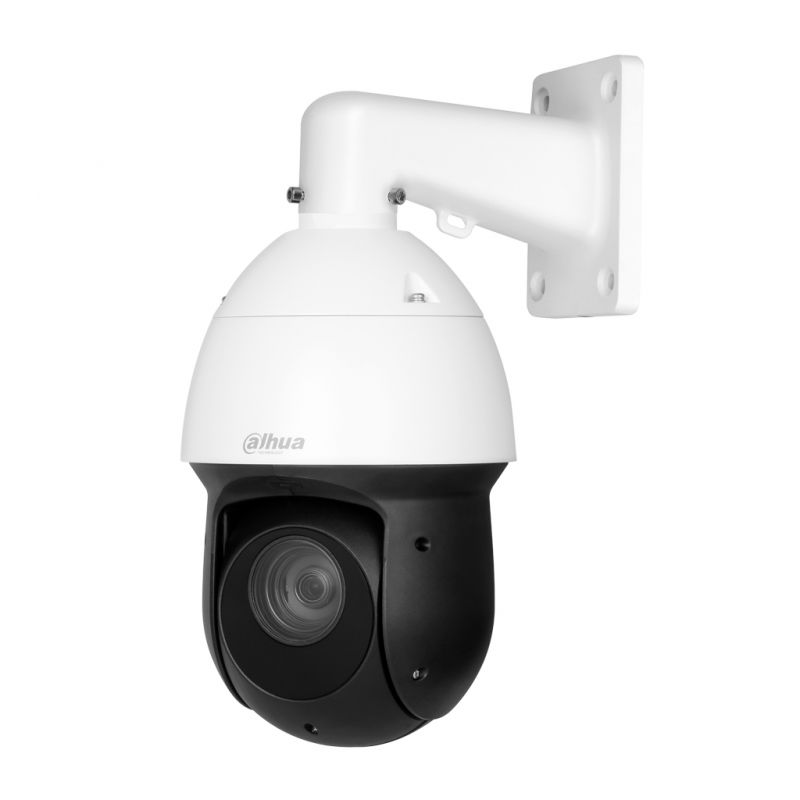

DAHUA SD49825XB-HNR QUALITY 8MP STRAIGHT 25X IR PTZ CAMERA - KUN TRADERS

SHORT DESCRIPTION:

SD49825XB-HNR

8MP 25x Starlight IR WizSense Network PTZ Camera

DETAIL DESCRIPTION:

Camera

1. Image Sensor: 1/2.8" CMOS
2. Pixel: 8 MP
3. Max Resolution: 3840x2160
4. Electronic Shutter Speed: 1/1s-1/30,000s
5. Min Illumination: Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on)
6. Illumination Distance: 100m (328.08ft) (IR)
7. Zoom: 25x optical zoom
8. Focus Control: Auto, semi-auto, manual
9. Close Focus Distance: 0.1m-1.5m (0.33ft-4.92ft)

PTZ

1. Pan/Tilt Range: Pan: 0°-360°, Tilt: -15°-90°
2. Manual Control Speed: Pan: 0.1°-200°/s, Tilt: 0.1°-120°/s
3. Preset Speed: Pan: 240°/s, Tilt: 200°/s
4. Preset: 300
5. Tour: 8 (up to 32 presets per tour)
6. Pattern: 5
7. Scan: 5

Video

1. Video Compression: Smart H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H, MJPEG (Sub Stream 1)
2. Streaming Capability: 3 streams
3. Resolution: 4K, 4M, 3M, 1080p, 960p, 720p, D1, VGA, CIF
4. Frame Rate: Main stream: 1-25/30fps, Sub stream: 1-25/30fps
5. Bit Rate Control: CBR, VBR

Audio

1. Audio Compression: G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G.729, G.723
2. Audio Input: 1 channel
3. Audio Output: 1 channel
4. Two-way Audio: Yes

Network

1. Network Port: RJ-45 (10/100 Base-T)
2. Network Protocol: HTTP, HTTPS, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, QoS, FTP, UPnP, ICMP, SNMP v1/v2c/v3 (MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, TCP, RTMP

Interoperability

1. ONVIF Profile S&G&T
2. CGI

Storage

1. FTP
2. Micro SD card (256 GB)

Management Software

1. Smart PSS
2. DSS
3. DMSS
4. Easy4ip
5. IVSS
6. Player
7. Configtool
8. NVR
9. Smart Player

Mobile Client

1. iOS
2. Android
3. iPhone
4. iPad

Certification

1. CE: EN55032/EN55024/EN50130-4
2. FCC: Part15 subpartB, ANSI C63.4-2014
3. UL: UL60950-1+CAN/CSA C22.2, No. 60950-1

Power

1. Power Supply: 12 VDC, 3 A (± 10%)
2. PoE+: 802.3at
3. Power Consumption: Basic: 9.8W, Max: 20W (illuminator)

Environment

1. Operating Temperature: -40°C to +70°C (-40°F to +158°F)
2. Operating Humidity: ≤95%
3. Protection: IP66, TVS 6000V lightning proof, surge protection, voltage transient protection

Structure

1. Product Dimensions: 269.9mm × Φ160mm (10.62" × Φ6.30")
2. Net Weight: 3.0kg (6.61lb)
3. Gross Weight: 4.3kg (9.48lb)
