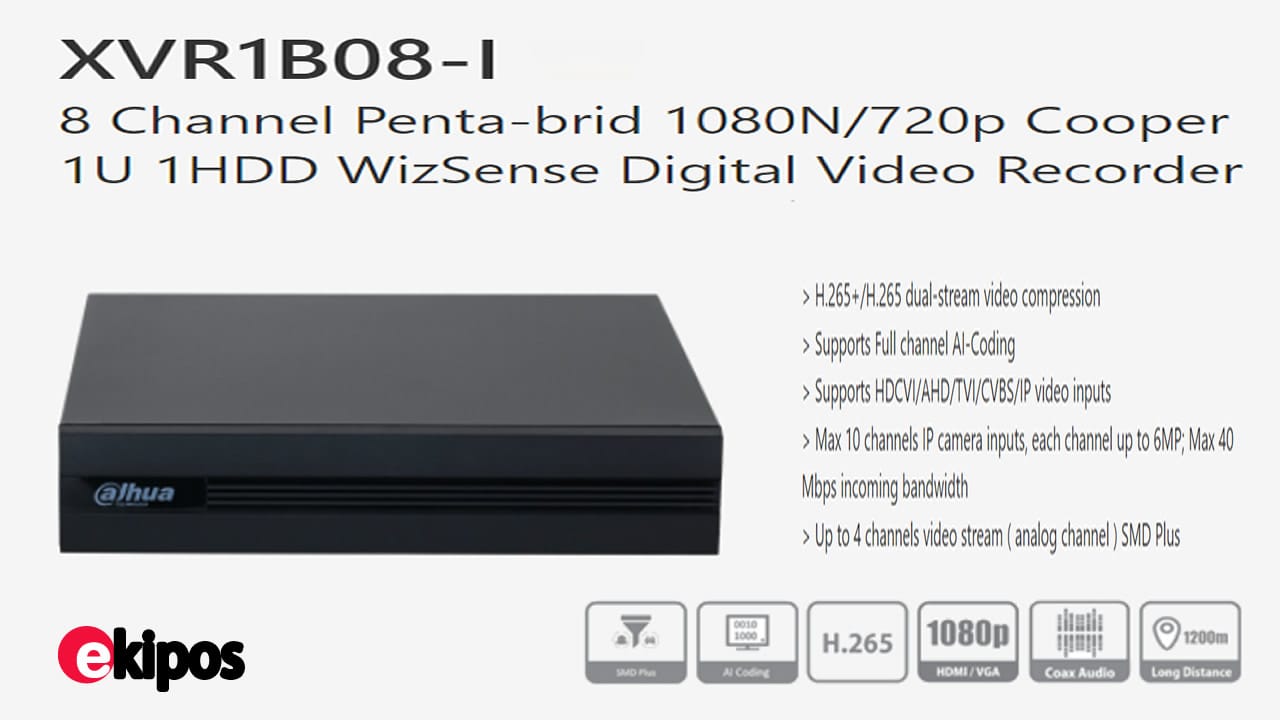

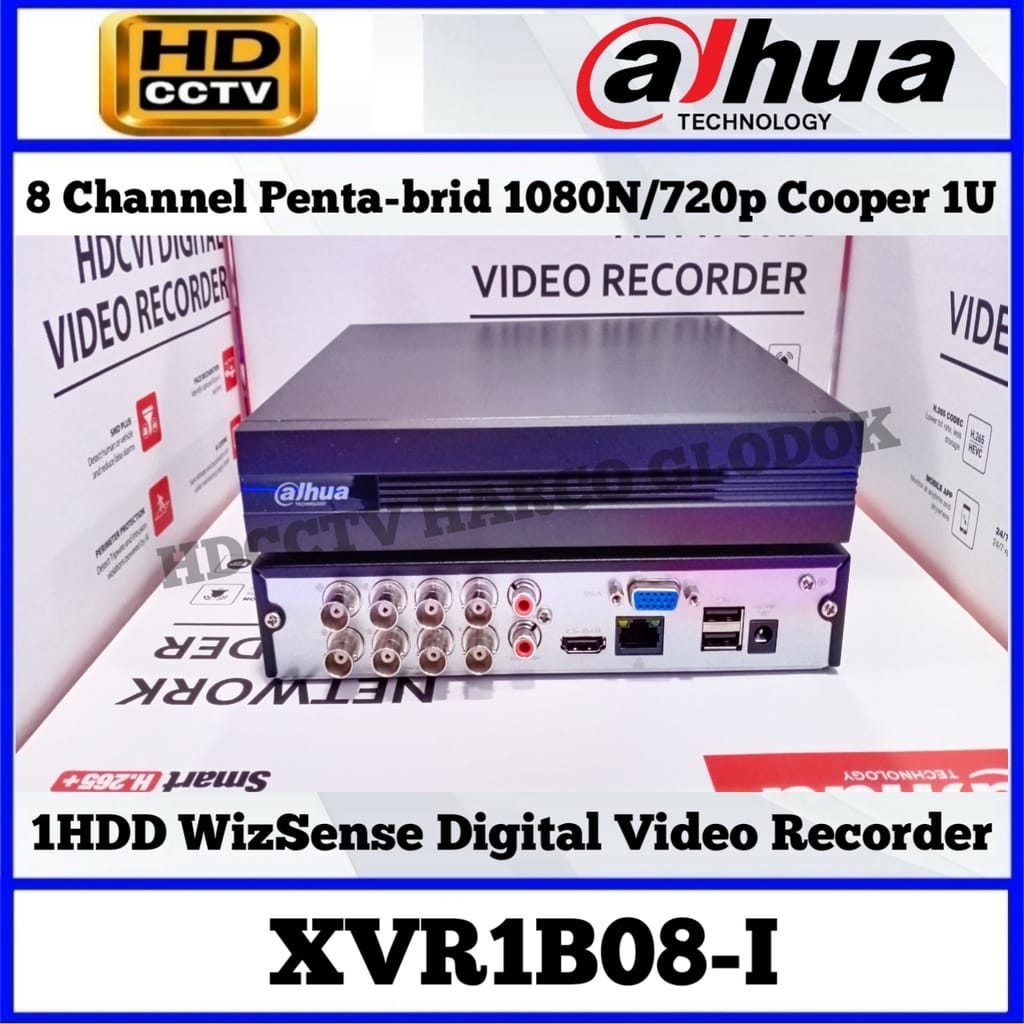

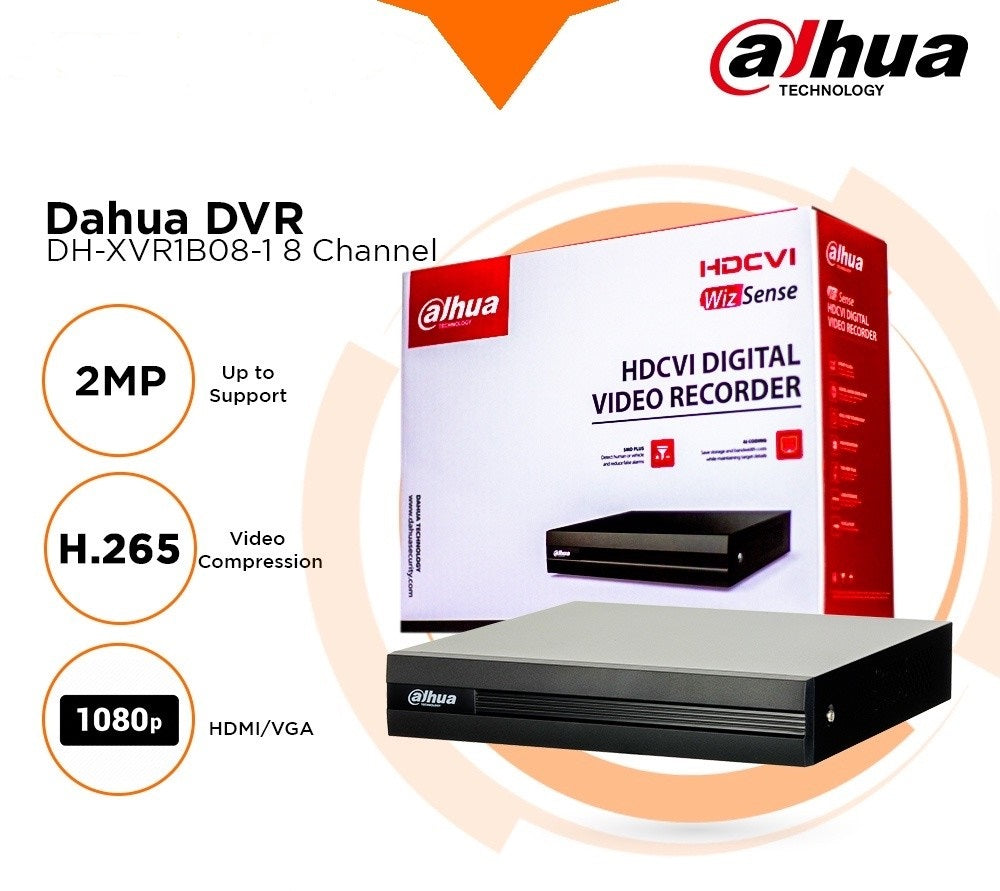

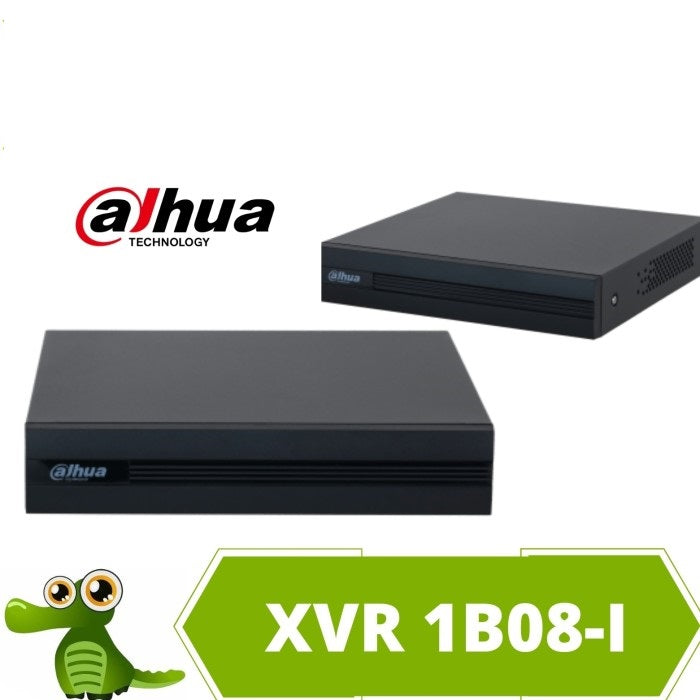

DAHUA 8 CHANNEL 2MP SUPPORTED XVR1B08-I PENTA-BRID 1080N/720P DIGITAL VIDEO RECORDER - KUN TRADERS

PRODUCT SPECIFICATION:

• System Specifications

Main Processor: Industrial-grade processor

Operating System: Embedded Linux

Operating Interface: Web and Local GUI

SMD Plus: 4-channel secondary filtering for human and motor vehicles

• Audio and Video Specifications

Analog Camera Input: 4 BNC ports with CVI access and auto-detection for HDCVI/AHD/TVI/CVBS

Camera Input:

CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps

TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps

AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps

CVBS: PAL/NTSC

IP Camera Input: Up to 6 channels with 2 IP channels by default and 4 channels converted from analog

Incoming/Recording/Outgoing Bandwidth: 32 Mbps

• Encoding Capacity

Main Stream: All channels with 5M-N@ (1 fps–10 fps), 4M-N/1080p@ (1 fps–15 fps), and 1080N/720p/960H/D1/CIF@ (1 fps–25/30 fps)

Sub Stream: D1/CIF (1 fps–15 fps)

Dual-stream: Yes

• Video and Audio Specifications

Video Bit Rate: 32 kbps–6144 kbps

Audio Sampling: 8 kHz, 16 bit

Audio Bit Rate: 64 kbps

• Video Output

1 HDMI and 1 VGA

HDMI/VGA Resolution: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display:

Without IP extension mode: 1/4

With IP extension mode: 1/4/6

• Third-party Camera Access

ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

• Compression Standard

Video Compression: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264

Audio Compression: G.711a, G.711u, PCM

• Network Specifications

Network Protocol: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Mobile Phone Access: iOS and Android

Interoperability: ONVIF 21.06 and CGI Conformant

Browser: Chrome, IE9 or later, Firefox

Network Mode: Single-address mode

• Recording Specifications

Record Mode: General, motion detection, alarm, POS

Recording Playback: 1/4

Backup Method: USB device and network

Playback Mode: Instant playback, general playback, event playback, tag playback

• Alarm Specifications

General Alarm: Motion detection, video loss, tampering

Anomaly Alarm: No disk, disk error, low space, offline, IP conflict, MAC conflict

Alarm Linkage: Record, snapshot, IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

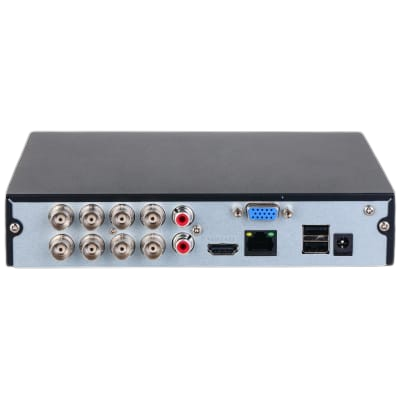

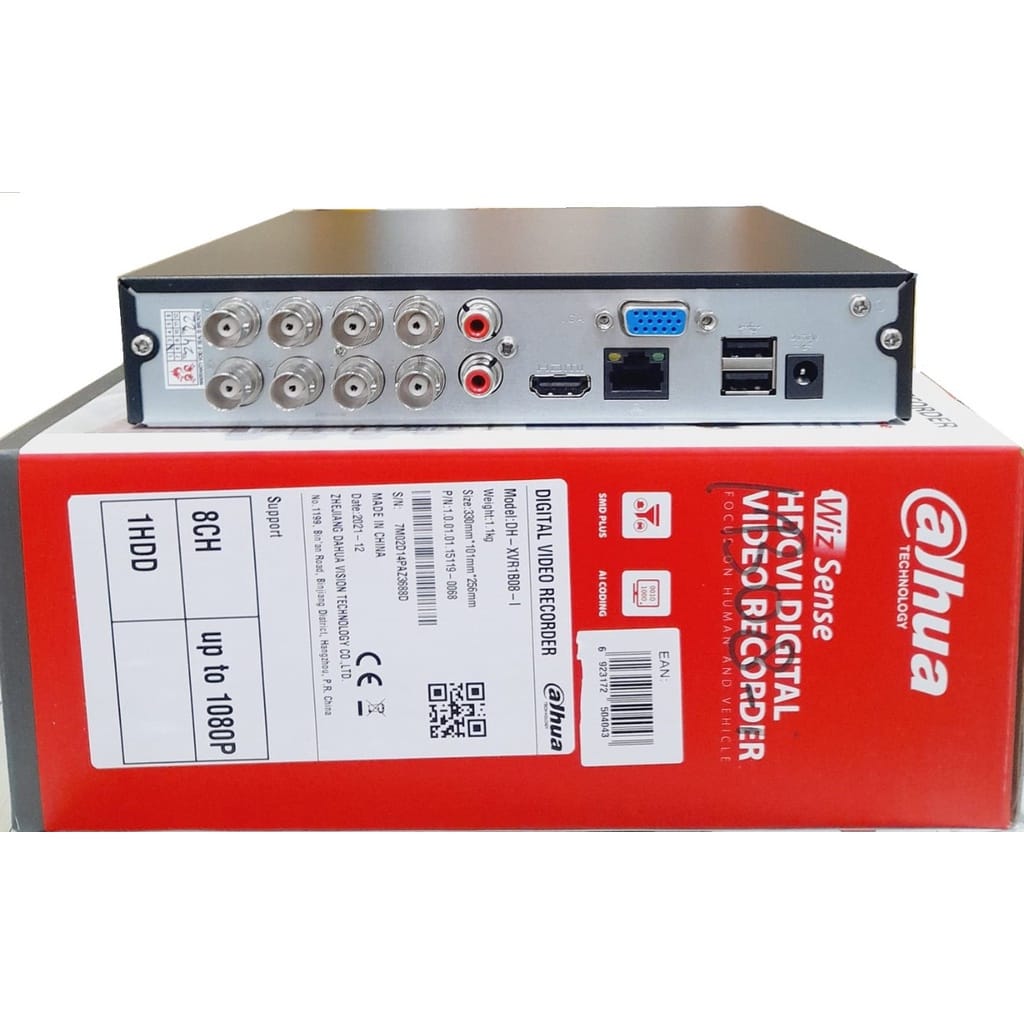

• Ports

Audio Input: 1-channel RCA and 4-channel BNC (Coaxial Audio)

Audio Output: 1-channel RCA

Two-way Talk: Yes (shares same audio input with first channel)

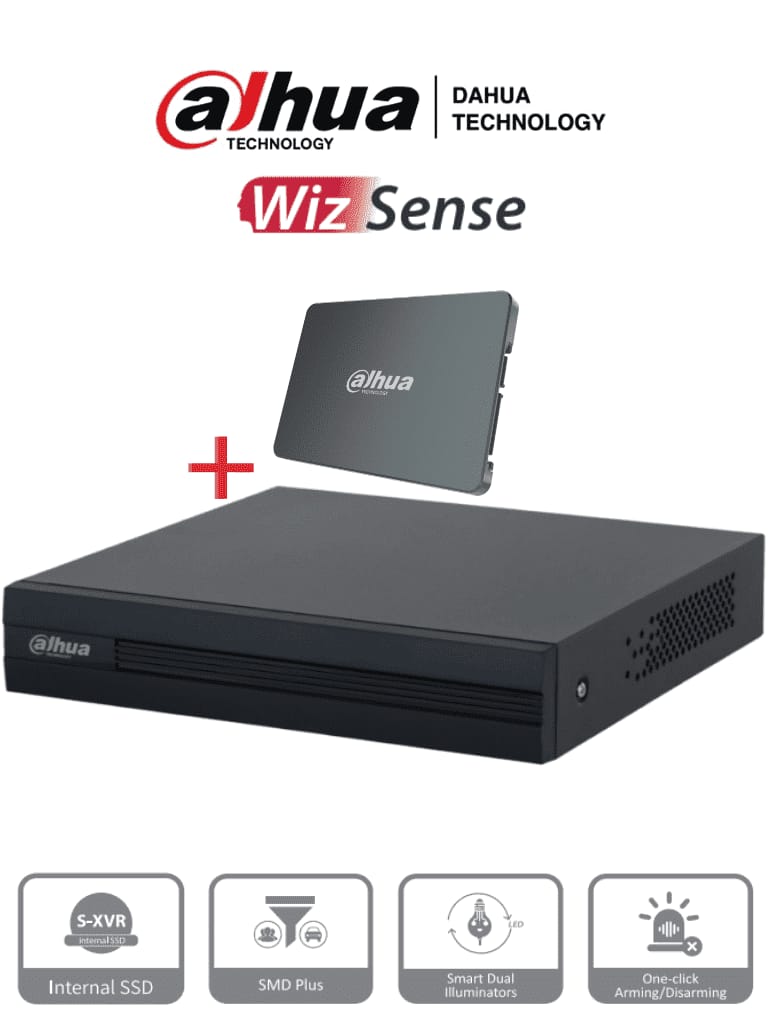

HDD Interface: 1 SSD (512 GB, replaceable with 256 GB or 1 TB)

USB: 2 USB ports (USB 2.0)

HDMI: 1

VGA: 1

Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)

• General Specifications

Power Supply: 12 VDC, 1.5 A

Power Consumption: <6 W (with SSD)

Net Weight: 0.55 kg (1.21 lb)

Gross Weight: 1.02 kg (2.25 lb)

Product Dimensions: 197.0mm × 203.4 mm × 41.5 mm (7.76'' × 8.01'' × 1.63'') (W × D × H)
