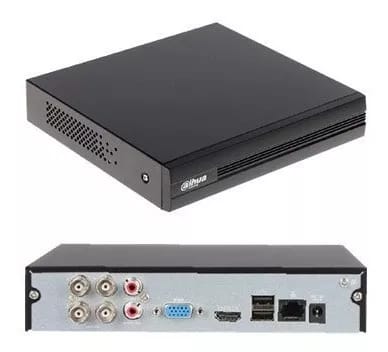

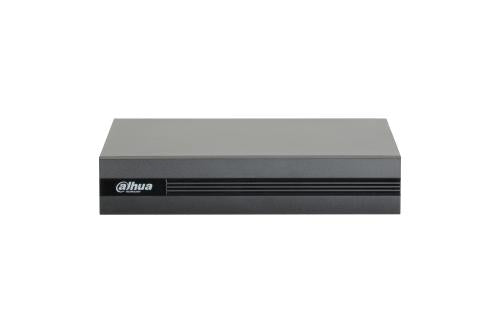

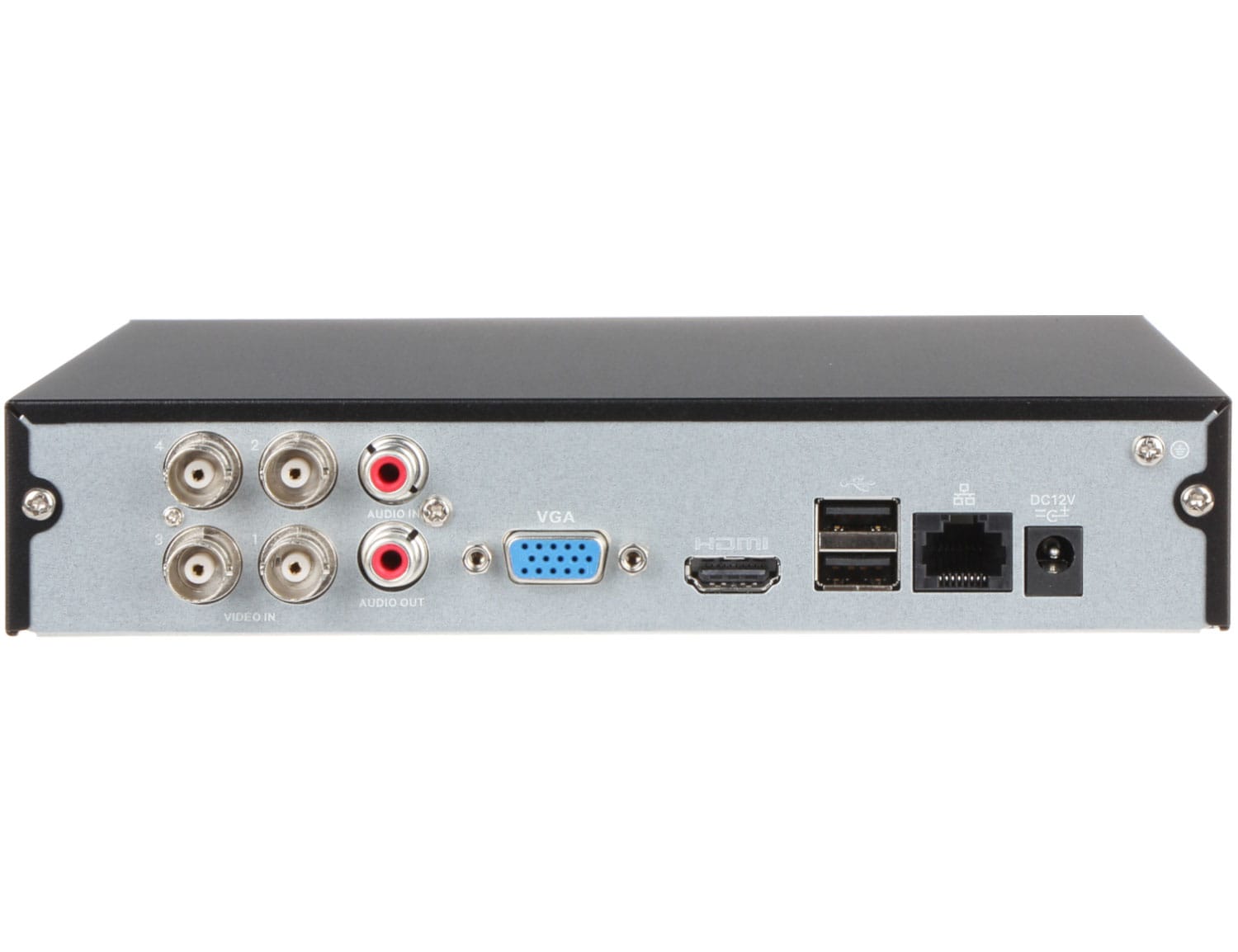

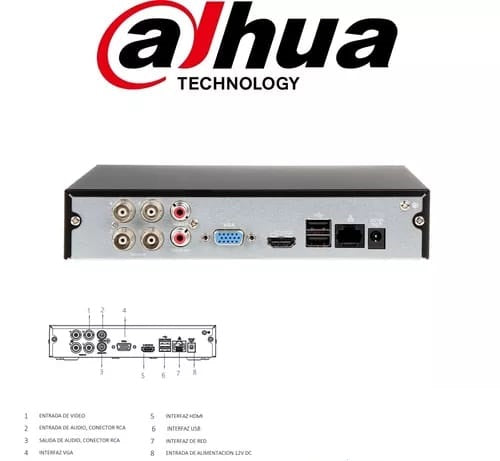

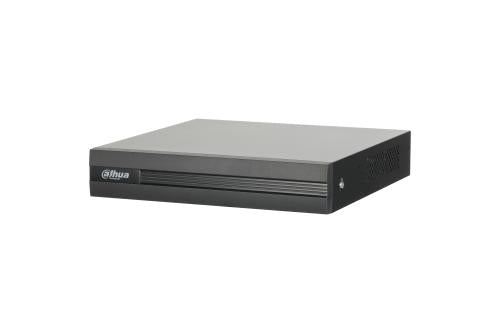

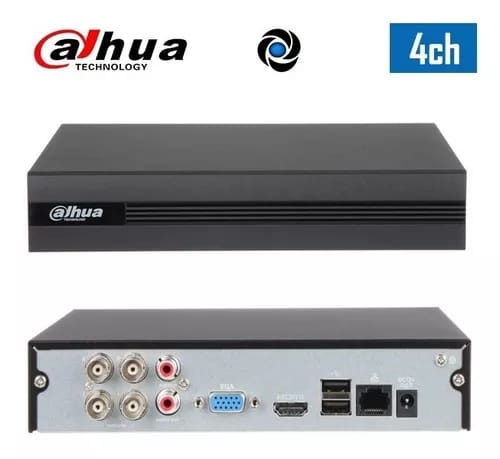

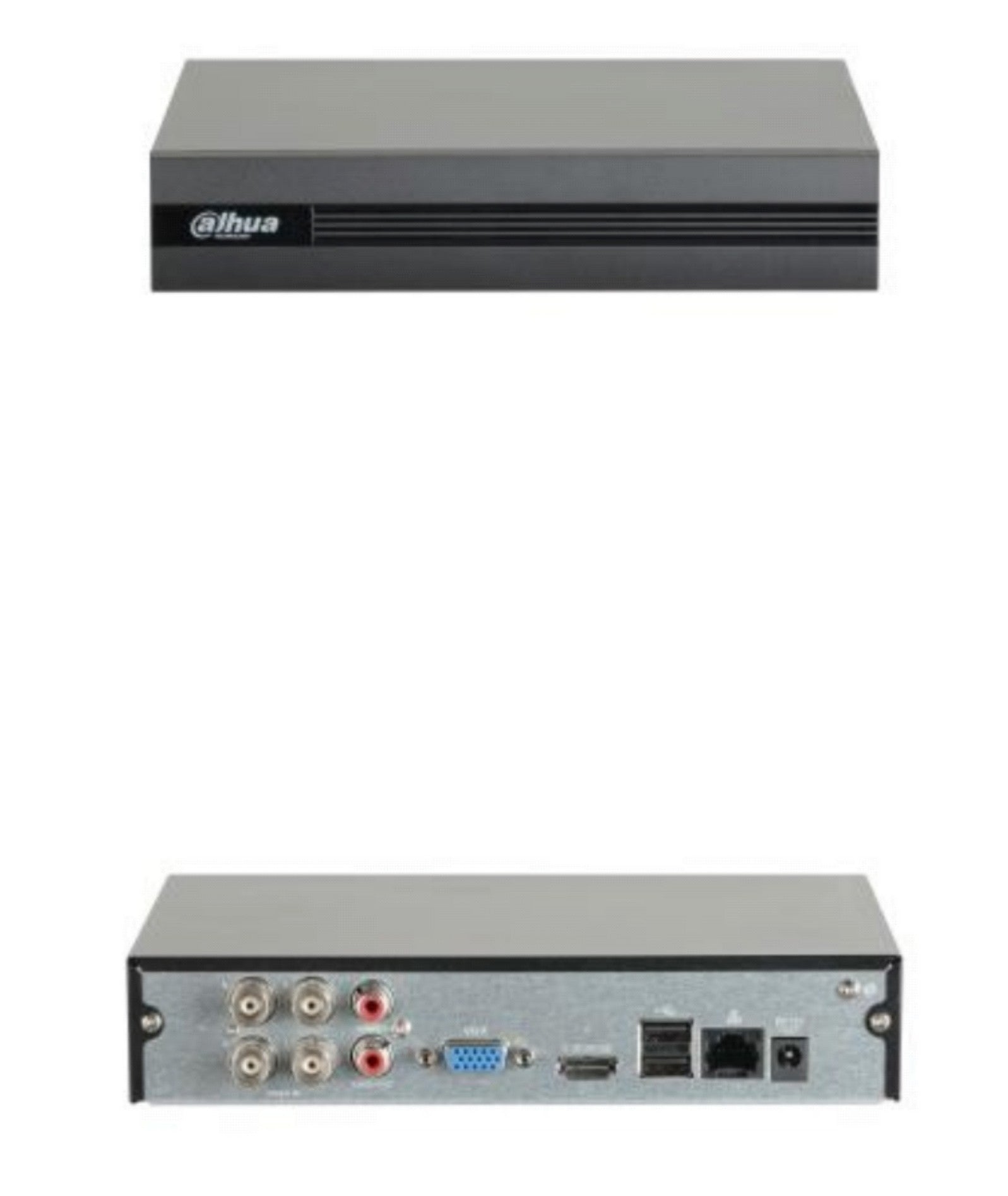

DAHUA 4 CHANNEL XVR1B04H-I UPTO 5MP SUPPORTED - KUN TRADERS

PRODUCT SPECIFICATION:

• SYSTEM

1. Main Processor: Industrial-grade processor
2. Operating System: Embedded Linux
3. Operating Interface: Web, Local GUI
4. AI: SMD Plus by Recorder, AI by DVR
5. Analog Camera Input: 4 channels, BNC, adaptive access
6. IP Camera Input: 4+2 channels, each channel up to 6 MP
7. Encoding Capacity: All channel 5M-N@(1 fps–10 fps), 4M-N/1080p@(1 fps–15 fps), etc.
8. Dual-stream: Yes
9. Video Frame Rate: PAL: 1 fps–25 fps, NTSC: 1 fps–30 fps
10. Video Bit Rate: 32 kbps–6144 kbps
11. Audio Sampling: 8 kHz, 16 bit
12. Audio Bit Rate: 64 kbps
13. Video Output: 1 HDMI, 1 VGA
14. Multi-screen Display: 1/4, 1/4/6
15. Third-party Camera Access: ONVIF, RTSP, Panasonic, Sony, etc.
16. Video Compression: AI Coding, H.265+, H.265, H.264+, H.264
17. Audio Compression: G.711a, G.711u, PCM
18. Network Protocol: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, etc.
19. Mobile Phone Access: iOS, Android
20. Interoperability: ONVIF 16.12, CGI Conformant

• Recording and Playback

1. Record Mode: General, motion detection, intelligent, alarm, POS
2. Recording Playback: 1/4
3. Backup Method: USB device and network
4. Playback Mode: Instant playback, general playback, event playback, tag playback

• Alarm and Anomaly

1. General Alarm: Motion detection, video loss, tampering
2. Anomaly Alarm: No disk, disk error, low space, offline, IP conflict, MAC conflict
3. Alarm Linkage: Record, snapshot (panoramic), IPC external alarm output, etc.

• Audio and Power

1. Audio Input: 1-channel RCA, 4-channel BNC (Coaxial Audio)
2. Audio Output: 1-channel RCA
3. Two-way Talk: Yes
4. Power Supply: 12 VDC, 1.5 A
5. Power Consumption: < 4 W, <6 W (withThere was a problem generating a response. Please try again later.
