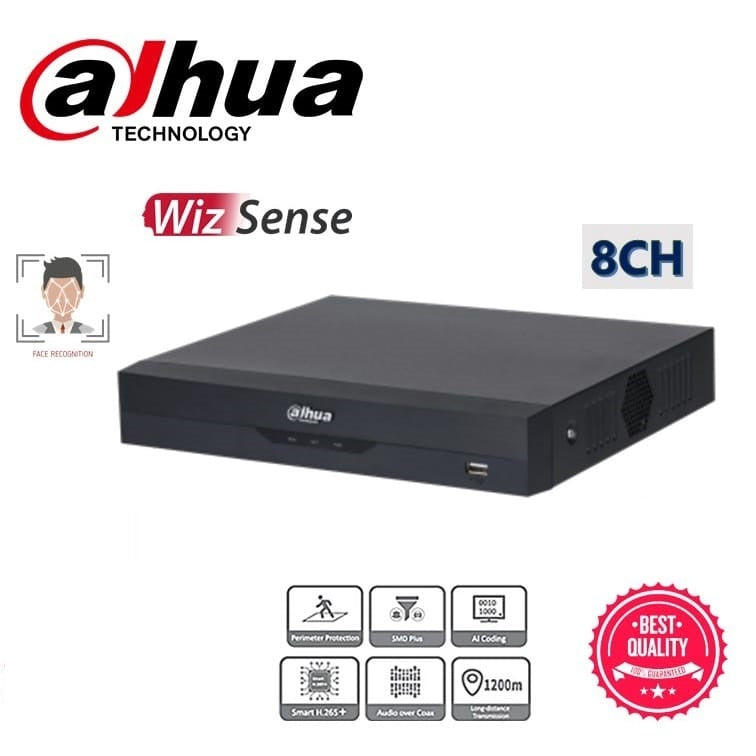

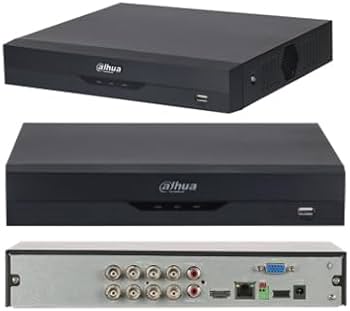

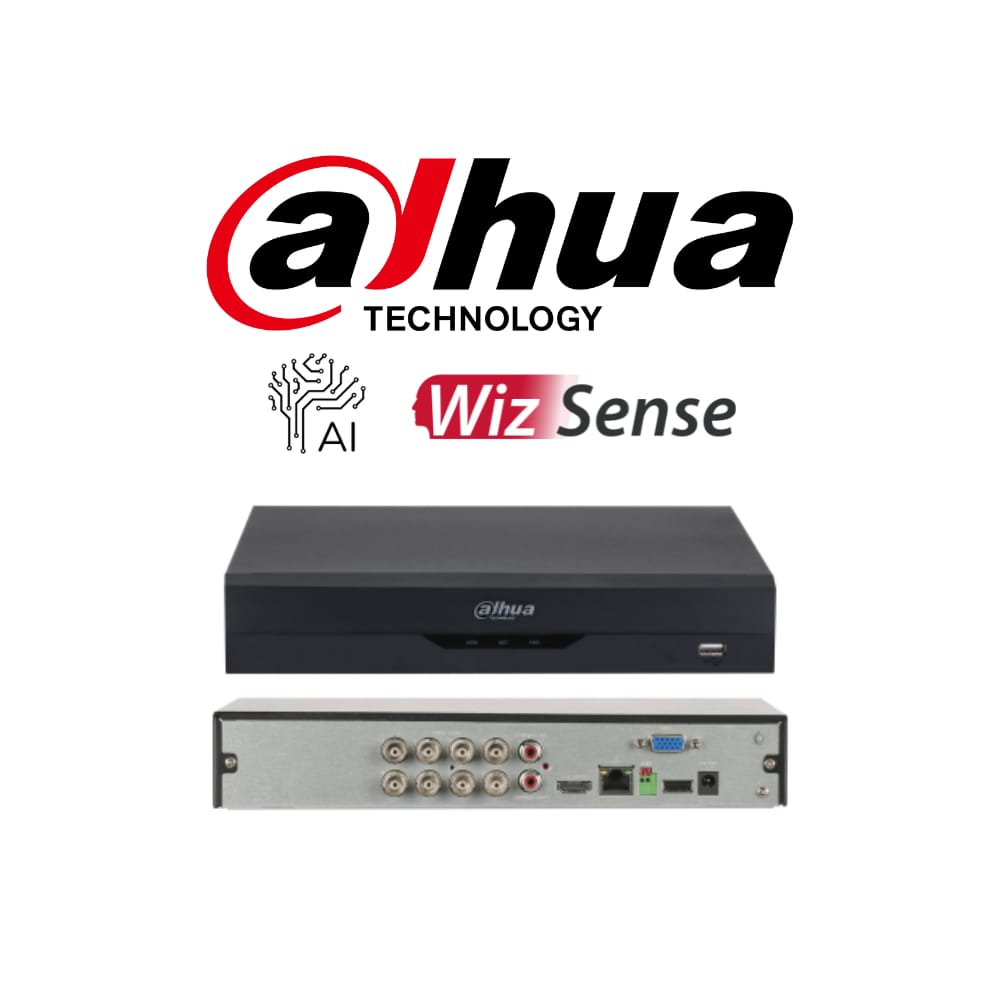

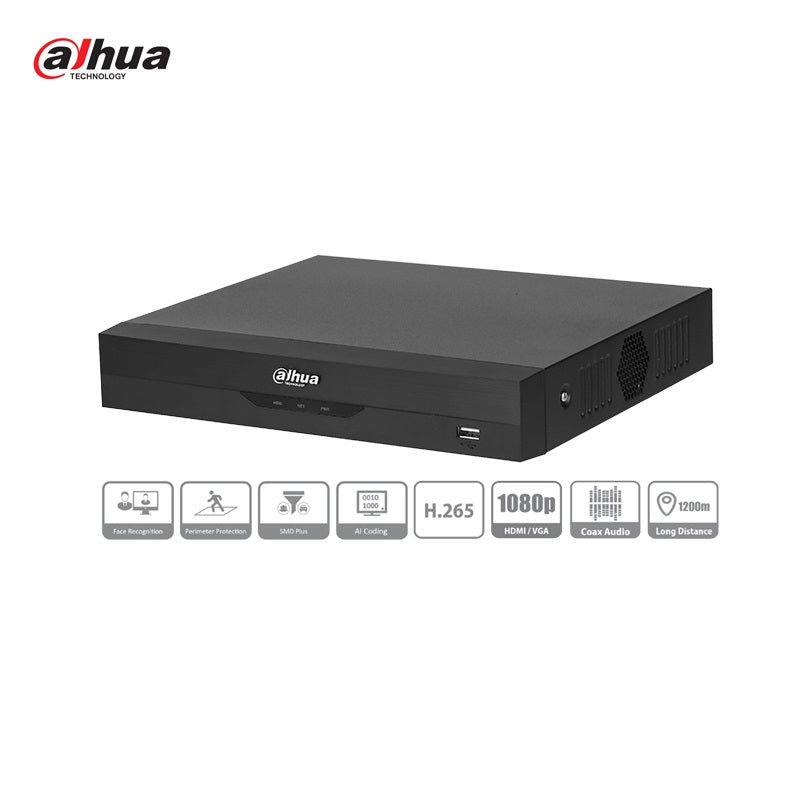

DAHUA 8 CHANNEL XVR-5108HS-I3 UPTO 6MP SUPPORTED - HUMAN FACE RECOGNITION- KUN TRADERS

DAHUA 8 CHANNEL XVR-5108HS-I3 UPTO 6MP SUPPORTED - HUMAN FACE RECOGNITION- KUN TRADERS

Rs.0.00 PKR
Rs.0.00 PKR
Sale Sold out
Shipping calculated at checkout.

SHORT SPECIFICATION:

DETAIL SPECIFICATION:



SYSTEM
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model : 1 channel, 10 IVS for each channel
General Model : 2 channels, 10 IVS for each channel
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 1 channel, (up to 8 face images/s)
Face Recognition
Face Database Capacity Up to 10 face databases and 10,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels) 1 channel
SMD Plus
SMD Plus by Recorder 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input 8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
4. CVBS: PAL/NTSC
IP Camera Input Up to 12 channels of IPC access



4 IP channels by default + 8 channels (analog channels are converted to IP channels)

incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity Main stream: All channel 5M-N (1 fps–10 fps);



4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/

D1/CIF (1 fps–25/30 fps)

Sub stream: D1/CIF (1 fps–15 fps)
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA



HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access iOS; Android
Interoperability ONVIF 21.06; CGI Conformant
Browser Chrome
IE9 or later
Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm Motion detection, video loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input 1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-485 1 port, for PTZ control
USB 2 USB ports (USB 2.0)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption <7 W
Net Weight 1.1 kg (2.43 lb)
Gross Weight 1.5 kg (3.31 lb)
Product Dimensions 260.0 mm × 237.9 mm × 47.6 mm (10.24” × 9.37” × 1.87”) (W × D × H)
Packaging Dimensions 333.0mm × 315.0mm × 89.0 mm (13.11″ × 12.40″ × 3.50″) (W× D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 0%–90% (RH)
Installation Desktop
