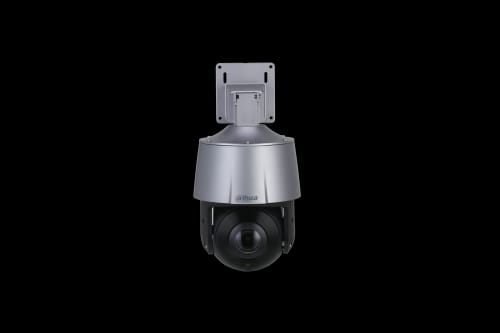

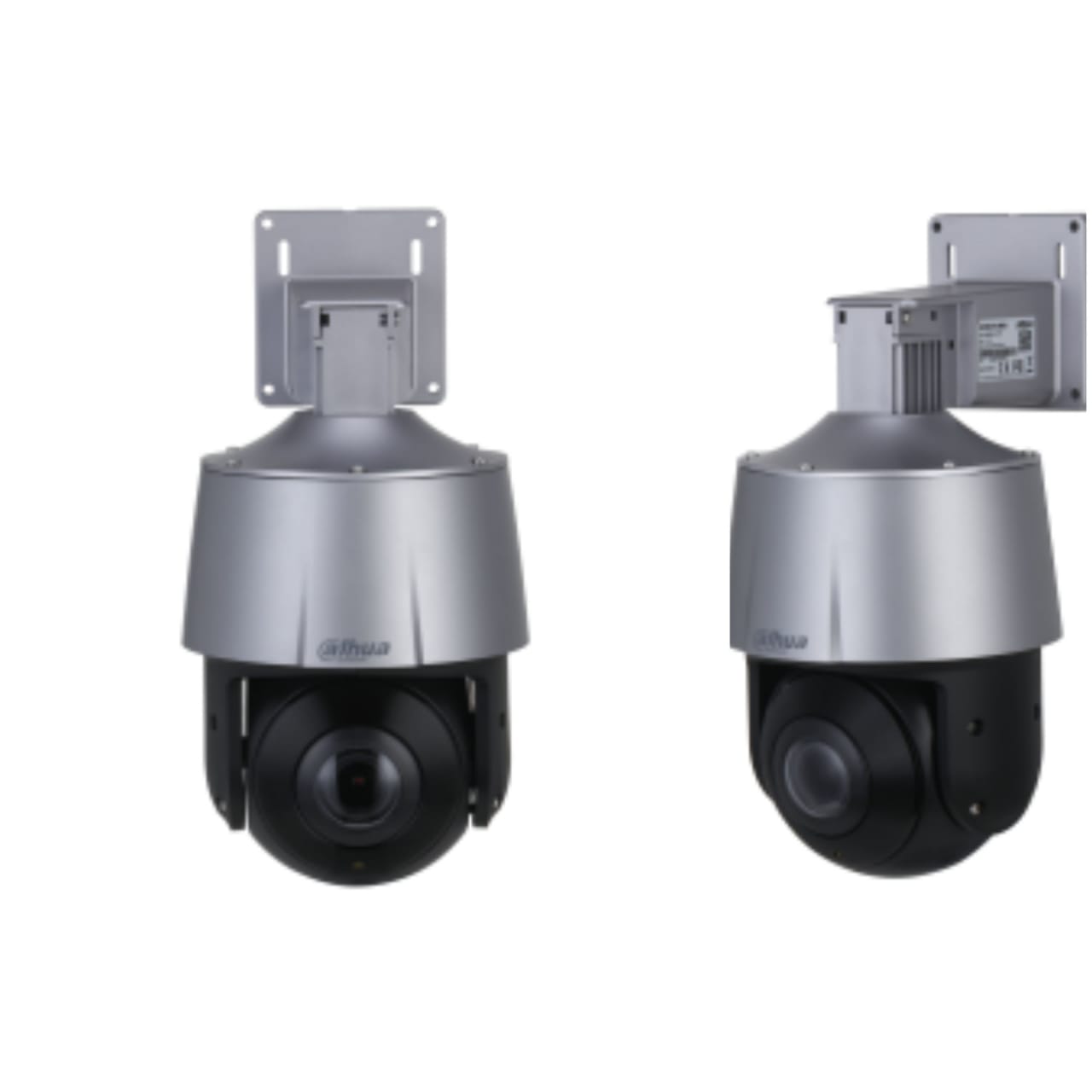

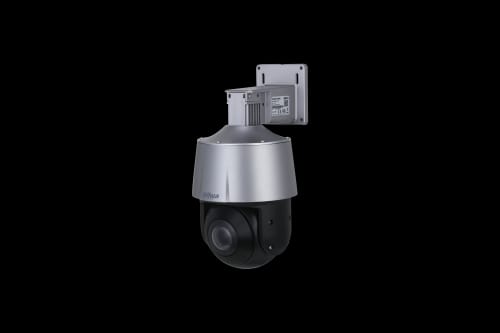

Dahua DH-SD3A205-GNP-PV MINI PTZ (2MP)

MAIN FEATURES:

Camera Specifications

1. Image Sensor: 1/2.8" CMOS
2. Pixel: 2 MP
3. Max Resolution: 1920 (H) × 1080 (V)
4. ROM: 256 MB
5. RAM: 512 MB
6. Electronic Shutter Speed: 1/3 s–1/30000 s
7. Scanning System: Progressive
8. Min. Illumination: Color: 0.005 Lux@F1.8, B/W: 0.0005 Lux@F1.8, 0 Lux (IR light on)
9. Illumination Distance: 30 m (98.43 ft)
10. Illuminator On/Off Control: Manual/Smart IR/Off
11. Illuminator Number: 4 (IR light), 1 (white light)
12. Illuminator Type: IR
13. Focal Length: 2.7 mm–13.5mm
14. Max. Aperture: F1.8–F3.3
15. Field of View: H: 33.5°–101.6°, V: 18.7°–52°, D: 38.5°–124.7°
16. Optical Zoom: 5 ×
17. Focus Control: Auto/Semi-auto/Manual
18. Close Focus Distance: 1.2 m
19. Iris Control: Fixed
20. DORI Distance: D: 131 m, O: 52.3 m, R: 26 m, I: 12.8 m
21. Zoom Speed: About 5 s
22. Pan/Tilt Range: Pan: 0.1°–355°, Tilt: -15°–90°
23. Manual Control Speed: Pan: 0.1°/s–80°/s, Tilt: 0.1°/s–56°/s
24. Preset Speed: Pan: 81°/s, Tilt: 43°/s
25. Preset: 300
26. Power-off Memory: Yes
27. Idle Motion: Preset
28. Scheduled Task: Preset
29. IVS: Tripwire, intrusion (Perimeter Protection)
30. Video Compression: Smart H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H, MPEG4, MJPEG (Sub Stream)

Network and Security

1. Network Port: RJ-45 (10/100 Base-T)
2. Network Protocol: HTTP, HTTPS, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, Qos, FTP, UPnP, ICMP, SNMP, SNMPv1/v2c/v3 (MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, RTMP, TCP
3. Interoperability: ONVIF, CGI
4. Streaming Method: Unicast/Multicast
5. User/Host: 20 (total bandwidth: 64 M)
6. Storage: FTP, Micro SD card (max. 256 G), NAS
7. Browser: IE7 and later versions, Chrome 42 and earlier versions, Firefox 52 and earlier versions, Safari
8. Management Software: DMSS SVC
9. Security: Username and password authorization, MAC address binding, HTTPS encryption, IEEE802.1x, network access control
10. Certifications: CE, FCC

Audio and Alarm

1. Audio Input: 1 channel (built-in mic)
2. Audio Output: 1 channel (built-in speaker)
3. Alarm Linkage: Capture, preset, SD card record, send email
4. Alarm Event: Motion/tampering detection, audio detection, network disconnection detection, IP conflict detection, encoder state detection, memory card state detection, memory space detection

Power and Environmental

1. Power Supply: 12V DC/1.5A±10%, PoE (802.3af)
2. Power Consumption: Basic: 5W, Max.: 12WThere was a problem generating a response. Please try again later.
