DH-PFS3110-8ET-96
8-Port PoE Switch (Unmanaged)

SPECIFICATION:

Layer two Hardened PoE switch
Supports PoE power management
MAC auto learning and aging, MAC address capacity is 8K
Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 1-2 supports Hi-PoE 60W power supply
Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
Wide working temperature design: -30°C~ 65°C
Supports dual power backup

PRODUCT OVERVIEW:

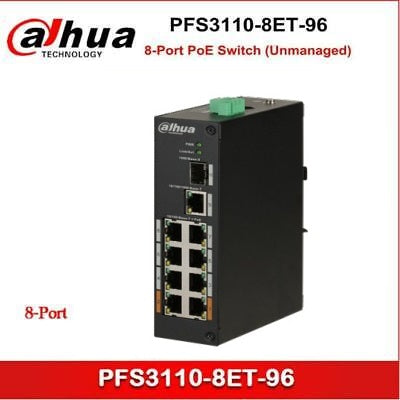

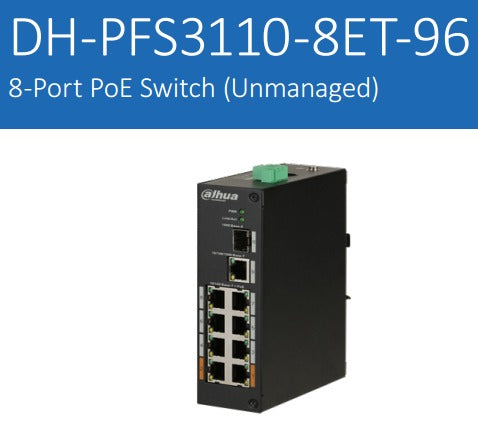

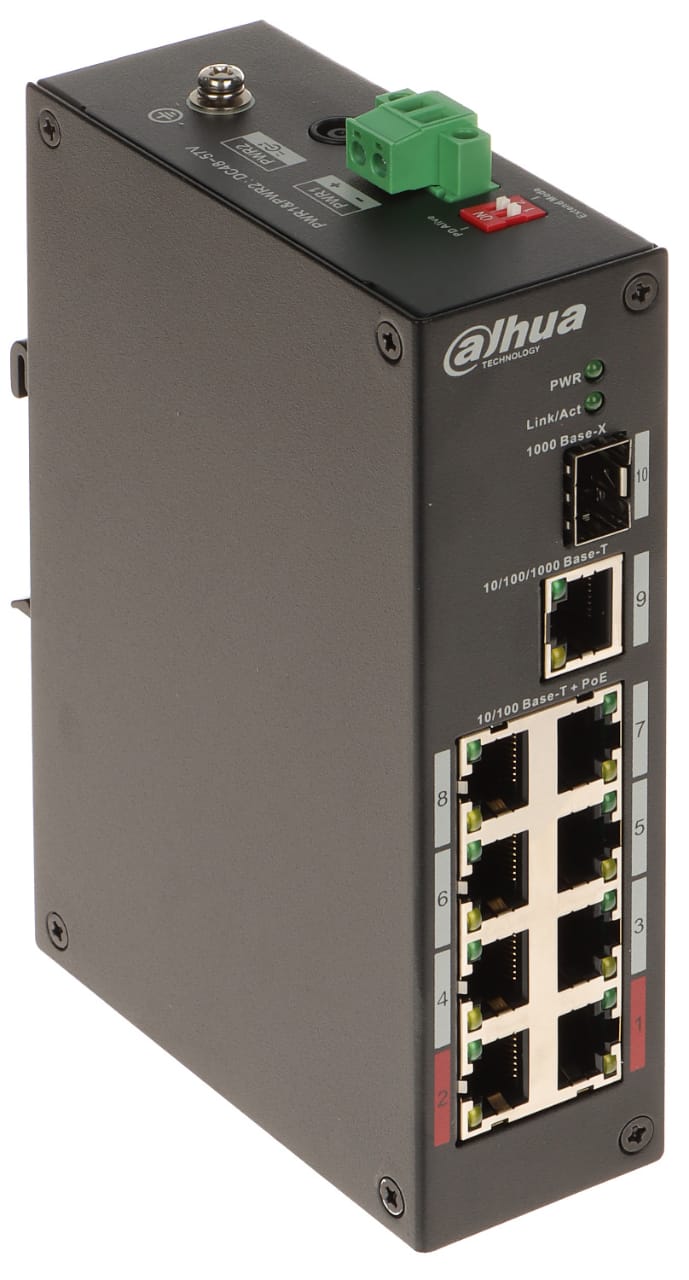

DH-PFS3110-8ET-96 is a layer two Hardened PoE Switch, which
provides 8*10/100Mbps PoE ports, 1*100/1000 Mbps optcal port and
1*10/100/1000Mbps Ethernet uplink port. With high level lightning
protecton and wide working temperature range makes it a beter
performance in outdoor or harsh environment.

TECHNICAL SPECIFICATION:
Model	DH-PFS3110-8ET-96
Ethernet Port	11000 Base-X 110/100/1000 Base-T 8*10/100 Base-T (PoE power supply)
PoE Power Consumption	Port1-2≤60W, Port3-8≤30W, Total≤96W
PoE PIN Assignment	1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Power Management	Support
PoE Protocol	IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity	7.6G
Packet Forwarding Rate	4.17Mpps
Packet Buffer Memory	1Mb
MAC Table Size	8K
Flow Control	Enable by default
Application Humidity	5%~95%
Power	DC 48~57V power adapter
Lightning Protecton	Common Mode 6KV Diﬀerental Mode 4KV
ESD Protection	Air Discharge 15KV Contact Discharge 8KV
Working Temperature	-30°C~65°C
Weight	540g
Dimension(W×D×H)	150mm×100mm×42mm
