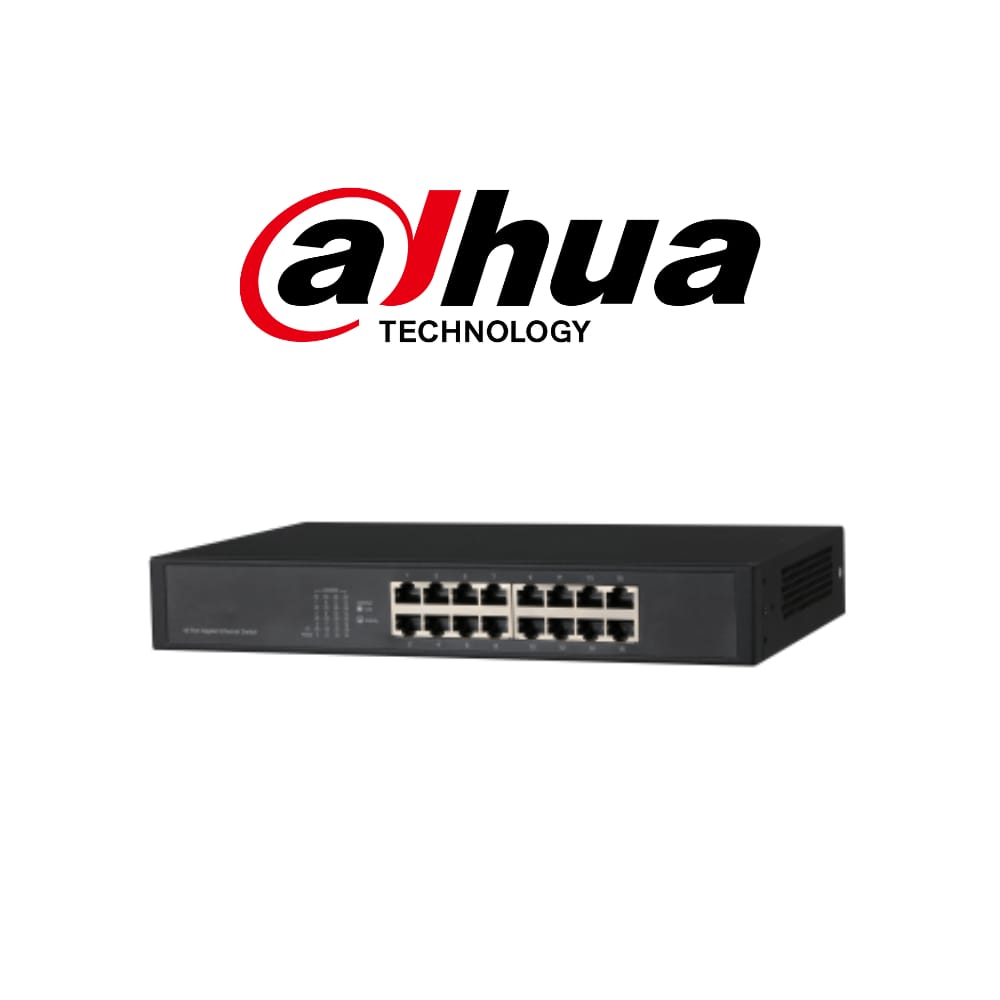

DAHUA DH-PFS3016-16GT 16-PORT POE GIGABIT SWITCH - KUN TRADERS

Performance

Layer

Layer 2

Switching Capacity

32 Gbps

Packet Forwarding Rate

23.808 Mpps

Packet Buffer Memory

4.1 Mb

MAC Table Size

8K

Hardware Feature

Standard Power Supply

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Rate

1 Gbps

Number of Bussiness Card Slots

Port 1–port 16: 16 × RJ-45 10M/100M/1000M (PoE)

Power Supply

100V AC –240V AC

Operating Temperature

–10°C to +55°C (14°F to +131°F)

Operating Humidity

10%–90%

Storage Humidity

5%–95%

Power Consumption

Idling: 18W
Full load: 190W

PoE

PoE Standard

IEEE802.3af, IEEE802.3at, Hi-PoE

PoE Budget

Port 1–port 2 ≤ 60W, port 3–port 16 ≤ 30W, total ≤ 190W

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)

General

ESD

Air discharge: 8kV
Contact discharge: 6kV

Thunderproof

Common mode: 4kV
Differential mode: 2kV

Product Dimensions

285 mm × 104.6 mm × 28 mm (11.22" × 4.12" × 1.10")

Packaging Dimensions

455 mm × 270 mm × 92 mm (17.91" × 10.63" × 3.62")
