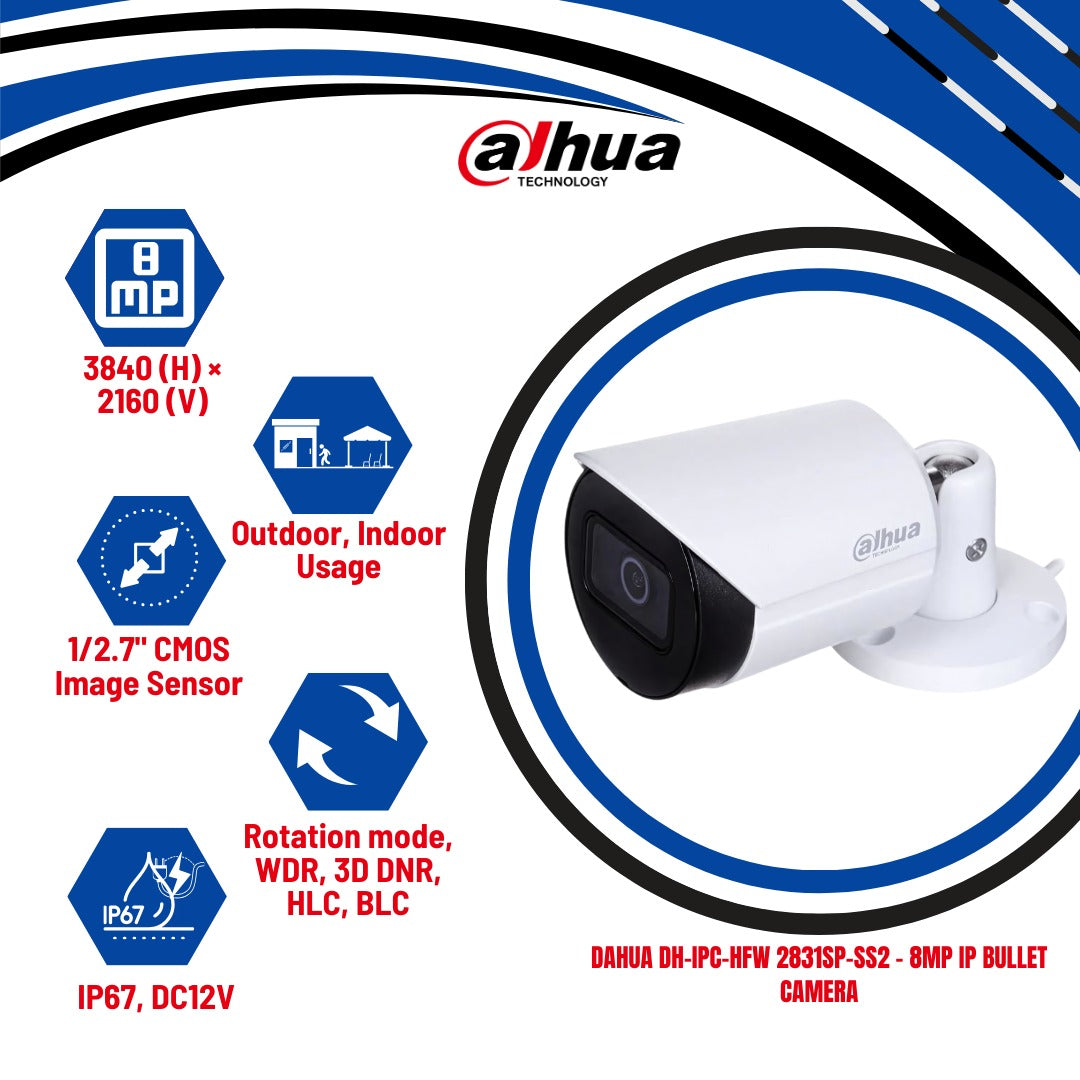

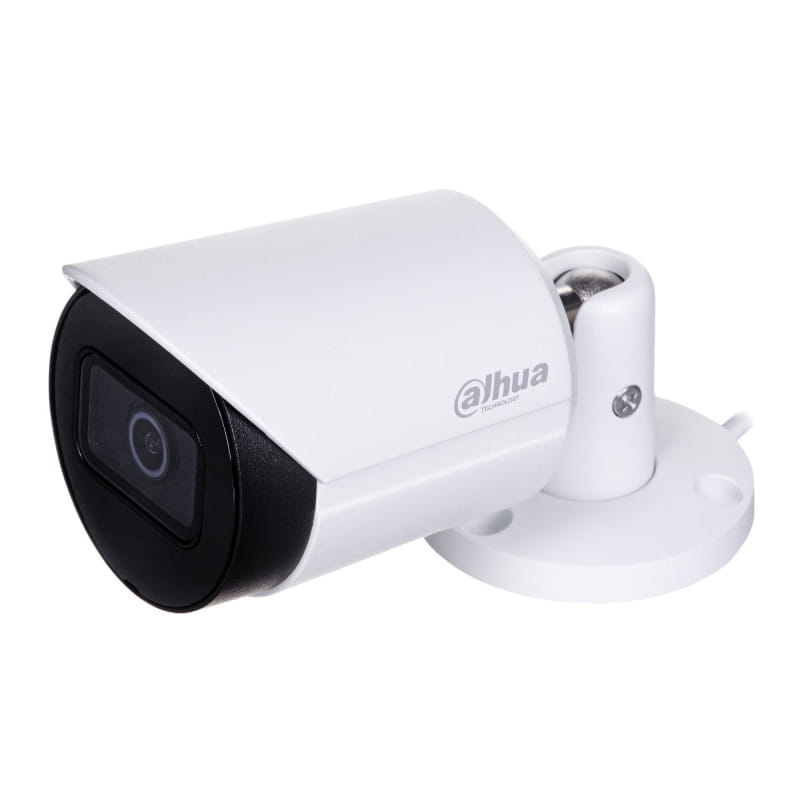

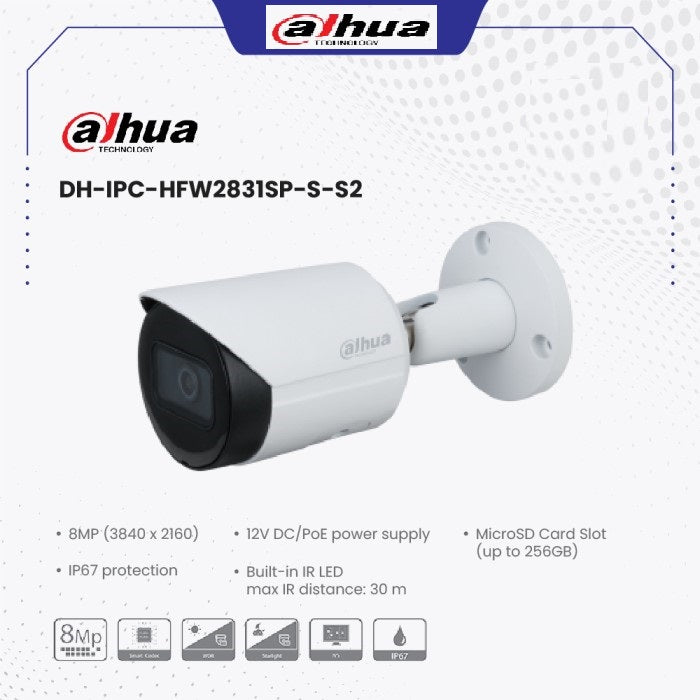

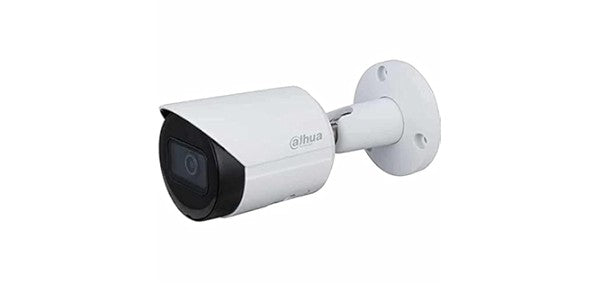

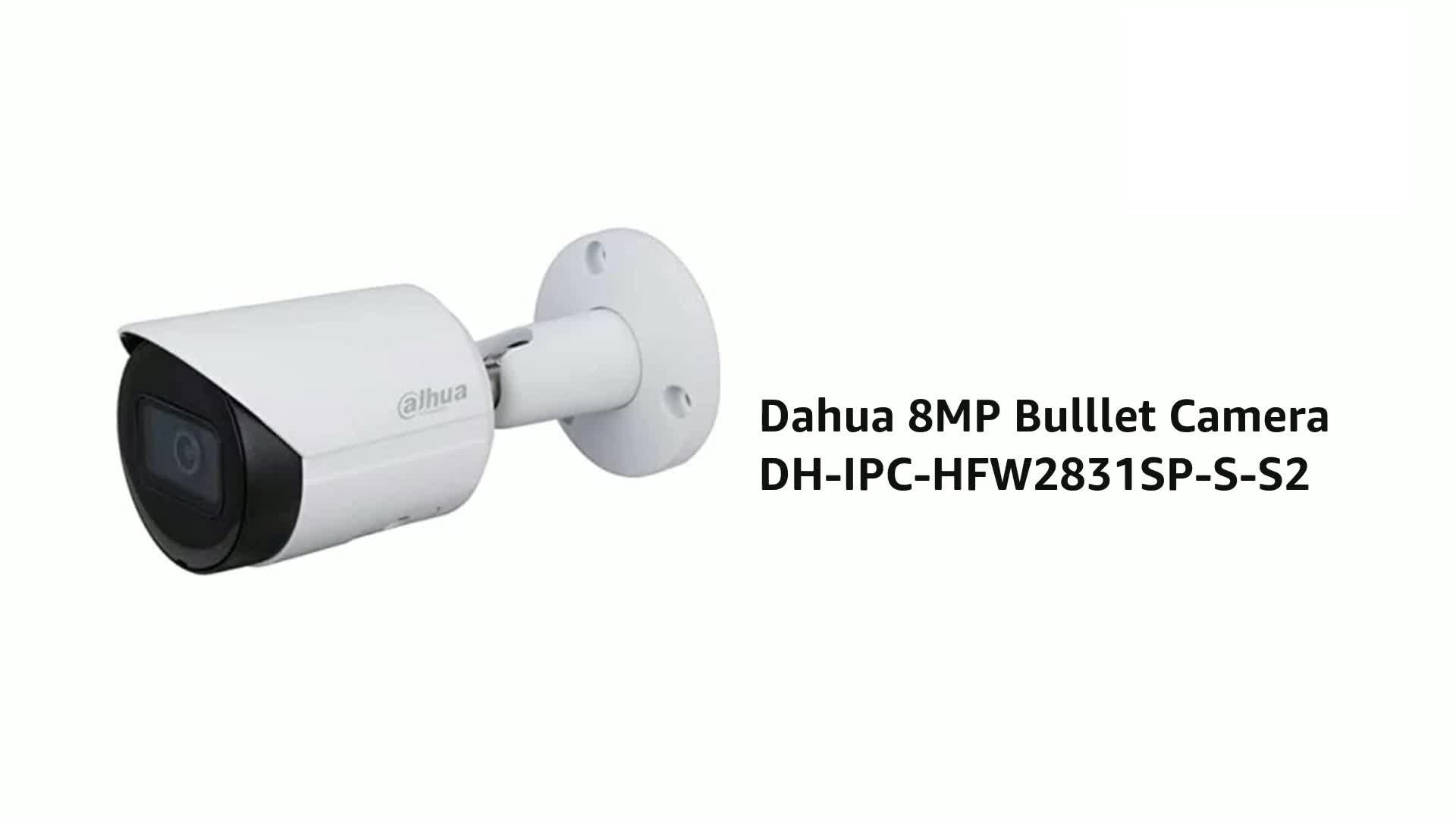

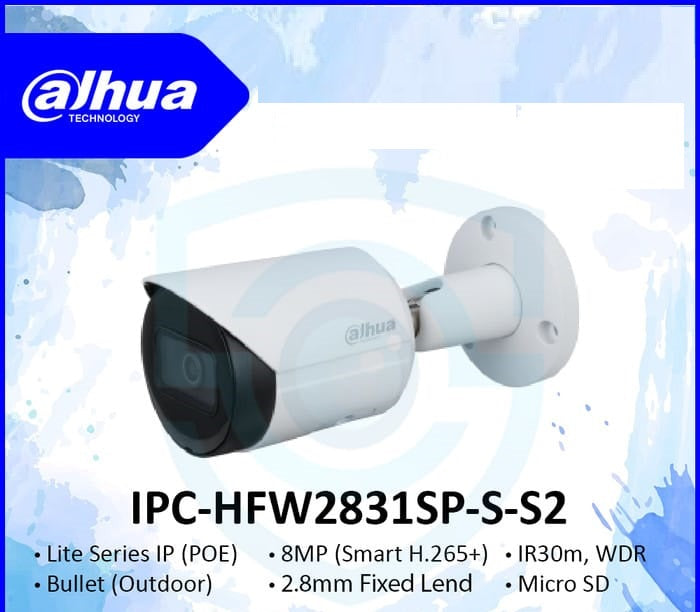

Dahua DH-IPC-HFW 2831SP-SS2 - 8MP IP Bullet Camera - KUN TRADERS

MAIN FEATURES:

Camera Specifications

1. Image Sensor: 1/2.7" CMOS
2. Pixel: 8 MP
3. Max Resolution: 3840 (H) × 2160 (V)
4. ROM: 128 MB
5. RAM: 256 MB
6. Scanning System: Progressive
7. Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
8. Min. Illumination: 0.009 Lux@F2.0
9. S/N Ratio: ＞56dB
10. Illumination Distance: 30 m (98.4 ft)
11. Illuminator On/Off Control: Auto/Manual
12. Illuminator Number: 1 (IR LED)
13. Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
14. Built-in Battery: Support SUPERCAP 0.08 F
15. Lens Type: Fixed-focal
16. Lens Mount: M12
17. Focal Length: 3.6 mm
18. Max. Aperture: F2.0
19. Field of View: Horizontal: 87.0°, Vertical: 47.0°, Diagonal: 104.0°
20. Iris Control: Fixed
21. Close Focus Distance: 1.9 m (6.2 ft)
22. DORI Distance: D:106.7m, O:42.7m, R:21.3m, I:10.7m
23. IVS: Tripwire, Intrusion
24. Video Compression: H.265, H.264, H.264B, MJPEG
25. Smart Codec: Yes
26. Video Frame Rate: Main stream: 3840 × 2160 (1 fps–15 fps), 2688 × 1520 (1 fps–25/30 fps)
27. Stream Capability: 2 streams
28. Resolution: 3840 × 2160, 3072 × 2048, 3072 × 1728, ...
29. Bit Rate Control: CBR/VBR
30. Video Bit Rate: H.264: 32 Kbps–8192 Kbps, H.265: 12 Kbps–8192 Kbps

Network and Security

1. Network Port: RJ-45 (10/100 Base-T)
2. SDK and API: Yes
3. Network Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, Bonjour
4. Interoperability: ONVIF (Profile S/Profile G/Profile T), CGI, P2P, Milestone, Genetec
5. User/Host: 20
6. Storage: Dahua Cloud, FTP, SFTP, Micro SD Card (support max. 256 GB), NAS
7. Browser: IE, Chrome, Firefox
8. Management Software: Smart PSS, DSS, DMSS
9. Mobile Client: iOS, Android
10. Image Setting: Brightness, Contrast, Sharpness, Saturation, Gamma
11. OSD Overlay: Time, channel, location
12. Record Mode: Manual record, video detection record, schedule record
13. Record priority: Manual>video detection>schedule
14. Micro SD Card (Max.): 256 GB
15. Default Support: one-click restore
16. User Management: Up to 20 Security
17. User name and password: MAC address, HTTPS, IEEE802.1x, network access control

Certifications and Power

1. Certifications: CE-LVD, CE-EMC, FCC, UL/CUL, CAN/CSA
2. Operating Voltage: 12V DC (±30%); PoE (802.3af)
3. Power Supply: 12 VDC/PoE (802.3af)
4. Power Consumption: <5.5W
5. Operating Temperature: –40°C to +60°C (–40°F to +140°F）
6. Operating Humidity: ≤95%
7. Storage Temperature: –40°C to +60°C (–40°F to +
