DAHUA DH-SD59432XA-HNR 4MP 32x IR IP PTZ CAMERA- KUN TRADERS

SHORT DESCRIPTION:

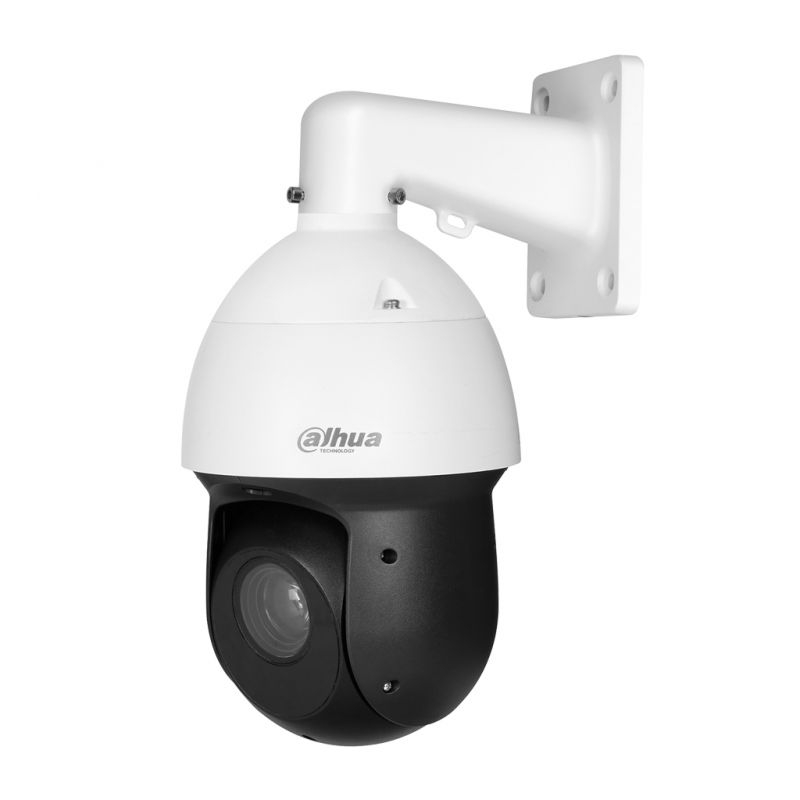

Dahua DH-SD59432XA-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera

• 1/2.8″ STARVIS™ CMOS
• Powerful 32x optical zoom
• Starlight technology
• Max. 25/30fps@4M
• Deep-learning-based auto tracking and perimeter protection
• Support PoE+
• IR distance up to 150 m
• SMD PLUS
• IP66
• DETAIL DESCRIPTION:

Dahua DH-SD59432XA-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor
applications. Together with infrared illumination and Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare.

Starlight Technology

For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

PFA Technology

PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.

Perimeter Protection

Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy.

Environmental

Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with 95% humidity. The camera complies with the IK10 Vandal Resistance impact rating. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

Protection

The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 8KV lightning rating
provides effective protection for both the camera and its structure against lightning.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

SMD PLUS

With Deep-Learning Algorithm, Dahua SMD PLUS filters the motion detection alarm triggered by non-concerned target and recognizes human and vehicle effectively , sending alarms when human and vehicle intrude.

Camera

Image Sensor – 1/2.8″ STARVIS™ CMOS

Pixel – 4MP

Max. Resolution – 2560 (H) x 1440 (V)

ROM – 4GB

RAM – 1GB

Electronic Shutter Speed – 1/3–1/30,000 s

Scanning System – Progressive

Min. Illumination

Color: 0.005 Lux@F1.3

B/W: 0.0005 Lux@F1.3

0 Lux (IR light on)

Illumination Distance – 150 m (492.13 ft)

Illuminator On/Off Control – Zoom Prio/Manual/SmartIR

Illuminator Number – 4

Lens

Focal Length – 4.9 mm–156 mm

Max. Aperture – F1.35–F4.4

Field of View – H: 68.3°–2.2°; V: 38.9°–1.3°; D: 68.3°–1.4°

Optical Zoom – 32x

Focus Control – Auto/Semi-Auto/Manual

Close Focus Distance – 0.1 m–1.5 m (0.33 ft–4.92 ft )

Iris Control – Auto/Manual

PTZ

Pan/Tilt Range – Pan: 0°–360°; Tilt: -10°–+90°

Manual Control Speed – Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s

Preset Speed – Pan: 400°/s; Tilt: 300°/s

Presets – 300

Tour – 8 (up to 32 presets per tour)

Pattern – 5

Scan – 5

Speed Adjustment – Support

Power-off Memory – Support

Idle Motion – Preset/Tour/Pattern/Scanning

Protocol

DH-SD

Pelco-P/D (auto recognition)

General Intelligence

Event Trigger – Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.

IVS – Object abandoned/missing

Artificial Intelligence

Smart Capture – Support human, motor vehicle and non-motor vehicle image capture.

Perimeter Protection – Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Detection – Support

SMD Plus – Support

Auto Tracking – Support

Dahua DH-SD59432XA-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera

Video

Compression – H.265/H.265+/H.264+/H.264/MJPEG (sub stream)

Streaming Capability – 3 streams

Resolution – 4M (2560 × 1440)/3M (2048 × 1536)/1080p (1920 × 1080)/720p (1280 × 960)/D1 (704 × 576/704 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)

Sub stream 1: D1/CIF (1–25/30 fps)

Sub s tream 2: 720 P (1–25/30 fps)

Bit Rate Control – Variable Bit Rate/Constant Bit Rate

Bit Rate – H.265/H.264: 3 kbps–20480 kbps

Day/Night – Auto (ICR)/Color/B/W

BLC – Support

WDR – 120dB

HLC – Support

White Balance – Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control – Auto/Manual

Noise Reduction – 2D/3D

Motion Detection – Support

Region of Interest (RoI) – Support

Image Stabilization – Electronic

Defog – Support

Digital Zoom – 16x

Flip – 0°/180°

Privacy Masking – Up to 24 areas

Certification

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB, ANSI C63.4-2014

Audio

Compression – G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729;PCM; MPEG2-Layer2

Port

Audio I/O – 1 (Line in; bare wire)/1 (Line out; bare wire)

Alarm I/O – 2/1

Network

Ethernet – RJ-45 (10/100Base-T)

Protocol – IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP;UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP;RTMP

Interoperability – ONVIF Profile S&G&T; CGI

Streaming Method – Unicast/Multicast

User/Host – 19 (Total bandwidth 48M)

Storage – FTP; Micro SD card (256G); P2P

Browser

IE7 and newer versions

Chrome 42 and older versions

Firefox 52 and older versions

Safari

Management Software

Smart Player

Smart PSS

DSS

Easy4ip

Mobile Phone – IOS/Android

Power

Power Supply

DC 24 V/2.5 A ± 25%;

PoE+(802.3at)

Power Consumption

11 W

24 W (IR on)

Environment

Operating Temperature – –40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity – ≤ 95%RH

Protection – IP66; TVS 6000 V lightning protection; surge protection

Structure

Dimensions – Φ186 mm x 309 mm (7.32″ × 12.17″)

Net Weight – 3.9 kg (8.60 lb)

Gross Weight – 7.01 kg (15.45 lb)

Casing – Metal
