DH-PFS3008-8ET-L

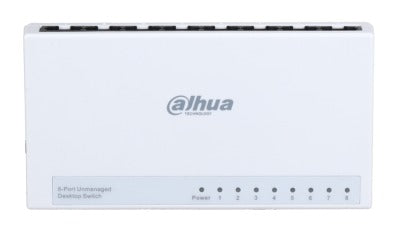

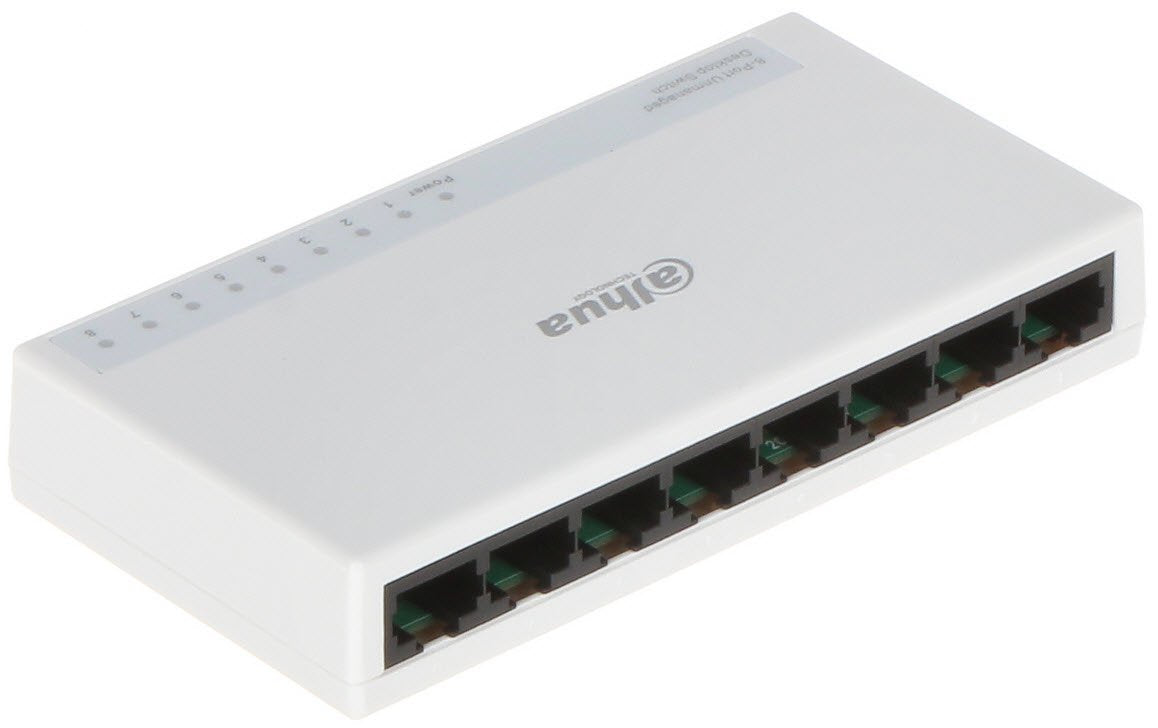

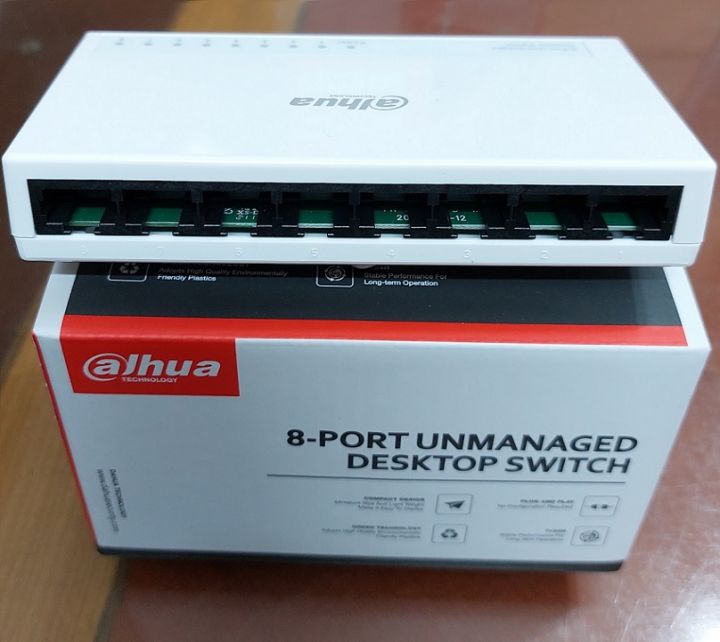

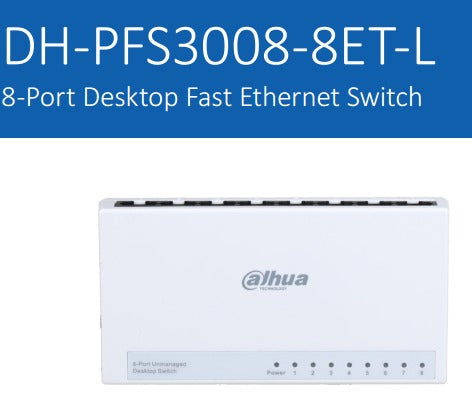

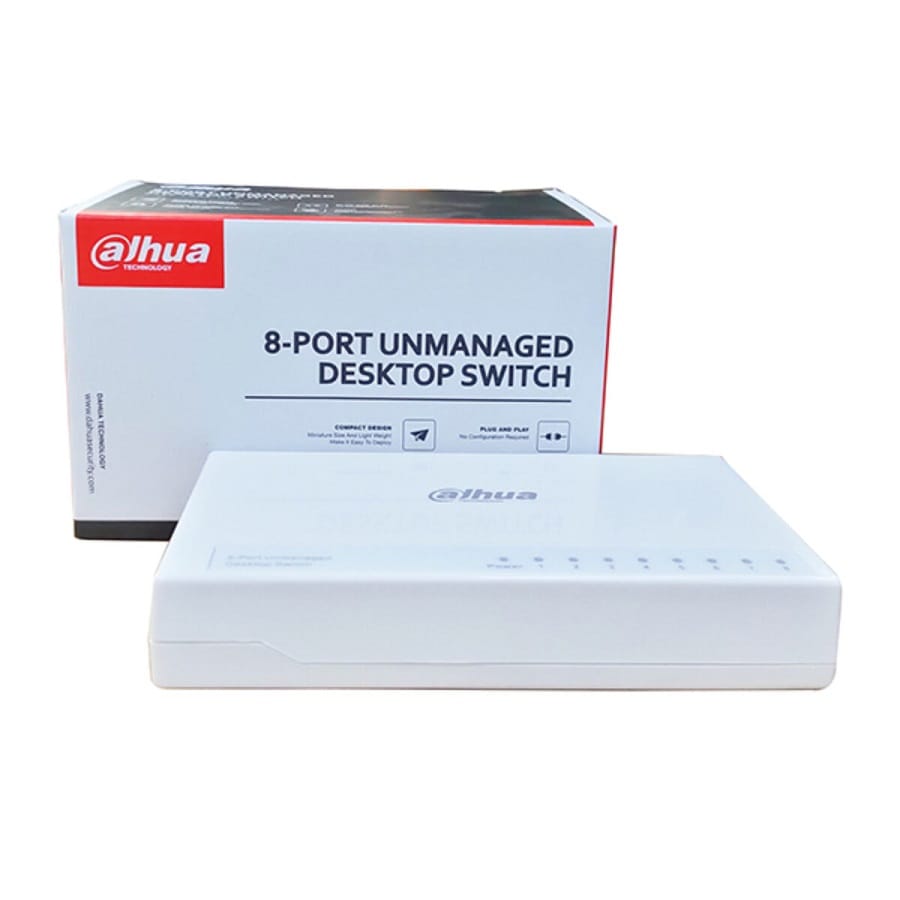

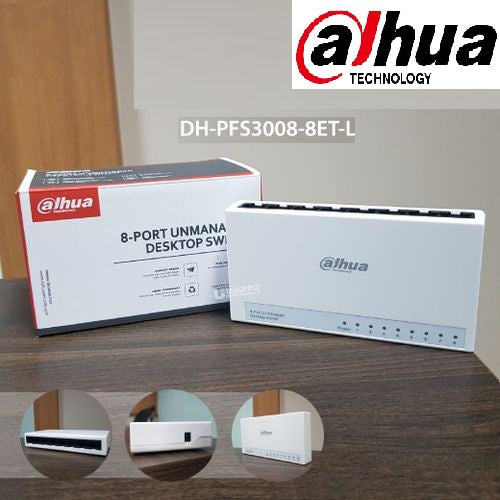

8-Port Desktop Fast Ethernet Switch
SPECIFICATION:
-
Compact design: Miniature size and light weight make it easy to deploy
-
Plug and play: No configuration required
-
Green technology: Adopts high quality environmentally friendly plastics
-
7×24H: Stable performance for long-term operation
System Overview
8 × 10/100 Mbps adaptve ports, highly integrated design, compact,
portable, easy to operate, suitable for small and medium ofce and
home networks.
Applicaton
The product is applicable to small and medium ofce and home
networks.
Technical Specificaton |
|
| Performance | |
| Layer | Layer 2 |
| Managed | No |
| Hardware | |
| Standard Power Supply | Yes |
| PoE | No |
| Ethernet Port | 8 |
| Ethernet Port Rate | 100 Mbps |
| Power Supply | 5V/500mA DC |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | 10%–90% |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Humidity | 10%–90% |
| Power Consumption | Idling: 0.69W Full load: 1.5W |
| Performance | |
| Switching Capacity | 1.6 Gbps |
| Packet Forwarding Rate | 1.19 Mpps |
| Packet Buffer Memory | 448 Kbits |
| MAC Table Size | 1K |
| Standards Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x |
General |
|
| ESD | Air discharge: 8kV Contact discharge: 4kV |
| Thunderproof | Common mode: 2kV |
| Net Weight | 0.09 kg (0.20 lb) |
| Gross Weight | 0.2 kg (0.44 lb) |

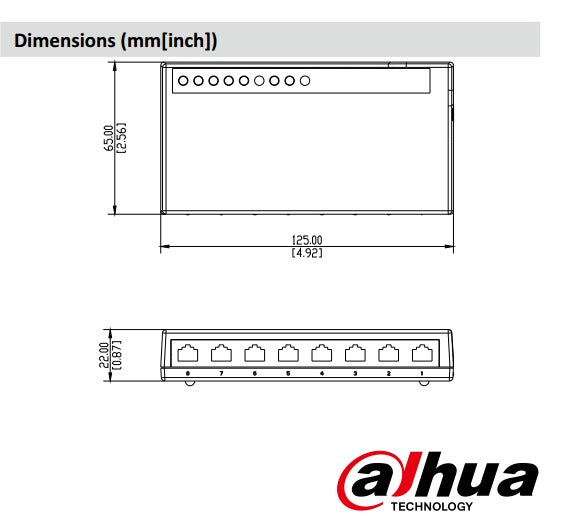

| Dimensions | 125 mm × 65 mm × 22 mm (4.92" × 2.56" × 0.87" ) |
| Packaging Dimensions | 128 mm × 77 mm × 78 mm (5.04" × 3.03" × 3.07" ) |
