DAHUA DH-PFS3010-8ET-65 10-PORT FAST ETHERNET SWITCH wITH 8-PORT PoE - KUN TRADER

DAHUA DH-PFS3010-8ET-65 10-PORT FAST ETHERNET SWITCH wITH 8-PORT PoE - KUN TRADER

Rs.0.00 PKR
Rs.0.00 PKR
Sale Sold out
Shipping calculated at checkout.

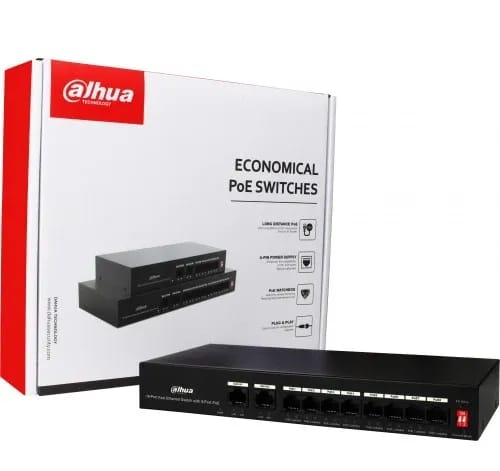

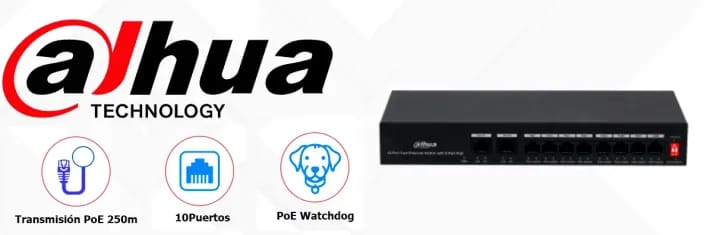

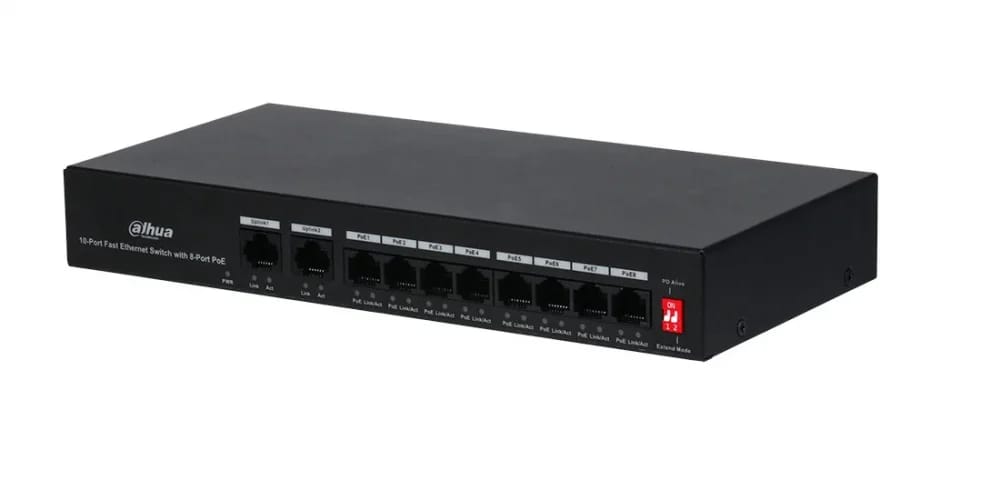

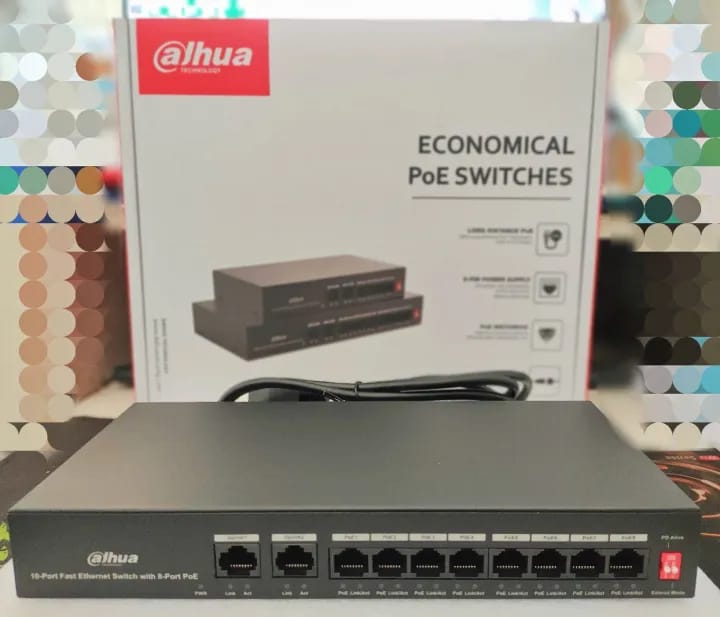

Dahua PFS3010-8ET-65

10-Port Fast Ethernet Switch with 8-Port PoE


SPECIFICATION:

  • Support eight 10/100M PoE power supply ports, and two 10/100M  uplink ports
  • Support 802.3af and 802.3at standards
  • Operating Temperature: -10°C to +55°C
  • Support 250 m long distance PoE transmission
  • Support PoE watchdog
Hardware
Data Transmission Port 8 PoE ports with 10/100 Mbps Base-TX
2 uplink ports with 10/100Mbps Base-TX
Power Supply AC100–AC240V
Operating Temperature -10°C to +55°C (-14°F–131°F)
Operating Humidity 10%–90%
Power Consumption Idling: 1.0W
Full load: 65W
PoE
PoE Budget Port1-8 ≤30W, whole PoE budget ≤65W
PoE Standard IEEE802.3af, IEEE802.3at
PoE Pin Assignment PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)
Performance
Switching Capacity 2.0 Gbps
Packet Forwarding Rate 1.49 Mpps
MAC Table Size 2 K
Jumbo Frame 2048 byte
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X
Performance
ESD Air discharge: 8kV
Contact discharge: 6kV
Thunderproof Common mode: 6kV
Differential mode: 4kV
Net Weight 0.76 kg (1.68 lb)
Gross Weight 1.3 kg (2.87 lb)
Product Dimensions
(W × L × H)		 242.5 mm × 122.9 mm × 35.0 mm (9.55″ × 4.84″ × 1.38″)
Packaging Dimensions
(W × L × H)		 Packing box: 303 mm × 262 mm × 72 mm (11.92″ ×10.31″ × 2.83″)



Protective box: 549 mm × 325 mm × 397 mm (21.61″ ×12.80″ × 15.63″)
