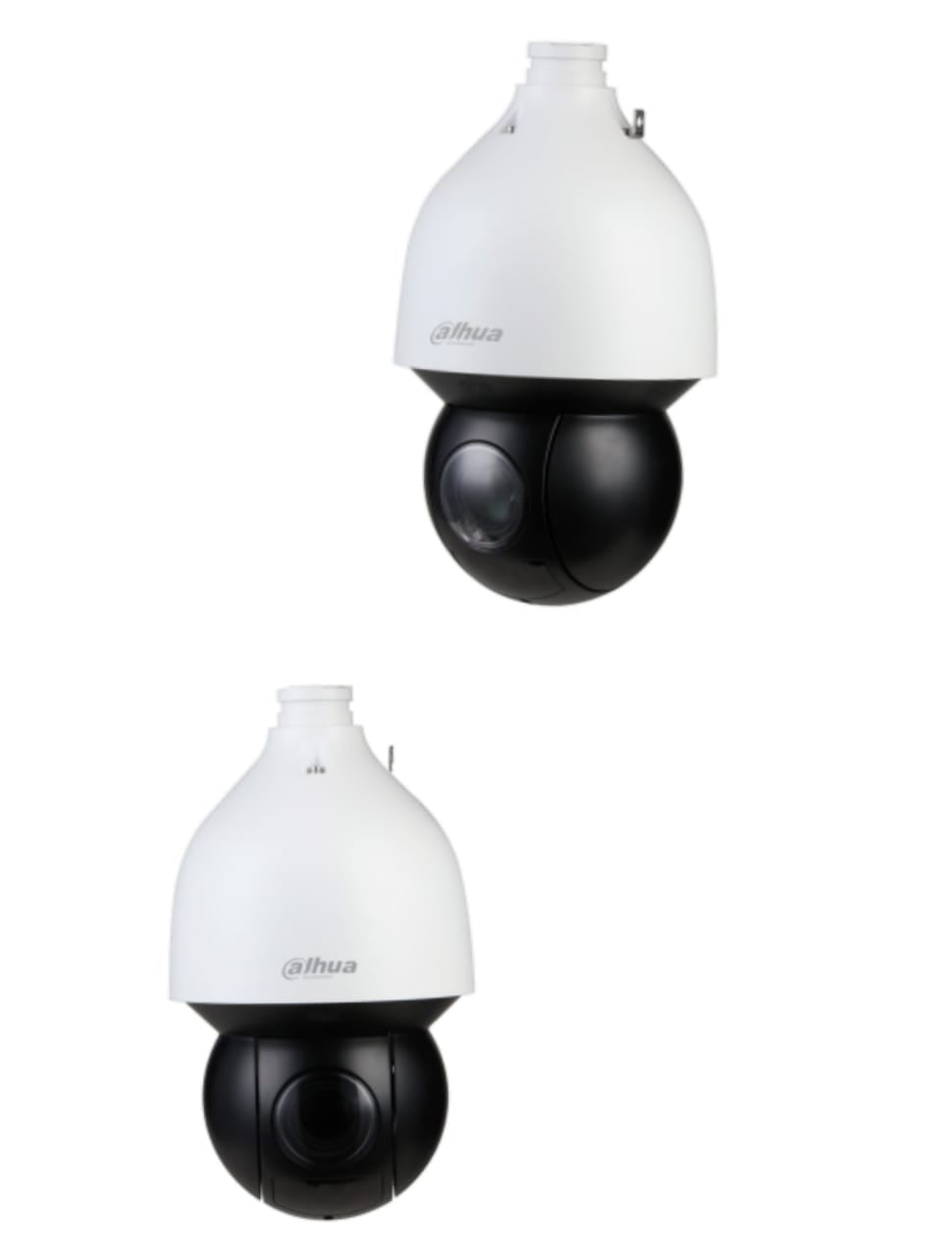

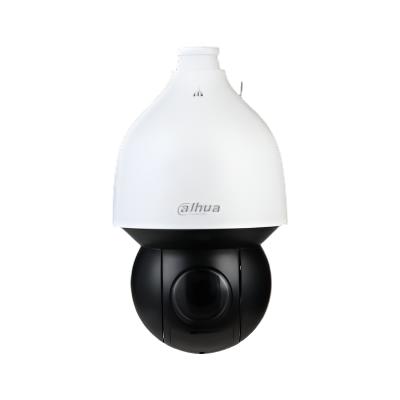

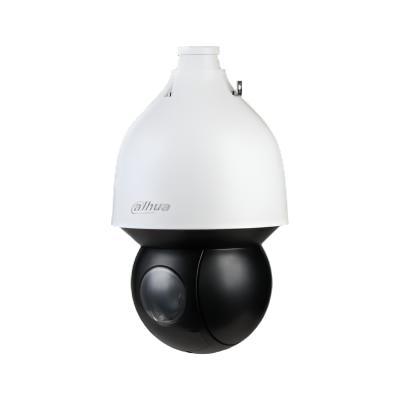

DH-SD5A232GB-HNR

> 1/2.8" 2Megapixel STARVIS™ CMOS.

> 32x optical zoom.

> Starlight technology.

> Max.50/60fps@2M.

> IR distance up to 150 m.

> Auto-tracking 3.0.

> Perimeter protection.

> Face detection.

> SMD 4.0.

> IP67, IK10.

DETAIL DESCRIPTION:

Camera

1. Image Sensor: 1/2.8" CMOS
2. Pixel: 2 MP
3. Max Resolution: 1920x1080
4. Electronic Shutter Speed: 1/1s-1/30,000s
5. Scanning System: Progressive
6. Min. Illumination: Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on)
7. Illumination Distance: 150m (492.13ft)
8. Zoom: 32x optical zoom
9. Focus Control: Auto, semi-auto, manual
10. Close Focus Distance: 0.1m-1.5m (0.33ft-4.92ft)

PTZ

1. Pan/Tilt Range: Pan: 0°-360°, Tilt: -15°-90°
2. Manual Control Speed: Pan: 0.1°/s-300°/s, Tilt: 0.1°/s-200°/s
3. Preset Speed: Pan: 400°/s, Tilt: 300°/s
4. Preset: 300
5. Tour: 8 (up to 32 presets per tour)
6. Pattern: 5
7. Scan: 5

Intelligence

1. Video Metadata: Detects motor and non-motor vehicles, faces, and human bodies
2. IVS (Perimeter Protection): Tripwire, intrusion, climbing fences, loitering detection, abandoned/missing object, fast moving, parking detection, people gathering, vehicle/human alarm classification, linkage tracking
3. Face Detection: Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement
4. People Counting: Supports tripwire for people counting at entrances and exits, counting the number of people staying in an area and queuing in an area
5. Auto Tracking: Yes
6. SMD: SMD 4.0
7. Acupick: Uses deep learning algorithms to accurately match targets
8. Auto Patrol: Triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets

Video

1. Video Compression: H.264H, H.264B, Smart H.265+, H.264, H.265, MJPEG (Sub Stream 1), Smart H.264+
2. Streaming Capability: 3 streams
3. Resolution: 1080p, 1.3M, 720p, D1, VGA, CIF
4. Frame Rate: Main stream: 1080p/1.3M/720p@(1-50/60fps), Sub stream 1: D1/VGA/CIF@(1-25/30fps), Sub stream 2: 1080p/1.3M/720p@(1-25/30fps)
5. Bit Rate Control: CBR/VBR

Audio

1. Audio Compression: PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723
2. Audio I/O: 1/1

Network

1. Network Port: RJ-45 (10/100 Base-T)
2. Network Protocol: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP
3. Interoperability: ONVIF (Profile S&G&T), CGI, SDK
4. Streaming Method: Unicast/Multicast
5. User/Host: 20 (total bandwidth: 64M)

Storage

1. Micro SD card (Up to 512GB)
2. FTP
3. NAS

Management Software

1. DSS
2. DMSS
3. Mobile Client: iOS, Android

Certification

1. CE: EN55032/EN55024/EN50130-4
2. FCC: Part15 subpartB, ANSI C63.4-2014
3. UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Power

1. Power Supply: 24 VDC, 2.5 A ± 25%
2. PoE+: 802.3at
3. Power Consumption:
