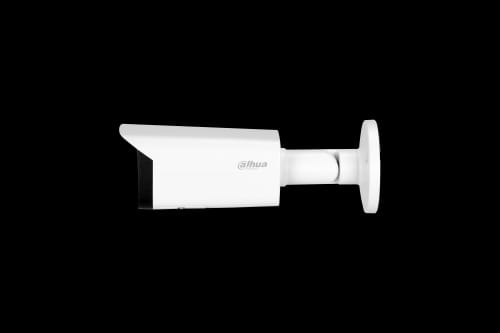

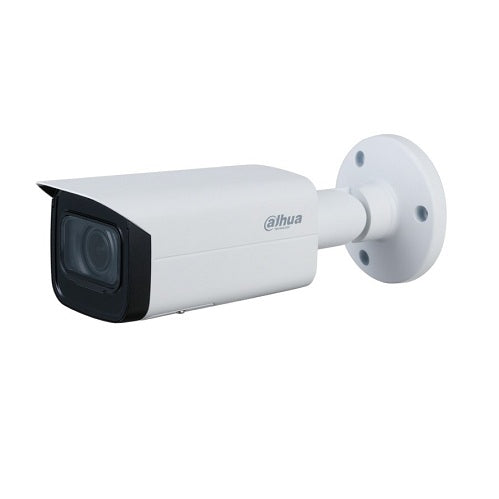

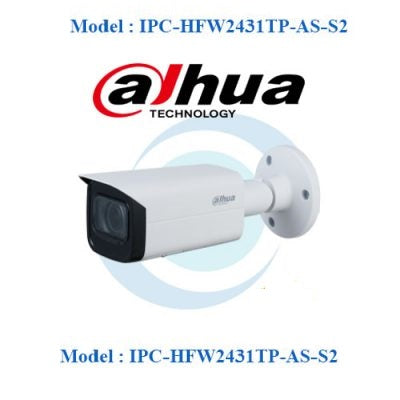

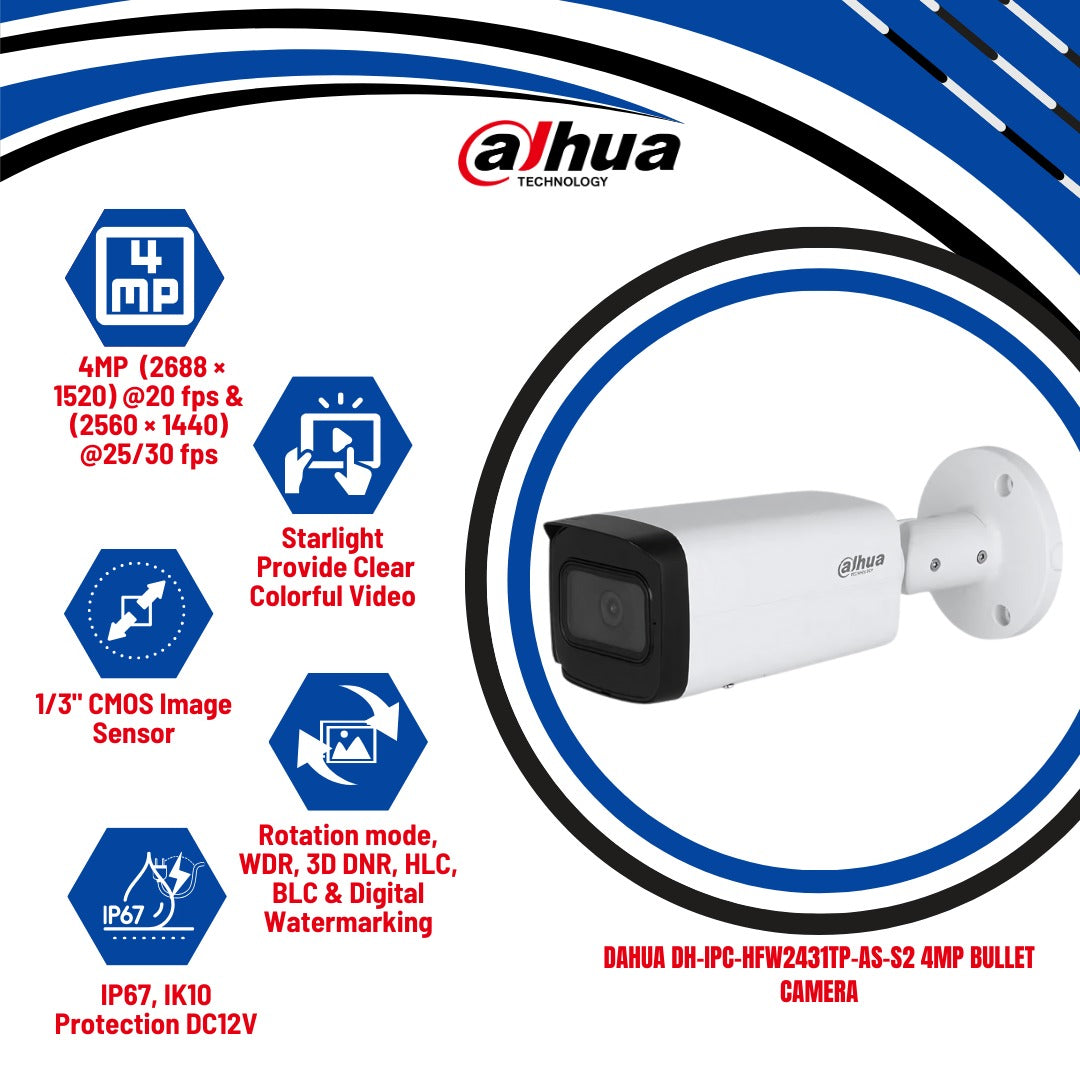

DH-IPC-HFW2431TP-AS-S2 | Dahua 4MP Bullet Camera | KUN TRADERS

MAIN FEATURES:

Camera Specifications

1. Image Sensor: 1/3" CMOS
2. Pixel: 4 MP
3. Max Resolution: 2688 (H) × 1520 (V)
4. ROM: 128 MB
5. RAM: 128 MB
6. Scanning System: Progressive
7. Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
8. Min. Illumination: 0.008 Lux@F1.6
9. S/N Ratio: ＞56 dB
10. Illumination Distance: 30m (98.4 ft)
11. Illuminator On/Off Control: Auto/Manual
12. Illuminator Number: 4 (IR LED)
13. Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
14. Built-in Battery: Support SUPERCAP 0.08 F
15. Lens Type: Fixed-focal
16. Lens Mount: M12
17. Focal Length: 3.6 mm
18. Max. Aperture: F1.6
19. Field of View: Horizontal: 84°, Vertical: 45°, Diagonal: 100°
20. Iris Control: Fixed
21. Close Focus Distance: 1.4 m (4.6 ft)
22. DORI Distance: D:85.4m, O:34.2m, R:17.1m, I:8.5m
23. IVS: Tripwire, Intrusion
24. Video Compression: H.265, H.264, H.264B, MJPEG (only supported by sub stream)
25. Smart Codec: Smart H.265+, Smart H.264+
26. Video Frame Rate: Main stream: 2688 × 1520 (1 fps–20 fps), 2560 × 1440 (1 fps–25/30 fps)
27. Stream Capability: 2 streams
28. Resolution: 2688 × 1520, 2560 × 1440, 3M (2048 × 1536), ...
29. Bit Rate Control: CBR/VBR
30. Video Bit Rate: H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps

Network and Security

1. Network Port: RJ-45 (10/100 Base-T)
2. SDK and API: Yes
3. Network Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, Bonjour
4. Interoperability: ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P
5. User/Host: 20
6. Storage: Dahua Cloud, FTP, SFTP, Micro SD Card (support max. 256 GB), NAS
7. Browser: IE, Chrome, Firefox
8. Management Software: Smart PSS, DSS, DMSS
9. Mobile Client: iOS, Android
10. Image Setting: Brightness, Contrast, Sharpness, Saturation, Gamma
11. OSD Overlay: Time, channel, location
12. Record Mode: Manual record, video detection record, schedule record, alarm record
13. Record priority: Manual>external alarm>video detection>schedule
14. Micro SD Card (Max.): 256 GB
15. Default Support: one-click restore
16. User Management: Up to 20 Security
17. User name and password: MAC address, HTTPS, IEEE802.1x, network access control

Certifications and Power

1. Certifications: CE-LVD, CE-EMC, FCC, UL/CUL, CAN/CSA
2. Operating Voltage: 12V DC (±30%); PoE (802.3af)
3. Power Supply: 12 VDC/PoE (802.3af)
4. Power Consumption: <7.7W
5. Operating Temperature: –40°C to +60°C (–40°F to +140°F）
6. Operating Humidity: ≤95%
7. **Storage Temperature
