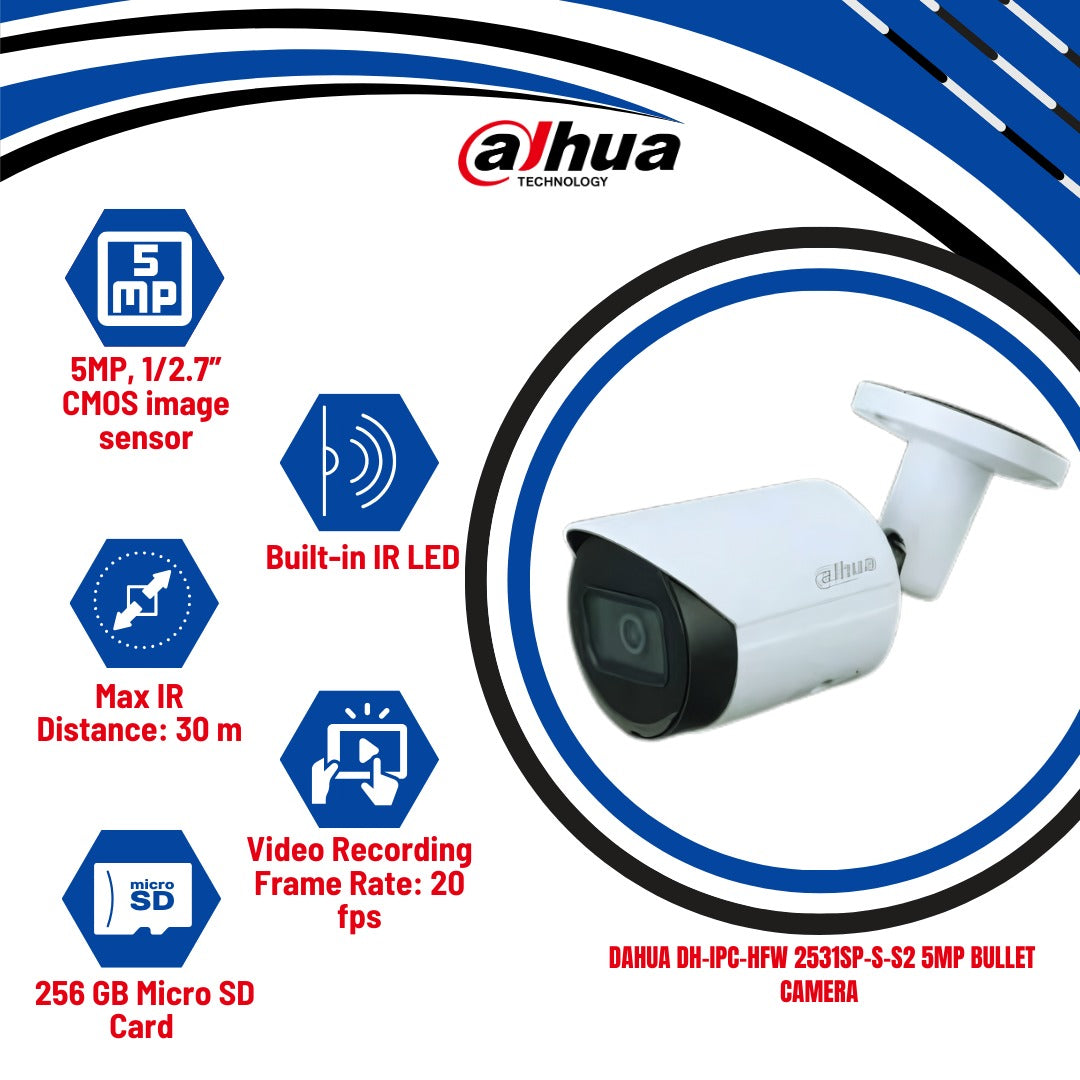

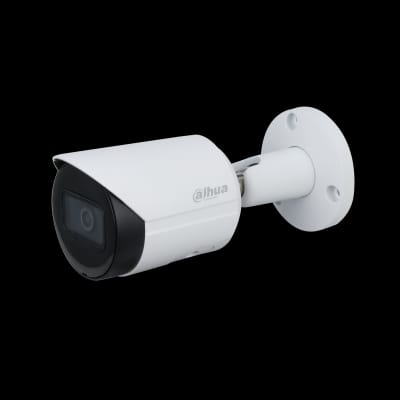

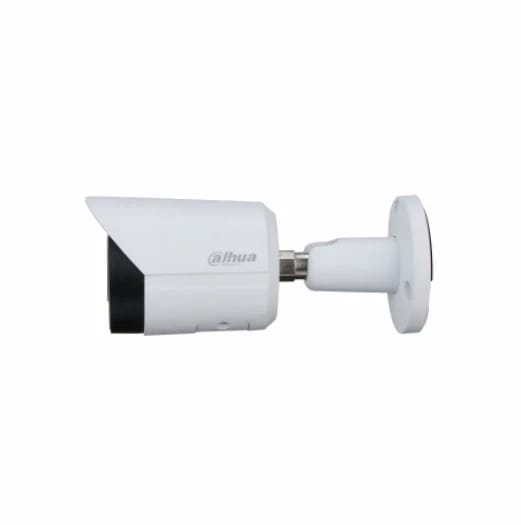

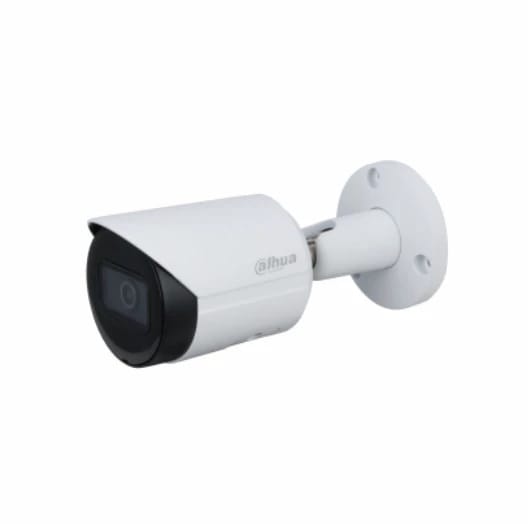

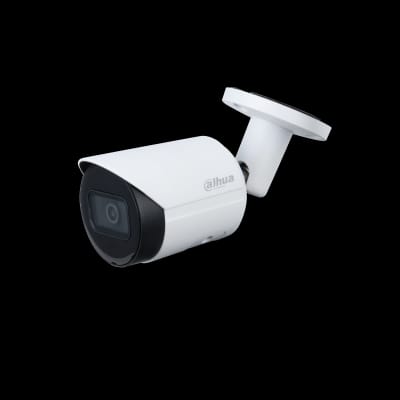

DH-IPC-HFW 2531SP-S-S2 | Dahua 5MP Bullet Camera | KUN TRADERS

FEATURES:

Camera Specifications

1. Image Sensor: 1/2.7" CMOS
2. Pixel: 5 MP
3. Max Resolution: 2592 (H) × 1944 (V)
4. ROM: 128 MB
5. RAM: 256 MB
6. Scanning System: Progressive
7. Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
8. Min. Illumination: 0.01 Lux@F1.6
9. S/N Ratio: ＞56 dB
10. Illumination Distance: 30 m (98.43 ft)
11. Illuminator On/Off Control: Auto/Manual
12. Illuminator Number: 1 (IR LED)
13. Pan/Tilt/Rotation Range: Horizonal: 0°–360°, Vertical: 0°–90°, Rotation: 0°–360°
14. Built-in Battery: Support SUPERCAP 0.08F
15. Lens Type: Fixed-focal
16. Lens Mount: M12
17. Focal Length: 2.8 mm; 3.6 mm
18. Max. Aperture: F1.6
19. Field of View: Horizontal: 84.0°; Vertical: 58.0°; Diagonal: 110.0°
20. Iris Control: Fixed
21. Close Focus Distance: 1.6 m; 0.9 m
22. DORI Distance: D: 56 m; O: 22.4 m; R: 11.2 m; I: 5.6 m
23. IVS: Tripwire; intrusion
24. Video Compression: H.265; H.264; H.264B; MJPEG
25. Smart Codec: Yes
26. Video Frame Rate: Main stream: 2592 × 1944 (1 fps-20 fps); Sub stream: 704 × 576 (1 fps-25 fps)
27. Stream Capability: 2 streams
28. Resolution: 2592×1944; 2688×1520; 3M; 2304×1296; 1080p; 1.3M; 720p; D1; VGA; CIF
29. Bit Rate Control: CBR/VBR
30. Video Bit Rate: H.264: 32 Kbps ~ 8192 Kbps; H.265: 12 Kbps ~ 8192 Kbps

Network and Security

1. Network Port: RJ-45 (10/100 Base-T)
2. SDK and API: Yes
3. Network Protocol: HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP; Bonjour
4. Interoperability: ONVIF (Profile S/Profile G); CGI; P2P; Milestone; Genetec
5. User/Host: 20
6. Storage: Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
7. Browser: IE; Chrome; Firefox
8. Management Software: DMSS; DSS; Smart PSS
9. Mobile Client: Android; iOS
10. Image Setting: Gamma; Saturation; Sharpness; Contrast; Brightness
11. OSD Overlay: Time; channel; location
12. Record Mode: Manual record; video detection record; schedule record
13. Record priority: Manual > video detection > schedule
14. Default Support: one-click restore
15. User Management: Up to 20 Security

Certifications and Power
