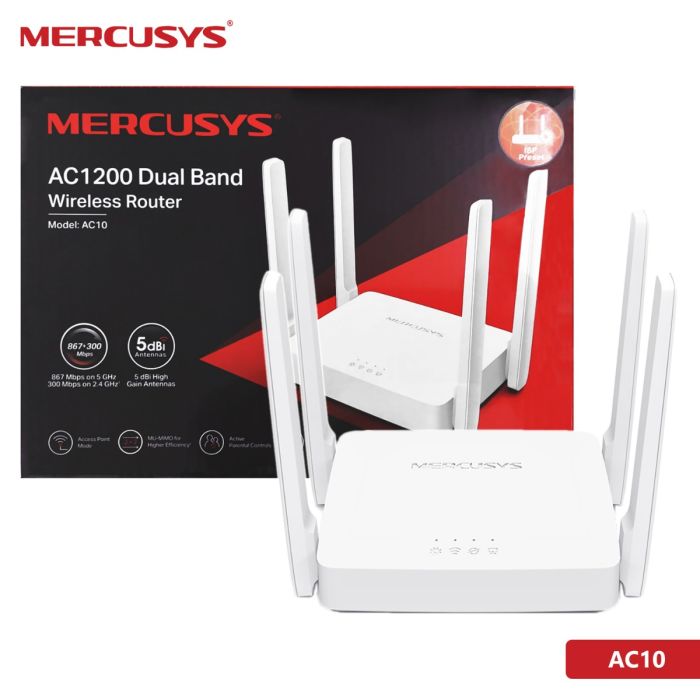

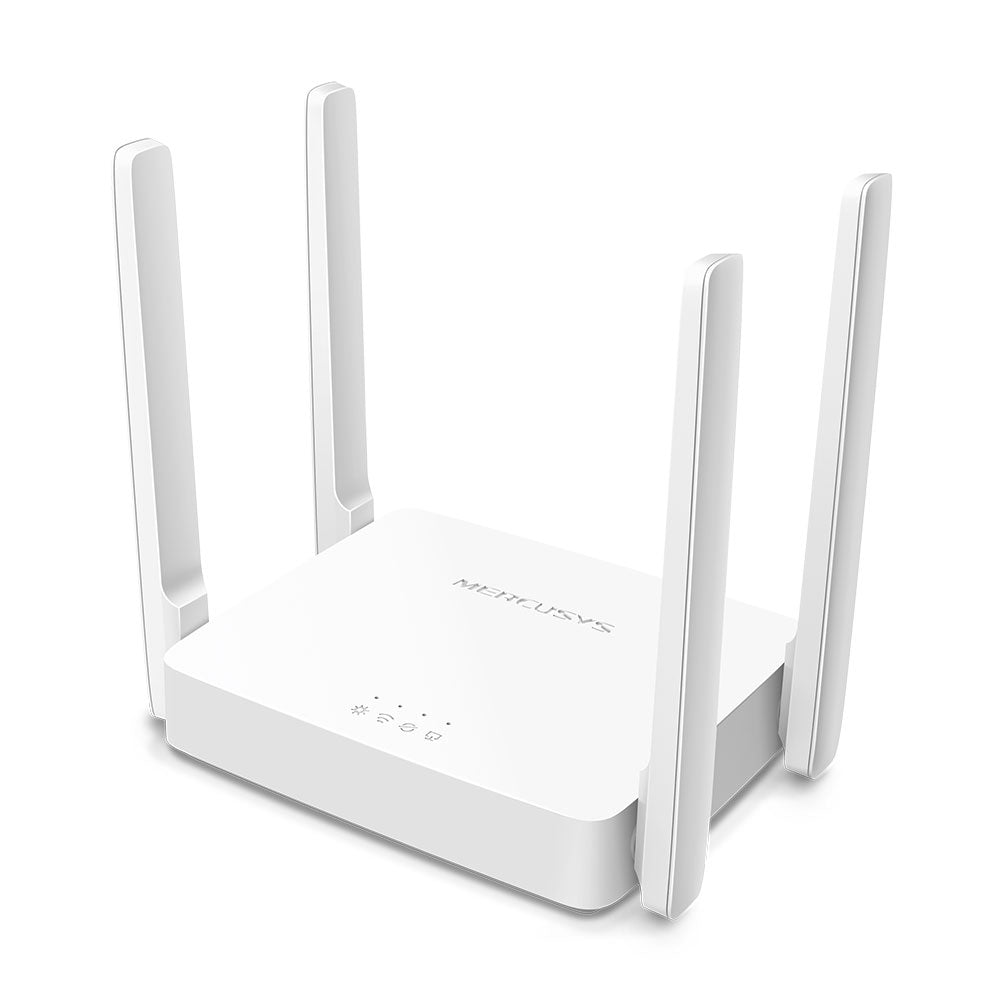

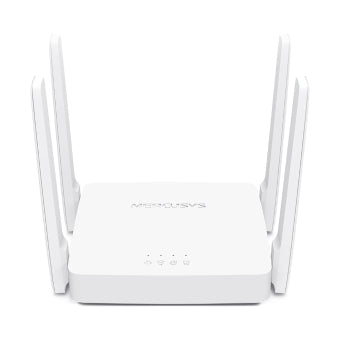

MERCUSYS AC10 AC1200 WIRELESS DUAL BAND ROUTER - KUN TRADERS

SPECIFICATION:

Non-Stop Entertainment with Dual-Band Wi-Fi:

Complying with the powerful 802.11ac standard, AC10 delivers blazing-fast Wi-Fi speeds up to 1200 Mbps, which is 3× faster than the speed of the previous 802.11n standard. Choose the 300 Mbps (2.4 GHz) for internet surfing, email, and social media or 867 Mbps (5 GHz) for bandwidth-intensive tasks like HD streaming and gaming.

Broader Coverage:
Four external 5dBi antennas powered with advanced antenna technology provide users with larger wireless coverage throughout your home or office. With the combination of Beamforming Technology, the AC10 can detect the location of your connected devices and concentrate wireless signal strength towards them, making your connection more stable.

MU-MIMO Technology:
With MU-MIMO, AC10 communicates with multiple devices at the same time to allow connected devices to achieve faster speeds than standard AC routers, increasing overall network throughput.

Easy Installation:
With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your AC10 in minutes.

Ready for Smooth IPTV:
IGMP Proxy/Snooping, Bridge, and Tag VLAN technology allow your streaming activities to pass through fast LAN ports, optimizing Hi-Resolution videos.

SPECIFICATION:

WirelessWireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency
2.4 GHz, 5 GHz

Signal Rate
Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz

Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security
WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Wireless Functions
Enable/Disable Wireless Radio, WMM

SoftwareOperation Modes
Router Mode, Access Point Mode

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Access Control, Local Management, Remote Management

DHCP
Server, DHCP Client List

NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security
SPI Firewall, IP and MAC Address Binding

Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network

HardwareDimensions (W X D X H)
4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)

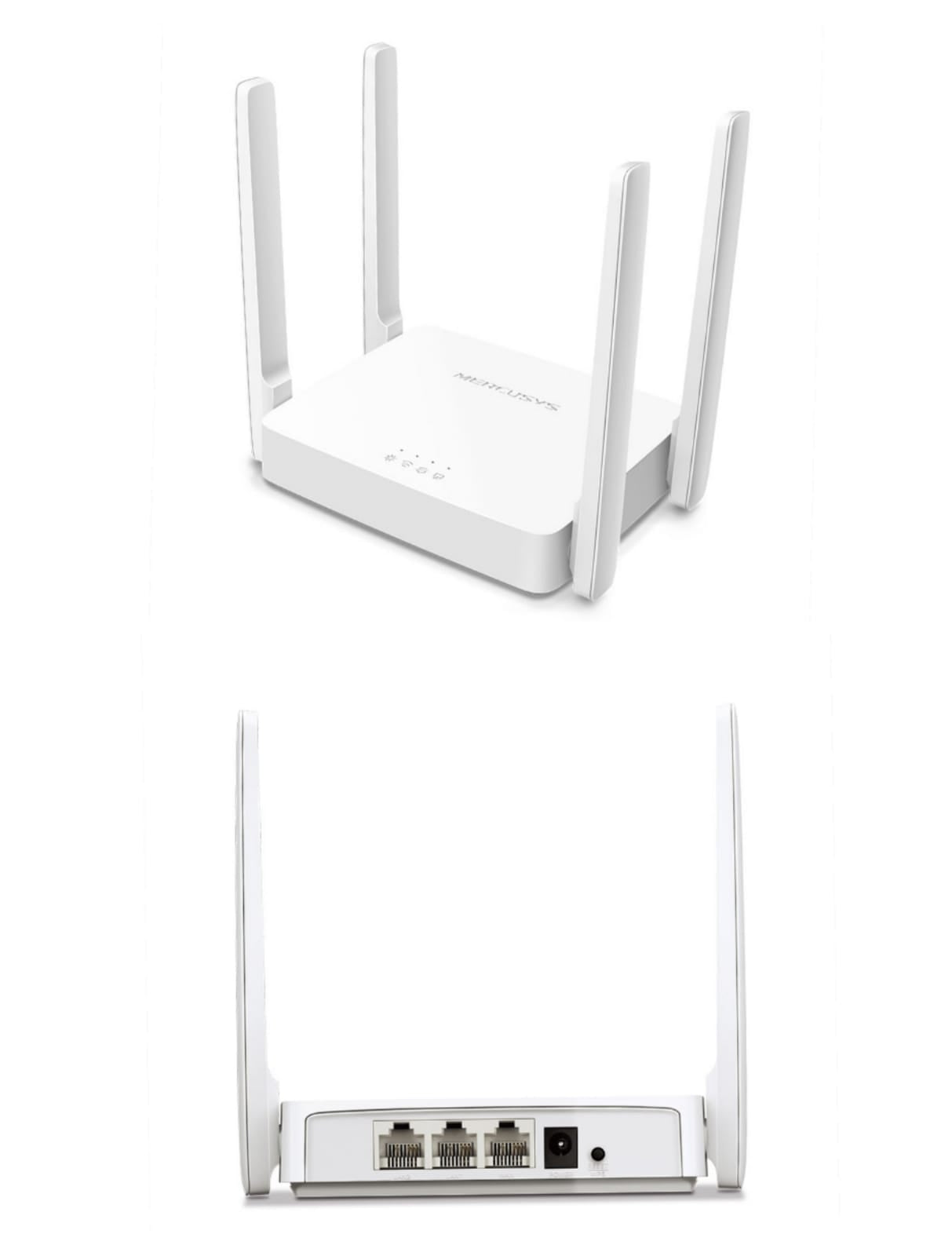

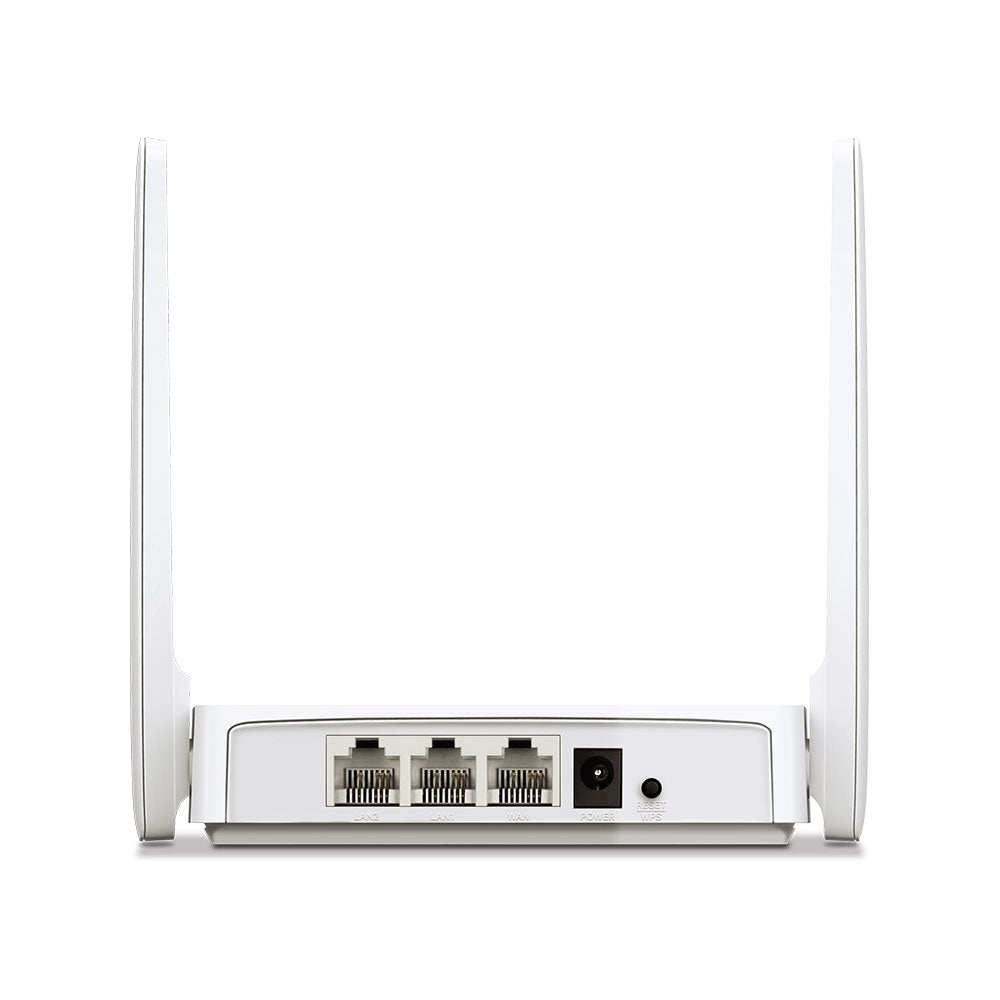

Interfaces
1× 10/100 Mbps WAN Port
2× 10/100 Mbps LAN Ports

Button
Reset/WPS Button

External Power Supply
9V/0.85A

Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas

Others Package Contents
AC1200 Wireless Dual Band Router AC10
Power Adapter
Quick Installation Guide
RJ45 Ethernet Cable

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
