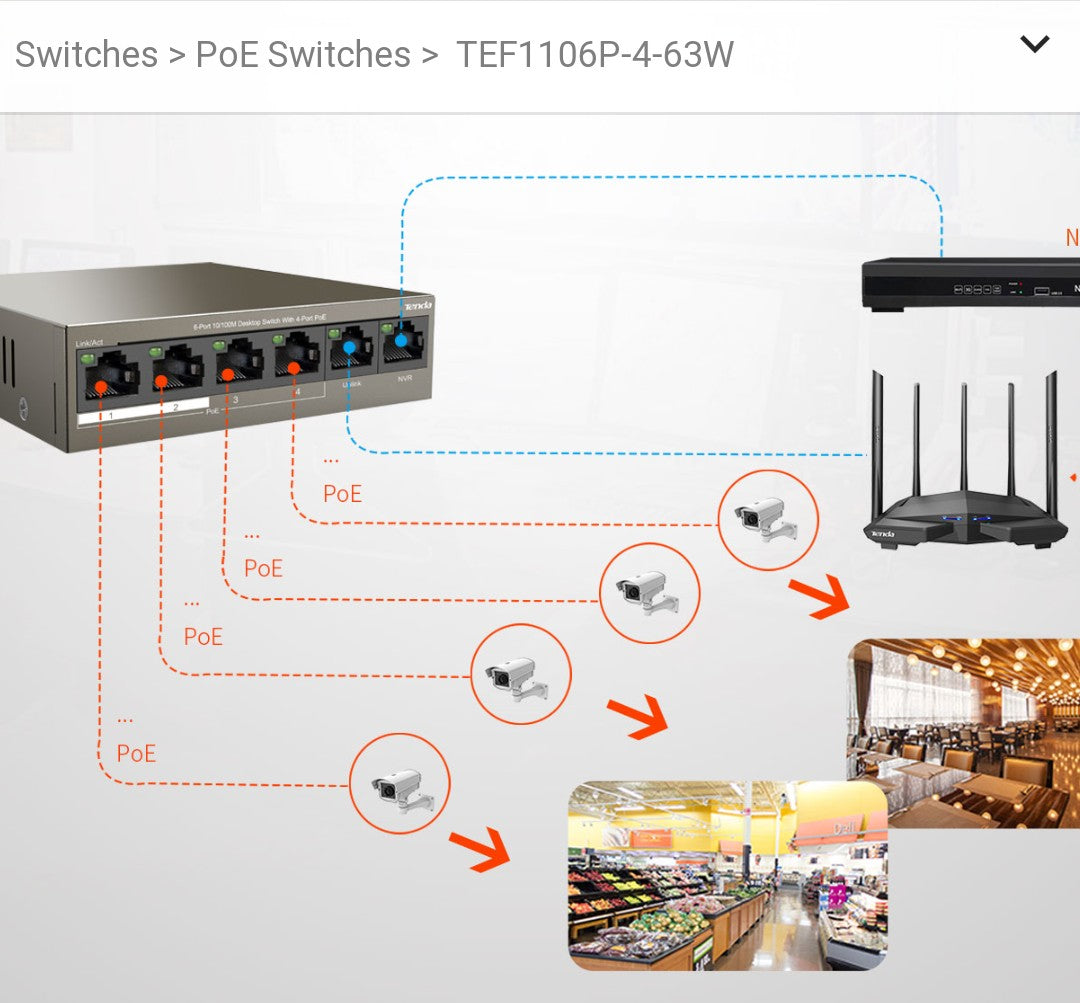

TEF1106P-4-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extend mode and QoS function, TEF1106P-4-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.

Network standards	IEEE 802.3/3u/3x, IEEE 802.3af/at
LED Indicator	6 * Link/Ack LED indicators 1 * Power LED indicator

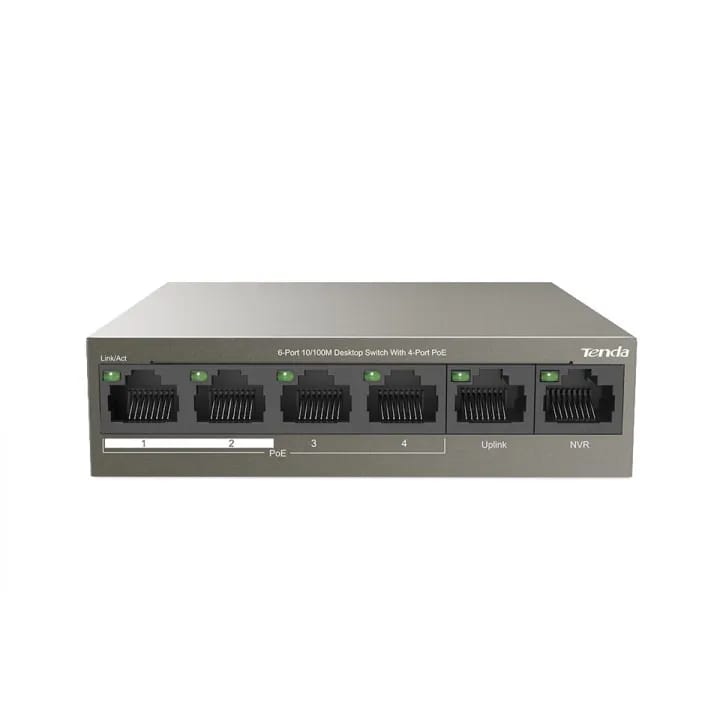

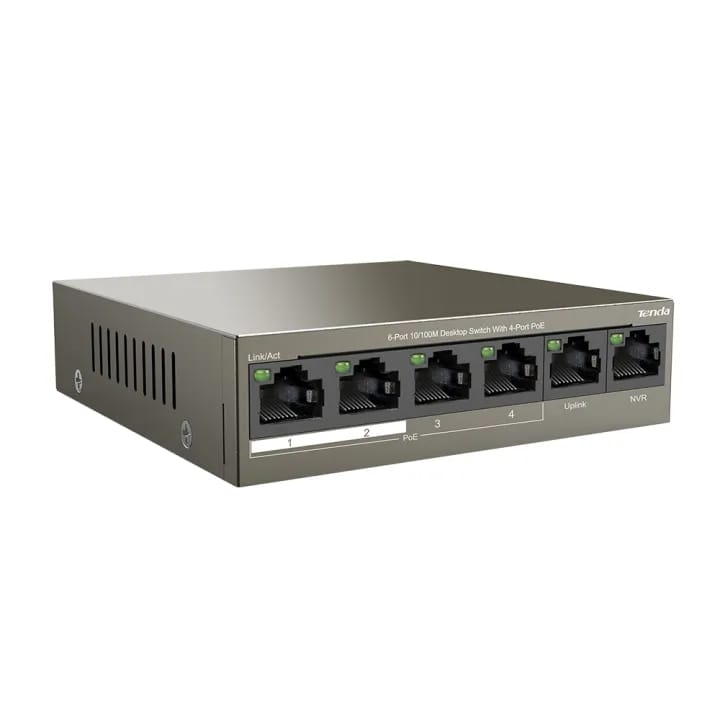

Interfaces	4*10/100 Base-TX Ethernet ports (Data/Power) 2*10/100 Base-TX Ethernet ports (Data)
Transmission media	Recommended: CAT5/5e UTP or better
Dimension	100.0mmx100.0mmx26.0mm

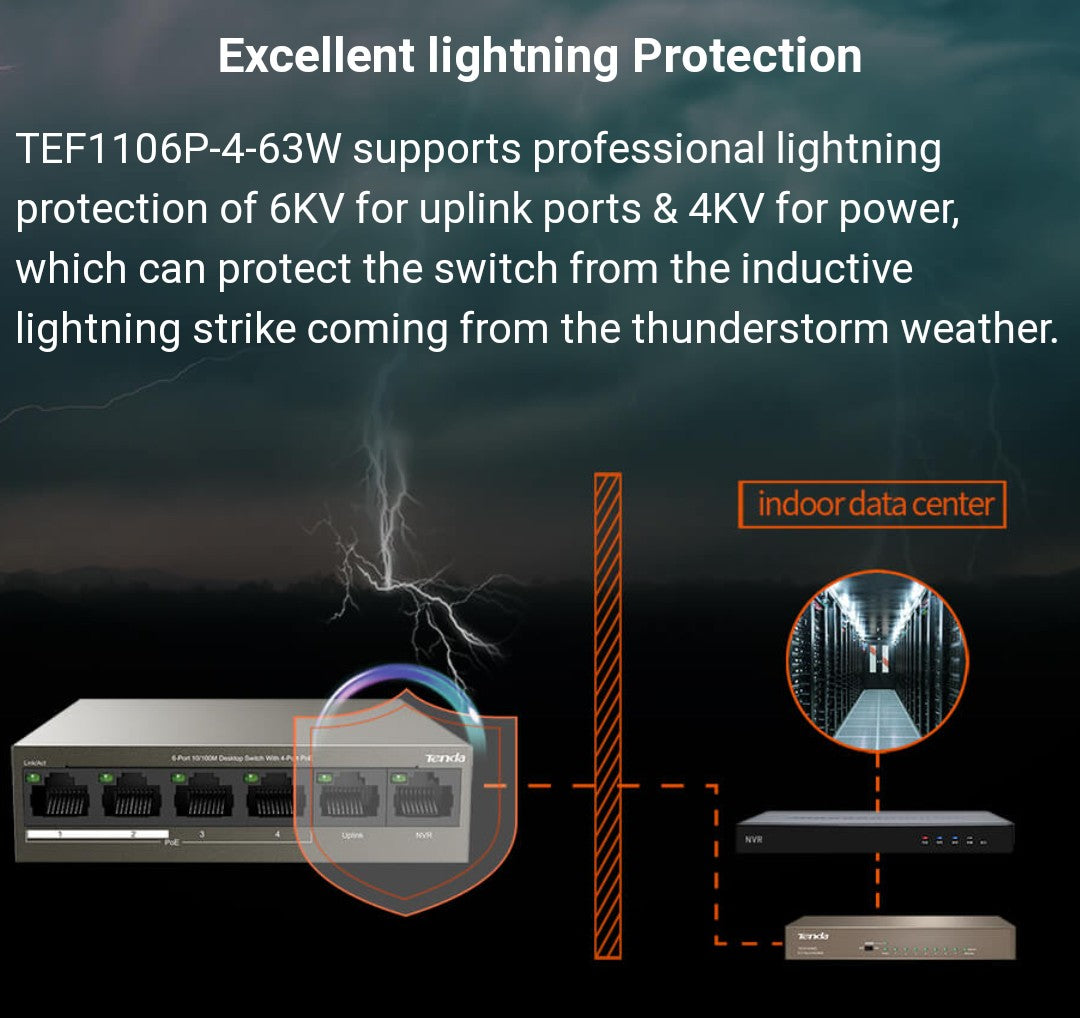

Level of protection	Lightning protection for ports: 6KV Lightning protection for power: 4KV ESD: Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	1.2 Gbps
Packet forwarding rate	0.89Mpps
Buffer	448K
MAC address table	1 K
PoE budget	Single port: AF: 15.4W, AT: 30W Whole device: 63W
Power consumption	/
Input voltage	100－240V AC 50/60Hz 51V /1.25A DC（Power Adapter ）
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Environment	Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certification	FCC、CE、RoHS

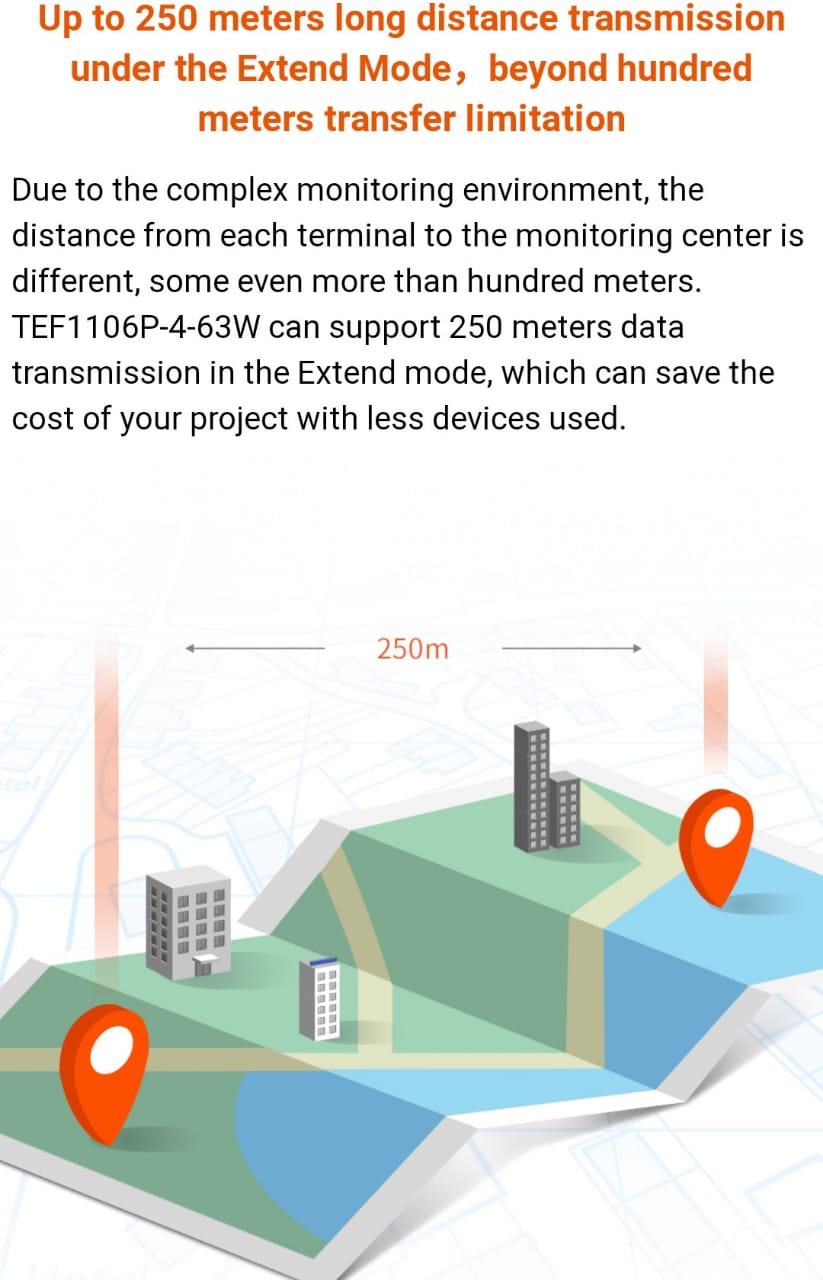

Funtions	Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. Extend Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively (10Mbps auto-negotiation).And the delivery distance of powering and network data is up to 250m (10Mbps).
