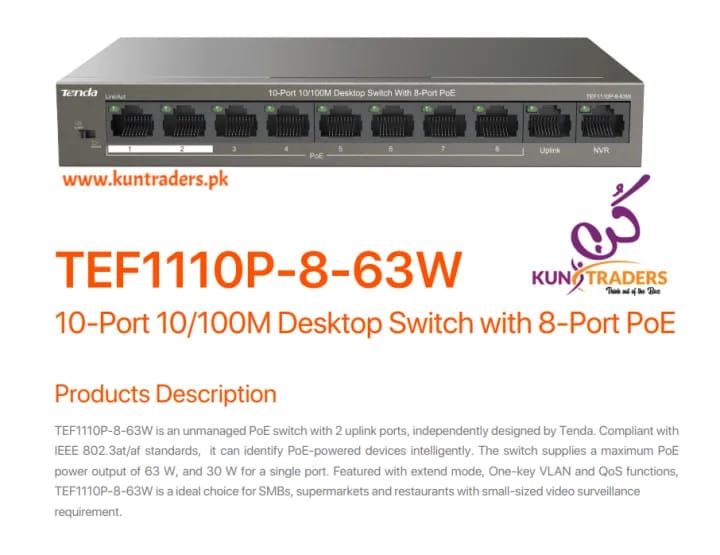

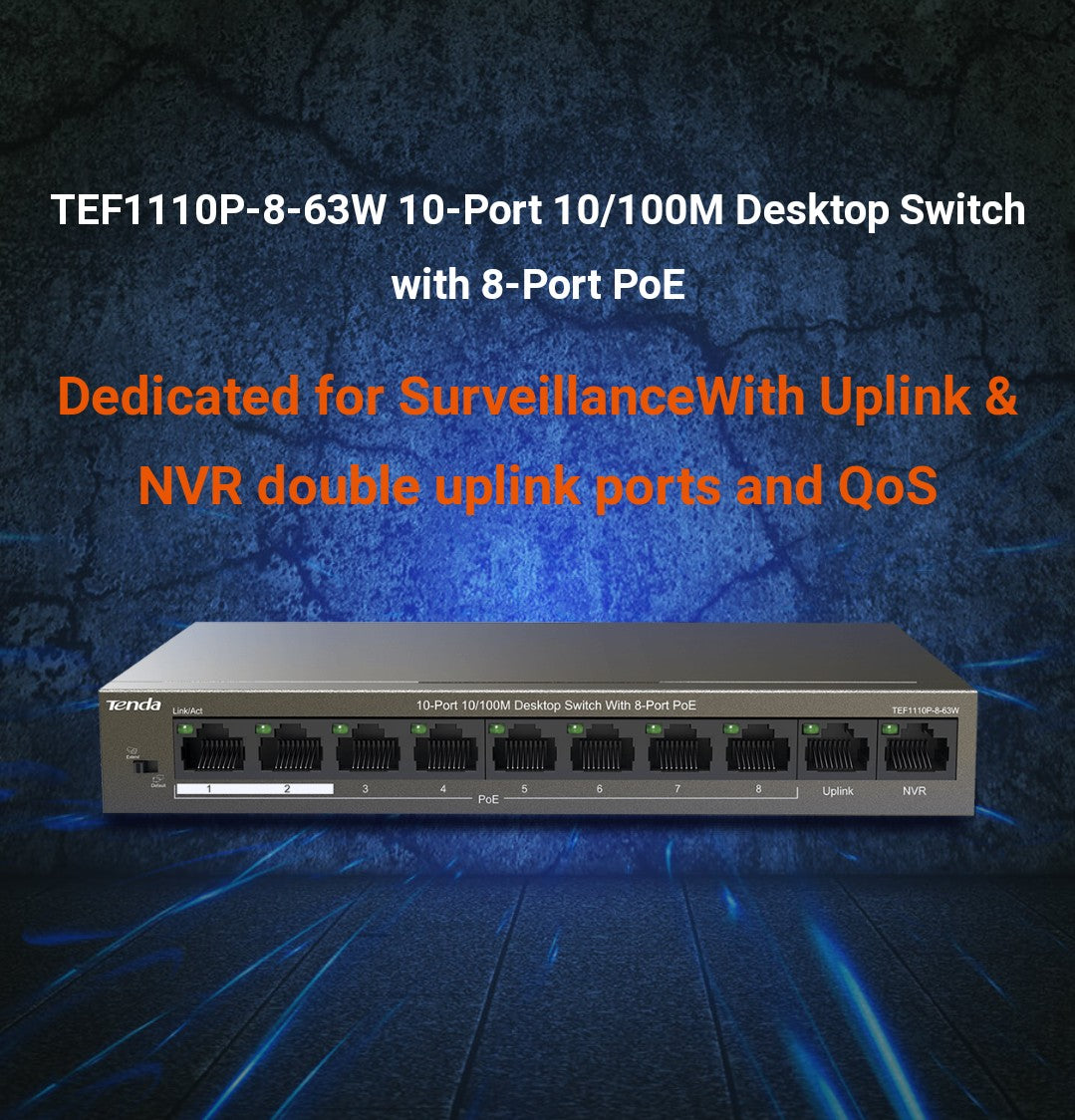

TEF1110P-8-63W 10-Port 10/100M Desktop Switch with 8-Port PoE +2 Uplink Port
SPECIFICATION:

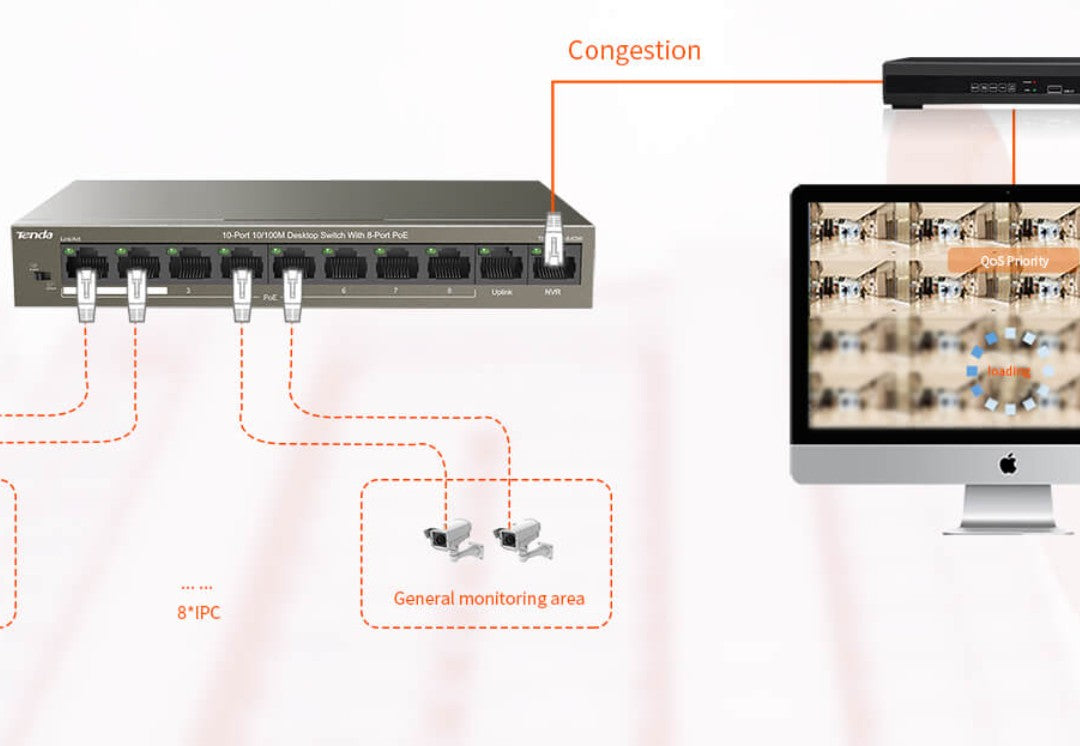

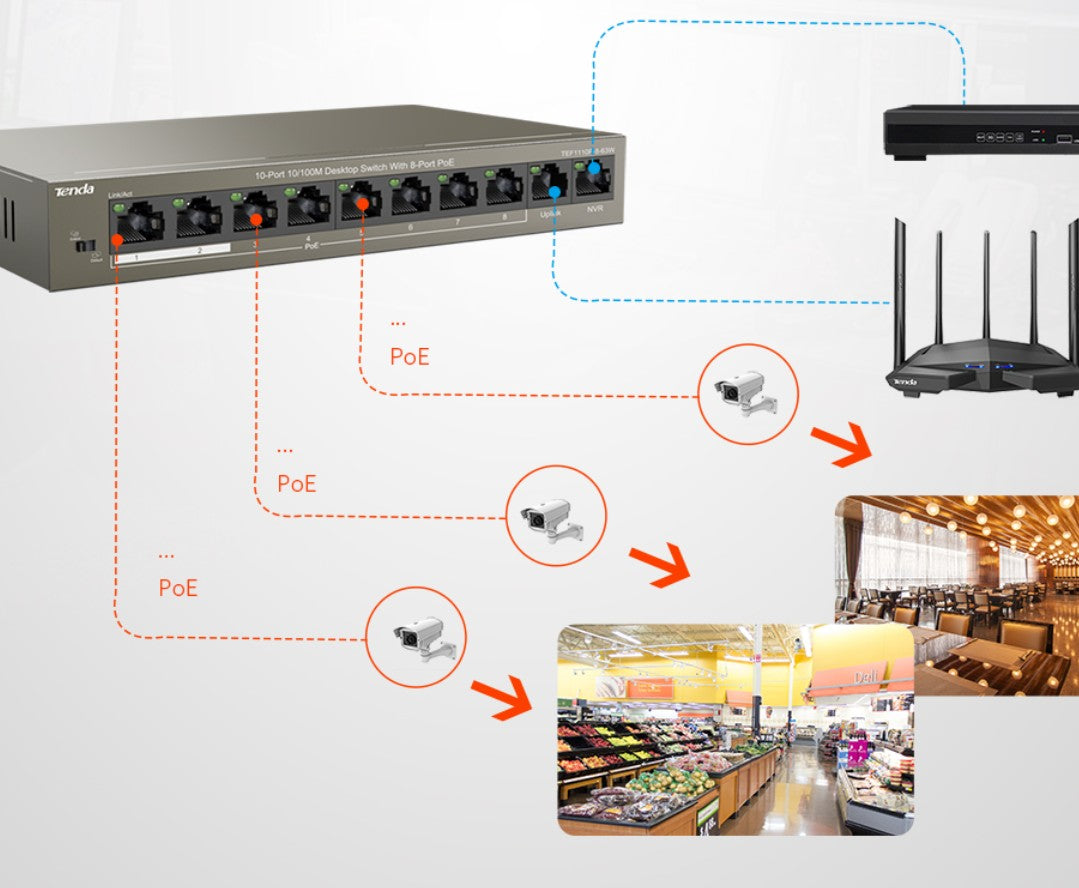

TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 58 W, and 30 W for a single port. Featured with extend mode, One-key VLAN and QoS functions, TEF1110P-8-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.

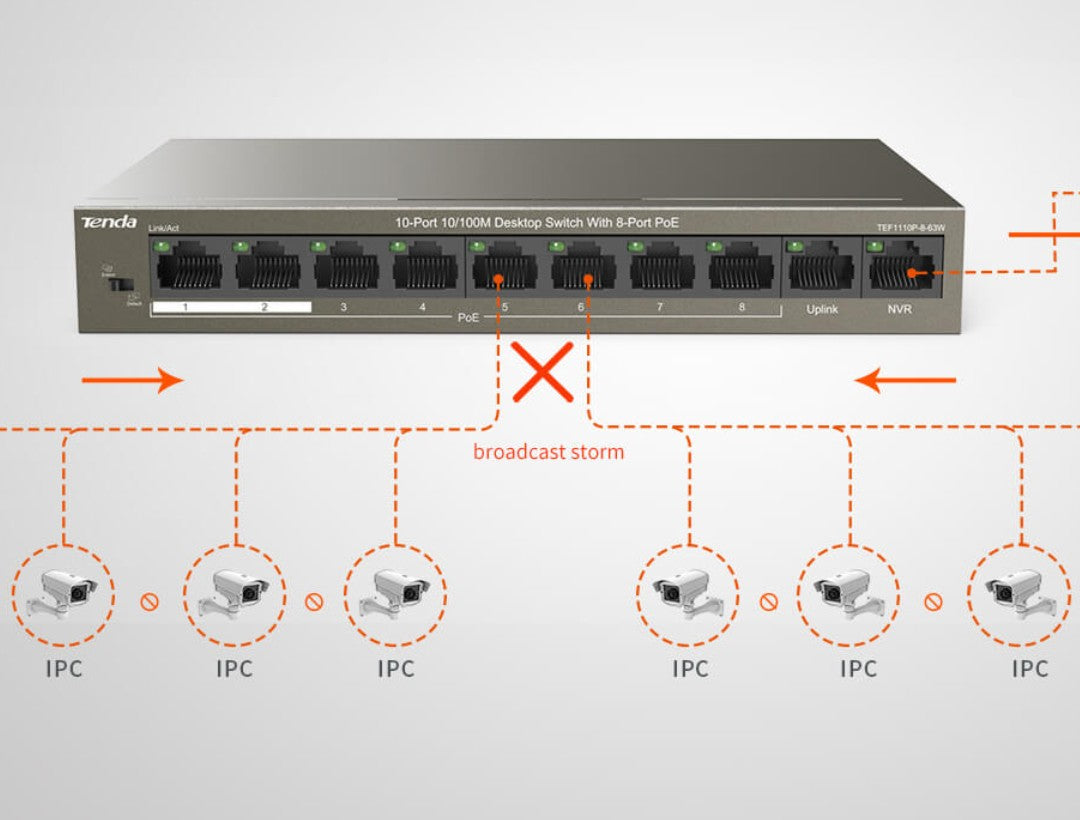

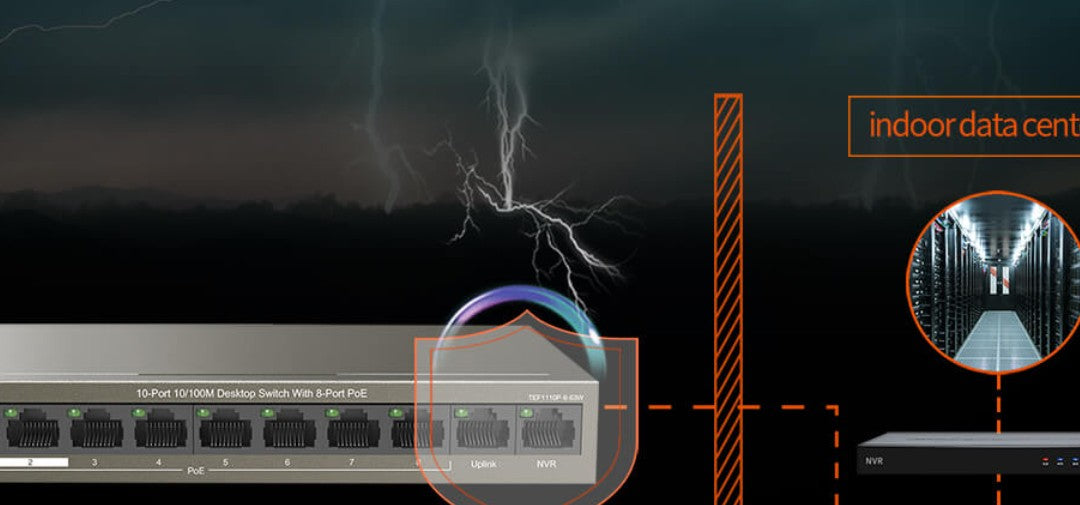

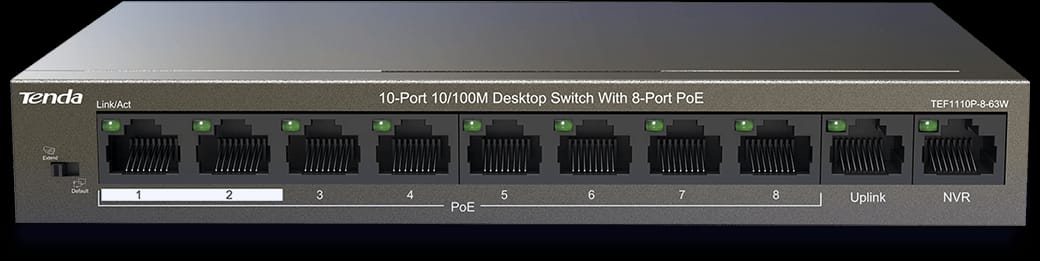

Network standardsIEEE 802.3/3u/3x, IEEE 802.3af/atLED Indicator10* Link/Ack LED indicators 1 * Power LED indicatorInterfaces8 * 10/100 Base-TX Ethernet ports (Data/Power) 2 * 10/100 Base-TX Ethernet ports (Data)Transmission mediaRecommended: CAT5/5e UTP or betterDimension177.5mmx104.0mmx26.0mmLevel of protectionLightning protection for ports: 6KV Lightning protection for power: 4KV ESD: Air discharge: ±10kV Contact discharge: ±8kVForwarding modeStore-and-forwardSwitch capacity1.6 GbpsPacket forwarding rate1.48MppsBuffer448KMAC address table1KPoE budgetSingle port: AF: 15.4W, AT: 30W Whole device: 58WPower consumption/Input voltage100－240V AC 50/60Hz 51V /1.25A DC（Power Adapter ）MountingDesktop mounting: support Wall mounting: support Rack mounting:non-supportEnvironmentOperating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensingCertificationFCC、CE、RoHSFuntionsDefault Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation. Extend Mode:VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).
