FEATURES:

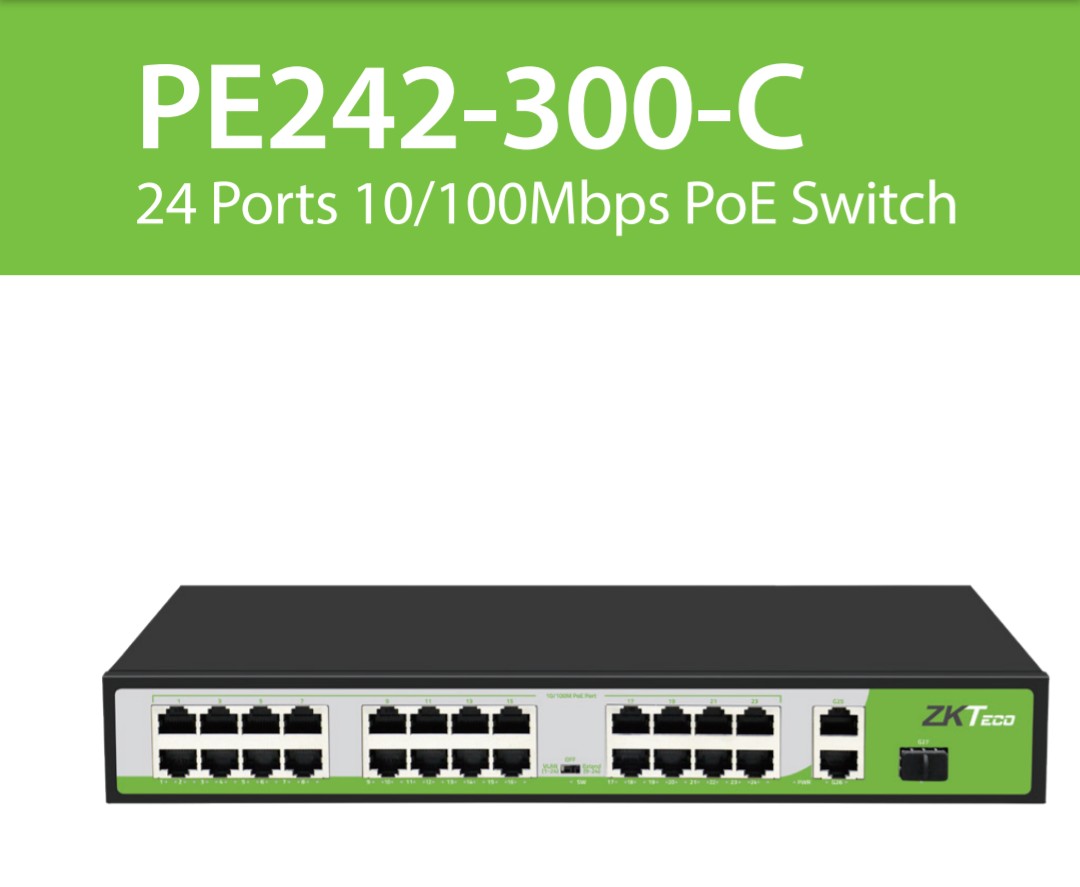

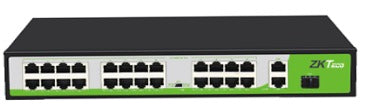

ZKTeco PE242-300-C 24 Ports 10/100Mbps PoE Switch

• Part Number: PE242-300-C
• 24*10/100M RJ-45(POE)+2*10/100M RJ-45+2*1000 SFP
• Conforms to IEEE 802.3,IEEE 802.3u and IEEE802.3af/at
• The max. PoE power output is 15.4 W (IEEE 802.3af)/ 30 W (IEEE 802.3at)
• 250 meters of PoE transmission distance of power and data (Cat 6 )
• MDI/MDIX self-adaptation
• Store-and-forward switching
• Lightning protection

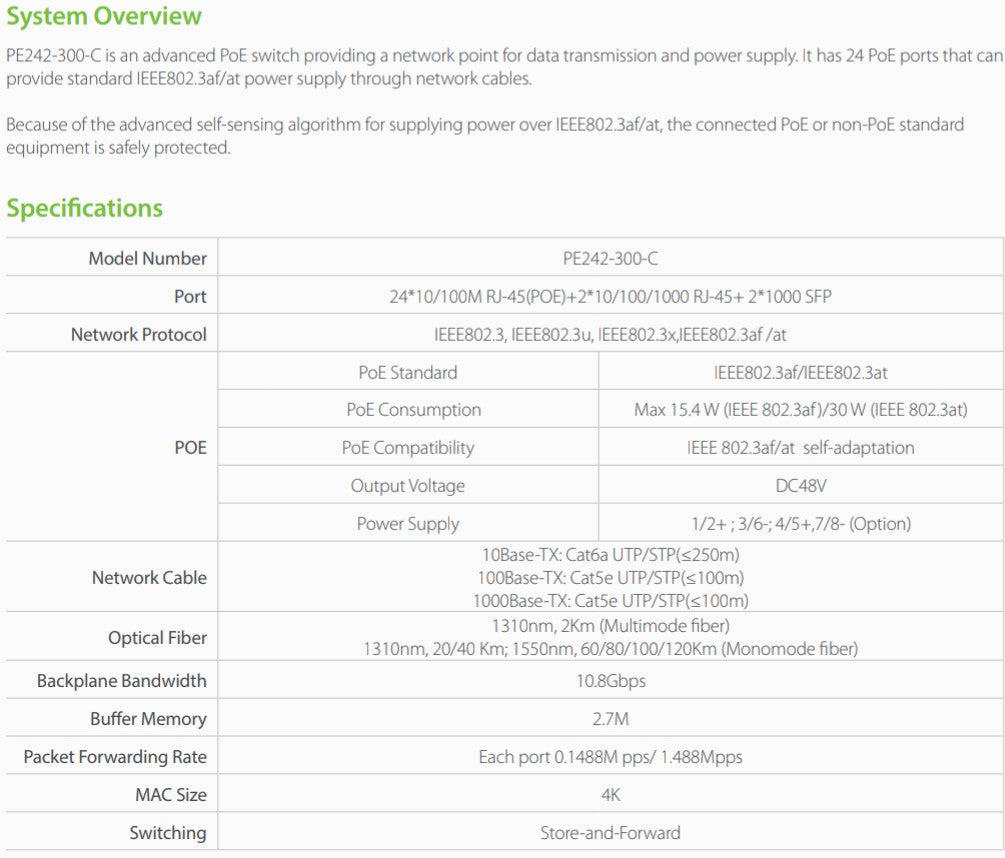

SPECIFICATIONS:

• Part Number: PE242-300-C
• Port 24*10/100M RJ-45(POE)+2*10/100/1000 RJ-45+ 2*1000 SFP
• Network Protocol IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3af /at
• POE
• PoE Standard: IEEE802.3af/IEEE802.3at
• PoE Consumption: Max 15.4 W (IEEE 802.3af)/30 W (IEEE 802.3at)
• PoE Compatibility: IEEE 802.3af/at  self-adaptation
• Output Voltage: DC48V
• Power Supply: 1/2+ ; 3/6-; 4/5+,7/8- (Option)
• Network Cable
• 10Base-TX: Cat6a UTP/STP(≤250m)
• 100Base-TX: Cat5e UTP/STP(≤100m)
• 1000Base-TX: Cat5e UTP/STP(≤100m)
• Optical Fiber: 1310nm, 2Km (Multimode fiber) 1310nm, 20/40 Km; 1550nm, 60/80/100/120Km (Monomode fiber)
• Backplane Bandwidth: 10.8Gbps
• Buffer Memory: 2.7M
• Packet Forwarding Rate Each: port 0.1488M pps/ 1.488Mpps
• MAC Size: 4K
• Switching: Store-and-Forward

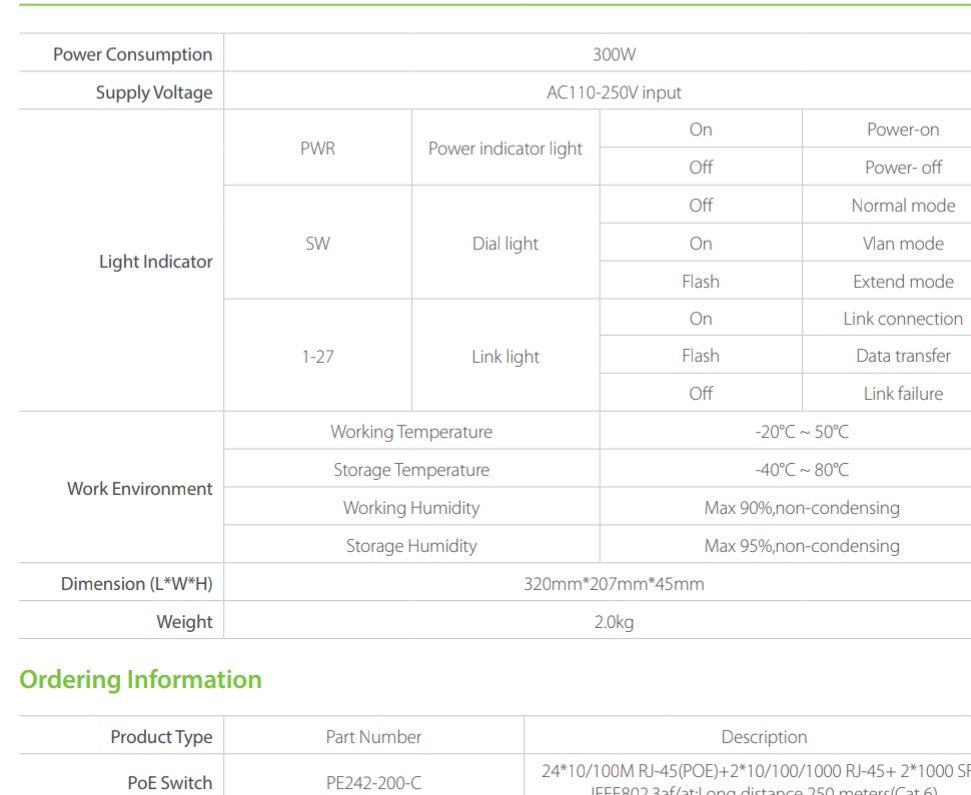

• Work Environment:
• Working Temperature: -20°C ~ 50°C
• Storage Temperature: -40°C ~ 80°C
• Working Humidity: Max 90%,non-condensing
• Storage Humidity: Max 95%,non-condensing
• Dimension (L*W*H): 320mm*207mm*45mm
• Weight: 2.0kg
• PoE Switch:
• PE242-200-C 24*10/100M RJ-45(POE)+2*10/100/1000 RJ-45+ 2*1000 SFP; IEEE802.3af/at;Long distance 250 meters(Cat 6)
